Molex Connectors

Various types of Molex connectors

Molex connectors are widely used in various electronic devices and systems, ranging from consumer electronics to automotive, industrial equipment, data communications, and medical devices. Molex connectors are capable of meeting the needs of different applications, including power connections, signal transmission, and data communication.

Search by Pitch

Molex Pico Clasp 1.0 mm Pitch Dual Row Connector Set

SCT1014 Series

Cross: Molex Pico-Clasp Connector
Pitch: 1.0mm

  • Circuits: 20, 30, 40
  • Current: 1.0A
  • Wire AWG: #28 – 32

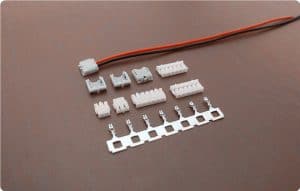

Molex PicoEZmate 1.2mm Pitch Connector Set

SCT1202 Series

Cross: Molex Connector
Pitch: 1.2mm

  • Circuits: 2 – 15
  • Current: 2.0A
  • Wire AWG: #30 – 36

SCT1251 Series

Cross: Molex PicoBlade Connector Pitch: 1.25mm

  • Circuits: 2 – 16
  • Current: 1.0A
  • Wire AWG: #28 – 32
Molex PanelMate 1.25mm Pitch Connector Series

SCT1254 Series

Cross: Molex PanelMate Connector
Pitch: 1.25mm

  • Circuits: 2 – 16,20,30
  • Current: 1.0A
  • Wire AWG: #28- 32
Molex Duo-Clasp 1.25mm Pitch Connectors Set

SCT12510 Series

Cross: Molex Duo-Clasp Connector
Pitch: 1.25mm

  • Circuits: 10 ,20, 30, 40
  • Current: 1.0A
  • Wire AWG: #26- 28
Molex Pico SPOX 1.5mm Pitch Connector Set

SCT1500 Series

Cross: Molex Pico-SPOX Connector
Pitch: 1.5mm

  • Circuits: 2 – 15
  • Current: 3.0A
  • Wire AWG: #24- 28
Molex MicroBlade 2.0mm Pitch Connector Set

SCT2002 Series

Cross: Molex MicroBlade Connector
Pitch: 2.0mm

  • Circuits: 2 – 15
  • Current: 2.0A
  • Wire AWG: #24 – 28
Molex DuraClik 2.0mm Pitch Wire to Board Connector Series

SCT2018 Series

Cross: Molex DuraClik Connector
Pitch: 2.0mm

  • Circuits: 2 – 15
  • Current: 3.0A
  • Wire AWG: #22 – 26
Molex CLIK-Mate 2.0mm Pitch Wire to Board Connector Series

SCT2023 Series

Cross: Molex CLIK-Mate Connector
Pitch: 2.0mm

  • Circuits: 2 – 16
  • Current: 3.0A
  • Wire AWG: #22 – 24

SCT2025 Series

Cross: Molex iGrid Connector
Pitch: 2.0mm

  • Circuits: 2*5 – 2*20
  • Current: 3.0A
  • Wire AWG: #22 – 28

SCT2513 Series

Cross: Molex SPOX 2.5 Connector
Pitch: 2.5mm

  • Circuits: 2 – 16
  • Current: 3.0A
  • Wire AWG: #22 – 28

SCT2520 Series

Cross: Molex Nano-Fit Connector
Pitch: 2.5mm

  • Circuits: 2 – 8, 2*2 – 2*8
  • Current: 8.0A
  • Wire AWG: #20 – 22

SCT2541 Series

Cross: Molex KK® 254 Connector
Pitch: 2.54mm

  • Circuits: 2 – 15
  • Current: 2.5A
  • Wire AWG: #22 – 26
Molex SL Modular Connector Set

SCT2544 Series

Cross: Molex SLâ„¢ Modular Connector
Pitch: 2.54mm

  • Circuits: 1 – 12 or 2*1-2*12
  • Current: 5.0A
  • Wire AWG: #18 – 24
Molex-Micro-Fit-Connector

SCT3001 Series

Cross: Molex Micro-Fit Connector
Pitch: 3.0mm

  • Circuits: 2 – 15
  • Current: 5.0A
  • Wire AWG: #18 – 24
Molex KK 396 Connector Series

SCT3960 Series

Cross: Molex KK 3.96mm Connector
Pitch: 3.96mm

  • Circuits: 2 – 15
  • Current: 5.0A
  • Wire AWG: #18 – 24
Molex SPOX 3.96mm Pitch Wire to Board Connector Series

SCT3962 Series

Cross: Molex SPOX 3.96 Connector
Pitch: 3.96mm

  • Circuits: 2 – 12
  • Current: 5.0A
  • Wire AWG: #18 – 24
Molex Mini-Fit Jr 4.2mm Pitch Wire to Board Connector Series

SCT4201 Series

Cross: Molex Mini-Fit Jr. Connector
Pitch: 4.2mm

  • Circuits: 2 – 12 or 2*1-2*12
  • Current: 9.0A
  • Wire AWG: #16 – 24
Molex KK 508 5.08mm Pitch Wire to Board Connector Series

SCT5080 Series

Cross: Molex KK 5.08 Connector
Pitch: 5.08mm

  • Circuits: 2 – 20
  • Current: 5.0A
  • Wire AWG: #18 – 24
Molex SPOX 5.08mm Pitch Wire to Board Connector Set

SCT5082 Series

Cross: Molex SPOX Connector
Pitch: 5.08mm

  • Circuits: 2 – 8
  • Current: 5.0A
  • Wire AWG: #18 – 22
Molex Disk Drive Power Connector Wire to Board Series

SCT5083 Series

Cross: Molex Disk Drive Power Connector
Pitch: 5.08mm

  • Circuits: 2 – 4
  • Current: 5.0A
  • Wire AWG: #16 – 24

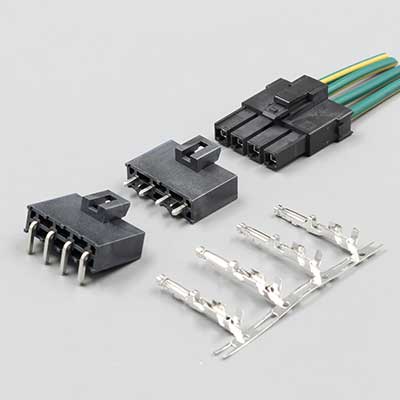

Molex Mega Fit 5.7mm Pitch Wire to Board Connector Series

SCT5701 Series

Cross Molex Mega-Fit Connector Series
Pitch: 5.7mm

  • Circuits: 2 – 8
  • Current: 23.0A
  • Wire AWG: #10 – 16

SCT5702 Series

Cross Molex Mega-Fit Connector Series
Pitch: 5.7mm

  • Circuits: 2*1 – 2*6
  • Current: 23.0A
  • Wire AWG: #10 – 16

Molex connectors are a type of electrical connector developed by the Molex company. They are widely used in various industries for connecting electrical wires and cables. Molex connectors are known for their reliability, durability, and versatility, making them popular in applications ranging from consumer electronics to automotive and industrial equipment.

These connectors typically consist of two main components: male and female connector housings. The male connector, often referred to as the plug, contains pins that mate with sockets in the female connector, also known as the receptacle. Molex connectors come in various sizes, pin configurations, and contact styles to accommodate different requirements.

Some common types of Molex connectors include:

1. Mini-Fit Jr.: This is a widely used connector series featuring a polarized design to prevent incorrect mating. It’s often used in computer power supplies, industrial equipment, and automotive applications.

2. Micro-Fit 3.0: Known for its high current-carrying capacity and compact size, Micro-Fit 3.0 connectors are commonly found in applications where space is limited, such as telecommunications equipment and consumer electronics.

3. KK: The KK series is a versatile connector system with a modular design, making it suitable for various wire-to-board and wire-to-wire applications. It’s often used in home appliances, automotive electronics, and industrial control systems.

4. SL: SL connectors are often used in applications requiring high-density connections, such as internal computer cabling, LED lighting, and medical devices.

5. MX150: This connector series is designed for harsh environments, featuring sealing properties to protect against dust, water, and other contaminants. MX150 connectors are commonly used in automotive, marine, and industrial applications.

6. Picoblade: Picoblade connectors are ultra-small and low-profile, making them ideal for applications where space is extremely limited, such as in handheld devices, drones, and wearable electronics.

These are just a few examples of the wide range of Molex connectors available in the market, each tailored to specific application requirements in terms of size, current rating, environmental conditions, and other factors.

Scondar can help you come through from ideas to products with our rich experience on OEM ODM connectors. Most of WTB connectors we listed below were replace of brand connectors like Molex, Jst, Hirose, Jae, AMP, Dupont and more. And we can also offer ORIGINAL connectors according to your request when you need cable assemblies.
