SCT2541 Series
SCT2541 series are replacement of KK254 connector, Mini-Latch Wire-to-Board System Connectors.provides a reliable interface for industry-standard 2.54mm wire-to-board applications.
Specification
| Series | SCT2541 Series |
|---|---|
| Contact Pitch | 2.5mm |
| No.of Contacts | 2 to 20 positions |
| Current | 3A (AWG #22 to #28) |
| Compatible | Cross Molex 2510 Connector Series |

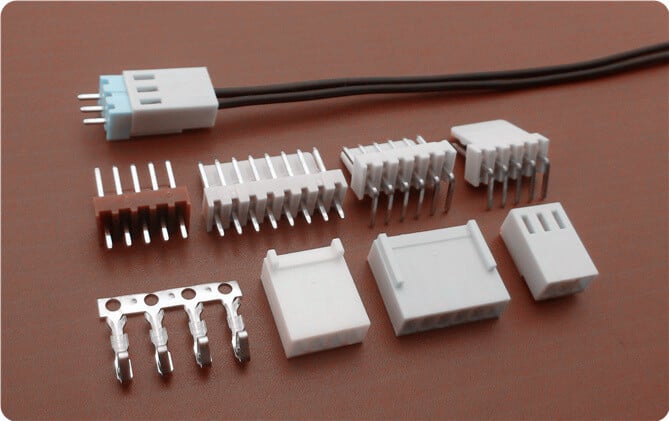

SCT2541 SERIES CONNECTORS
| Items | Part No. | Photo | Spec. |
|---|---|---|---|
| Male Housing | SCT2541MH-xxCBE109 | Drawing | |
| Female Housing | SCT2541FH-04B3CBK134 | Drawing | |
| Housing | SCT2541HA-xxCWT134 | Drawing | |
| Terminal | SCT2541FTPS109 | Drawing | Terminal | SCT2541MTPS134 | Drawing |
| Vertical Header | SCT2541WV-4P3KB | Drawing | |
| Vertical Header | SCT2541WV-xxC0BE108 | Drawing | |
| Right-angle Header | SCT2541WR-XXP | Drawing |

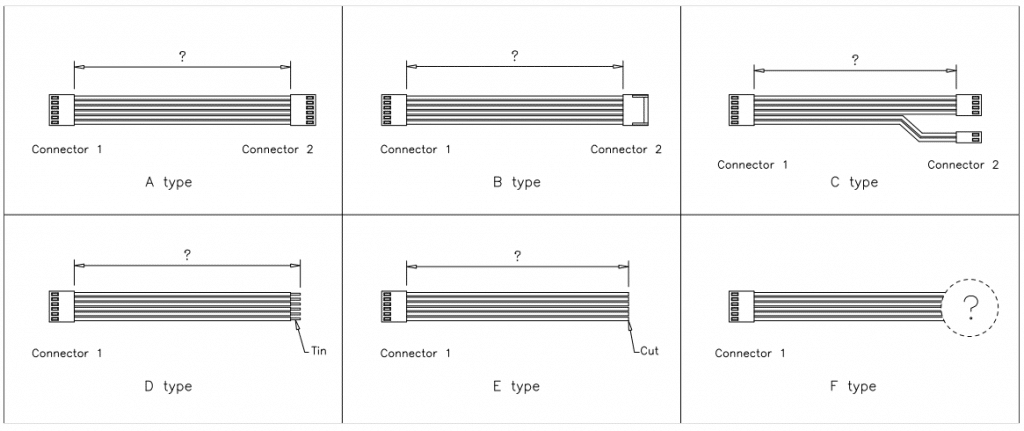

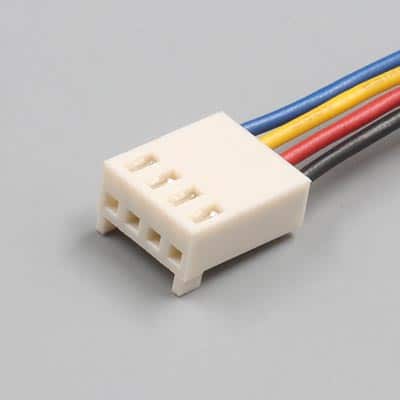

Cable Assemblies Refer
| Current Rating: | 3A |
| Voltage Rating: | 250V |
| Temperature Range: | -25°C~+85°C |
| Contact Resistance: | 20m Omega Max |
| Insulation Resistance: | 1000M Omega Min |
| Withstanding Voltage: | 1000V AC/minute |
