Wire to Wire Connectors

Our wire to wire connectors includes from 2mm pitch to over 6.3mm pitch. We’d like to offer competitive connectors and wire harness or cable assemblies compatible with brand one, like Molex, Jst, Yeonho, Dupont, Tyco and more.

Molex PicoBlade Wire to Wire Connector

SCT1251 Series

Cross:Molex PicoBlade
Pitch: 1.25mm

  • Circuits: 2 – 15
  • Current: 1A
  • Wire AWG: #28 – 32
Molex 2.00mm Wire to Wire Connector Series

SCT2008 Series

Cross: Molex 2.0mm
Pitch: 2.0mm

  • Circuits: 2 – 13
  • Current: 2.5A
  • Wire AWG: #24 – 30
JST JWPF 2.0mm Pitch Wire to Wire Connector Series

SCT2019 Series

Cross: JST JWPF Connector
Pitch: 2.0mm

  • Circuits:  2 – 4,2*3,2*4
  • Current: 3.0A
  • Wire AWG: #22 – 26
JST SM Connector 2.5mm Pitch Wire to Wire Connector Series

SCT2505 Series

Cross: JST SM Connector
Pitch: 2.5mm

  • Circuits: 2 – 12
  • Current: 3.0A
  • Wire AWG: #22 – 28
JST RCY Wire to Wire Connector Series

SCT2507 Series

Cross: JST RCY Connector
Pitch: 2.5mm

  • Circuits: 2
  • Current: 3.0A
  • Wire AWG: #22 – 28
Molex Mini Latch 2.5mm Pitch Wire to Wire Connector Series

SCT2508 Series

Cross: Molex Mini-Latch Connector
Pitch: 2.5mm

  • Circuits: 2 – 12
  • Current: 3.0A
  • Wire AWG: #22 – 28
Yeonho SMH250 2.5mm Pitch Wire to Wire Connector Series

SCT2509 Series

Cross: Yeonho SMH/SMP Connector
Pitch: 2.5mm

  • Circuits: 2 – 15
  • Current: 3.0A
  • Wire AWG: #22 – 28

SCT2543 Series

Cross: Dupont 2.54 Connector
Pitch: 2.5mm

  • Circuits: 1 – 40,2 * 1 – 2*40
  • Current: 3.0A
  • Wire AWG: #22 – 28
Molex SL 2.54mm Pitch Wire to Wire Connector Set

SCT2544 Series

Cross: Molex SL Connector
Pitch: 2.5mm

  • Circuits: 2 – 19,2*2 – 2*32
  • Current: 2.0A
  • Wire AWG: #22 – 28

SCT2546 Series

Cross: Dupont 2.54 Connector
Pitch: 2.54mm

  • Circuits: 3
  • Current: 3.0A
  • Wire AWG: #24 – 26
NAMZ ML-110 Wire to Wire Connector Series

SCT28050 Series

Cross: NAMZ ML-110 Connector
Pitch: 4.0/5.0mm

  • Circuits: 2, 3, 4, 6, 9
  • Current: 8.0A
  • Wire AWG: #18 – 24
Molex-Micro-Fit-Wire-to-Wire-Connector

SCT3001 Series

Cross: Molex Micro-Fit Connector
Pitch: 3.0mm

  • Circuits: 1 – 9
  • Current: 5.0A
  • Wire AWG: #18 – 26
Molex EconoLatch Connector Series

SCT3700 Series

Cross: Molex EconoLatch Connector
Pitch: 3.7mm

  • Circuits: 1 – 9
  • Current: 5.0A
  • Wire AWG: #18 – 26

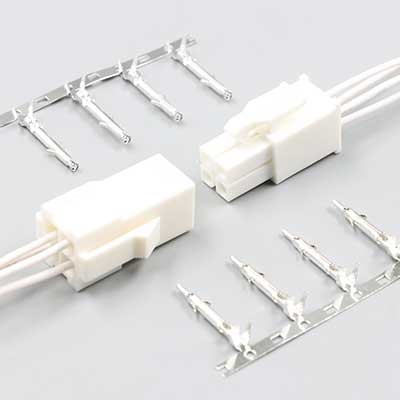

TE MINI UNIVERSAL MATE-N-LOK 4.14mm Pitch Wire to Wire Connector Series

SCT4140 Series

Cross: TE MINI UNIVERSAL MATE-N-LOK Connector
Pitch: 4.14mm

  • Circuits: 1 – 9
  • Current: 10.0A
  • Wire AWG: #18 – 26

SCT4201 Series

Cross: Molex Mini-Fit Jr Connector
Pitch: 4.2mm

  • Circuits: 2 – 15
  • Current: 6.0A
  • Wire AWG: #18 – 26
JST EL 4.5mm Pitch Wire to Board Triple Row Connector Set

SCT4500 Series

Cross: JST EL Connector
Pitch: 4.5mm

  • Circuits: 2 – 15
  • Current: 6.0A
  • Wire AWG: #18 – 26

SCT4501 Series

Cross: Minebea CL014 Connector
Pitch: 4.5mm

  • Circuits: 2 – 8
  • Current: 10.0A
  • Wire AWG: #18 – 26
JST YL 4.5mm Pitch Wire to Wire Connector Series

SCT4504 Series

Cross: JST YL Connector
Pitch: 4.5 mm

  • Circuits: 2-12,2*1-2*12
  • Current: 9.0A
  • Wire AWG: #16 – 24
Molex Disk Drive Power Connector Wire to Wire Series

SCT5083 Series

Cross: Molex Disk Drive Power Connector
Pitch: 5.08mm

  • Circuits: 2 – 4
  • Current: 5.0A
  • Wire AWG: #16 – 24

SCT60020 Series

Cross: SCT Connector
Pitch: 6.0/5.0mm

  • Circuits: 8,16
  • Current: 15.0A
  • Wire AWG: #18 – 26

SCT6200 Series

Cross: JST L6.2 Connector
Pitch: 6.2mm

  • Circuits: 2 – 15
  • Current: 10.0A
  • Wire AWG: #18 – 26

SCT6201 Series

Cross: Molex VersaBlade Connector
Pitch: 6.2mm

  • Circuits: 2 – 6
  • Current: 15.0A
  • Wire AWG: #16 – 20

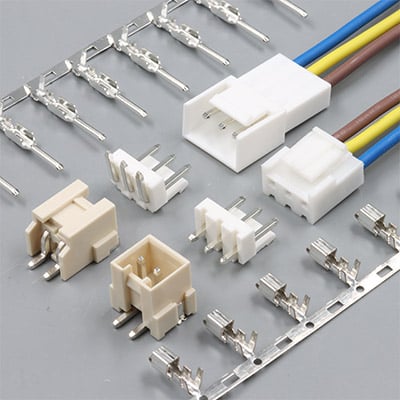

JST VL Wire to Wire Connector Set

SCT6203 Series

Cross: JST VL Connector
Pitch: 6.2mm

  • Circuits: 1, 2, 3, 4, 6
  • Current: 20.0A
  • Wire AWG: #14 – 18
Molex MLX Power Connectors Set

SCT63080 Series

Cross: Molex MLX™ Power Connector
Pitch: 6.3mm

  • Circuits: 2 – 15
  • Current: 13.0A
  • Wire AWG: #18 – 22

SCT6700 Series

Cross: Standard .093" Pin and Socket
Pitch: 6.7mm

  • Circuits: 2 – 15
  • Current: 8.0 – 12A
  • Wire AWG: #16 – 20

SCT63090 Series

Cross: 250# Connector
Pitch: 6.0/9.0mm

  • Circuits: 2, 3, 4, 6
  • Current: 12.0A
  • Wire AWG: #14 – 18

SCTISO-20P Series

Cross: SCT Connector
Pitch: 3.48mm

  • Circuits: 20
  • Current: 15.0A
  • Wire AWG: #16 – 20

SCT2005 Series

Cross: JAE 2.0mm
Pitch: 2.0mm

  • Circuits: 2 – 13
  • Current: 2.5A
  • Wire AWG: #24 – 30

High-Quality, Affordable Wire-to-Wire Connectors



Scondar’s Collection of Electronic Wire-to-Wire Connectors Fit for Your Needs

A Home for Cost-Saving, ODM/OEM Electronic Connectors Likened to Molex, JST, AMP and Dupont

Multiple wire-to-wire connector types, whether it’s a 2-pin or a 4-pin wire-to-wire connector you need, are supplied by Scondar at the highest quality and with compliance with ROHS standards and other safety regulatory standards. Scondar’s wire-to-wire connectors are manufactured in China also giving you the lowest possible prices. Whether it’s a JST, Molex, Amp or Dupont wire-to-wire connector you’re looking for, we can provide!

Multiple Options for Wire-to-Wire Cable Assemblies

Scondar specializes in custom cable assembly, overmolded, IDC, discrete wire/crimp harnesses and cable looms.

A Variety of Pitches to Choose From

Wire-to-wire connectors includes from 2mm pitch to over 6.3mm pitch.

Options available for custom wire harness

Scondar has a wide range of wire harness options such as a variety of wire diameters, twisted wire pair, jacketed multicore, shielded and many other options. Custom-packaged assemblies are also offered to meet customers’ specifications.

Benefits of Scondar’s Wire-to-Wire Connectors:

Wide Variation in Number of Circuits

There are a number circuits ranging from 1 up to 15 to choose from, making allowing adaptable power delivery for various system requirements.

Friction Lock and Crimped-Style Lock Mechanism

Intendedly manufactured for combining both flexibility and reliability, these low-profile connectors are equipped with a friction lock and crimped-style lock mechanism for safe fastening and removal of the wires from the board.

The crimps are well engineered to be air-tight, preventing oxygen and moisture from reaching the metals, causing corrosion. Thus, the connector can be easily removed from the head without holding the wires.

Designed for Blind-Mating Applications

They are designed for blind-mating applications for single and dual row such as consumer white goods, office equipment, industrial automation equipment, industrial networks, rack-mount servers, routers and switches.

Pre-Plated phosphor bronze contact material

Provides excellent spring performance with high fatigue and corrosion resistance.

Terminal Protection Assurance (TPA) Technology

Utilizing Terminal Protection Assurance(TPA) Technology, Scondar manufactures wire-to-board connectors with enhancements in its connector housing and contact design to help prevent connection failure.

Equipped with Reduced Mating Force (RMF) Solutions

The different wire-to-wire connector types are equipped with RMF solutions for lower friction solution between the contacts of the device and the socket, making insertion and removal of the device easier, while at the same time eliminating the need for the complex mechanisms such as in ZIF sockets.

Offering Extensive Customer Care and Wire-to-Wire Cable Assembly Service

Scondar has a group of professionals specializing in electronic wire connections. They offer wire-to-wire cable assembly service to their clients, delivering your projects into the next level with great customer care and service reliability.
