VersaBlade 6.2mm Pitch Connectors

SCT6201 Series

SCT6201 Series are compatible with Molex VersaBlade 6.2mm pitch series wire to wire connectors.

Specification

Series SCT6201 Series
Contact Pitch 6.2mm
No.of Contacts 2 to 6 positions
Current 15A (AWG #16 to #20)
Compatible Cross Molex 35150/35151 Connector Series
Item Spec.
Part No. SCT6201
Compatible: Molex 35150/35151 series connector
Pitch - Mating Interface 6.2mm
Circuits 2-6
Applicable wire: AWG#16-#20 (Max.OD:3.1mm)
Current Rating: 15A
Voltage Rating: 300V
Temperature Range: -25°C~+85°C
Contact Resistance: 10m Omega Max
Insulation Resistance: 1000M Omega Min
Withstanding Voltage: 1500V AC/minute

Molex VersaBlade 6.2mm Pitch Wire-to-Wire Connector

SCT6201 Series is Scondar’s Line of Reliable 6.2mm Pitch Wire-to-Wire Connectors Likened to the Molex Brand

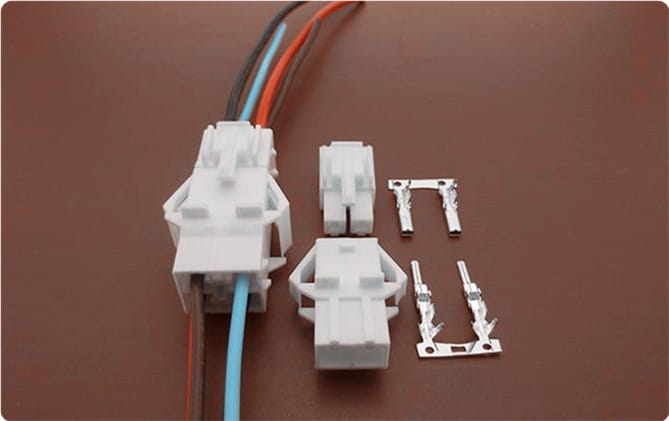

Scondar offers SCT6201 Series, a replacement and cheaper alternative of the Molex VersaBlade L6.2mm pitch wire-to-wire connector. Scondar SCT6201 comes in a complete package: The male housing, female/receptacle housing, female and male terminal, all manufactured with precision-fitting and durability ensuring accurate mating.

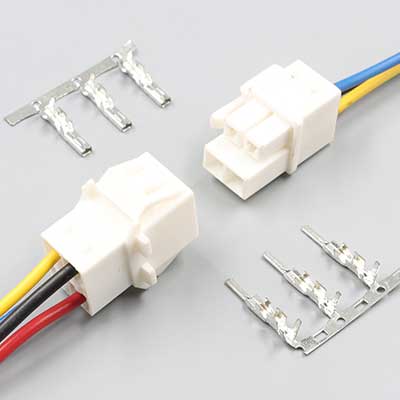

Scondar’s 6.2 mm Pitch connector is composed of the wide flat blade tab terminals (1.78mm), multi-configured modular housing and terminal position assurance inserts for modularity and design flexibility in many applications. Also, Scondar showcases other features such as positive lock and TPA secondary lock, single row system and spring style mounting ears.

The SCT6201 is compatible with AWG 14-22 wire and can handle 4 to 15 amps and 300 volts, depending upon the design characteristics. With this capability, this provides you to use it to connect both signal and power.

Features

Color-coded housings and terminals

With options for color coding, you can easily identify and manage the connections when color matching of housing and wires are done. This can significantly help for easy installation and easy cable management.

Most HVAC applications typically utilize similarly-configured wire-to-wire connectors. With color coding, incorrect connector insertion and mismating can be prevented.

Molded dimple for ease of mating and orientation identification

WIth a molded dimple, Scondar can offer reliable mating of connections. The dimple will serve as a visible mating guidance for its ease of assembly, and will prevent connection misorientation.

Reliable Polarization Feature and Easy Harness Assembly

The 6.2mm pitch wire connector also offers harness design options for design flexibility according to your needs, and features Easy Harness Assembly to reduce time and cost during installation.

Reliable TPA Feature

The variety of Terminal Position Assurance (TPA) types, not only facilitates correct mating, but also gives the insurance that terminals are fully locked in the correct position.

Rugged consumer and medical application

This can be used to applications subject to shock, vibration or rough handling that can dislodge terminals and cause signal interference.

Friction and positive-lock options

Built with friction and positive lock options, this connector provides high-retention force for a reliable connection in rugged environments.

Spring-Type Mounting Ears

An optional snap-in mounting ears enables the connector to be configured to panel-mounted, feed-through types of connections.

High Current Carrying Capabilities

The support for high voltage and current (300V/15A) features a more robust build than blanked terminals.

Accept both male and female terminals

The housing will accept both male and female terminals, and are polarized to eliminate and prevent mismating.

Facilitates heat dissipation and low engagement force

The different wire-to-wire connector types are equipped with RMF solutions for lower friction solution between the contacts, making insertion and removal of the device easier, while eliminating the need for complex mechanisms.

Application

The system provides design flexibility and modularity for a variety of appliances such as White Goods/HVAC applications: refrigerators, washing machines, heating units, and ventilators.

  • Consumer
  • Air conditioner
  • Air purifier / dehumidifier
  • Copiers
  • Fitness Equipment
  • Microwave oven
  • Printers
  • Refrigerator
  • Washing Machine
  • Data/Computing
  • Copiers
  • Medical
  • Medical equipment

Material and Packaging of Molex VersaBlade 6.2mm Pitch Wire-to-Wire Connector

Using a UV-Resistant Thermoplastic Material for Enhanced Connector Performance

The housing components are injection molded Nylon66,UL 94V-0. These are scientifically proven to resist UV-radiation than normal plastic, making sure the connectors are well-protected, reducing risk for early degradation and increased cycles/minute of the connector subjected to harsh environments.

Tape and Reel Packaging for SMT Components

Scondar uses a state-of-the-art tape and reel equipment to package a variety of components.

The tape and reel packaging strip has accurately sized cavities for the terminal height, width and depth, secured tightly, maintaining consistent position during transportation.

You can expect that your wire-to-wire connector package is undisturbed during the trip and has maintained its vitality even during your production stages, which is why a lot of our customers has raved about our product for both cheaply-priced and, at the same time, resembles the Molex VersaBlade 6.2mm pitch wire-to-wire product in performance and quality.

The complete package will include the following:

Female terminal: 10,000 pcs/reel, brass material and tin-plated finish
Male terminal: 10,000 pcs/reel, brass material and tin-plated finish
Female Housing (Nylon 66, UL94V-0 500): 1000pcs/bag
Male Housing (Nylon 66, UL94V-0 500): 1000pcs/bag
