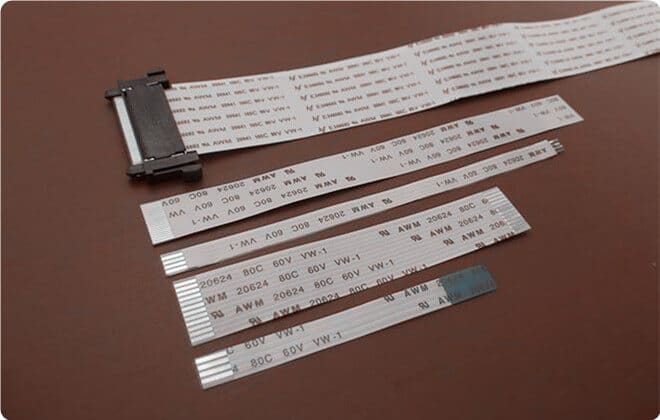

Flexible Flat Cable (FFC) is a type of cable composed of multiple conductors arranged in parallel, widely used in electronic devices. Due to its unique structure and flexibility, FFC has become an essential connection method in modern electronics. This article provides an in-depth overview of FFC cables, covering their critical pitch and type classifications, key features, common applications, and advantages.

FFC Cable Pitch Selection

The pitch of an FFC cable, which refers to the distance between adjacent conductors, is a crucial parameter in its design and application. Common pitches include:

• 0.5mm: This pitch is suitable for high-density connections, often found in compact electronic devices like smartphones, tablets, and other small gadgets where space is at a premium.
• 1.0mm: This is a common pitch used in a variety of general-purpose electronic devices, such as home appliances and laptops, balancing density and ease of handling.
• 1.25mm: This pitch is chosen for applications that require higher current-carrying capacity or greater mechanical strength, making it ideal for more robust electronic components.

The choice of pitch depends on the specific design requirements of the device, including space constraints, electrical performance, and the mechanical strength needed.

FFC Cable Type Classification

FFC cables are classified into several types based on the arrangement of contacts and reinforcement tape configurations:

1.Type A:

• • Contact Arrangement: Contacts on the same side.
  • Reinforcement Tape: Reinforcement tapes are fully adhered to the insulation on the back of the contacts.
  • Application: Suitable for scenarios requiring stable mechanical support.

2.Type B:

• • Contact Arrangement: Contacts on both sides.
  • Reinforcement Tape: Reinforcement tapes are fully adhered to the insulation on the back of the contacts.
  • Application: Suitable for dual-side connections, such as between double-sided PCB boards.

3.Type C:

• • Contact Arrangement: Contacts on the same side.
  • Reinforcement Tape: One part of the reinforcement tape adheres to the contacts, while the other part adheres to the insulation.
  • Application: Ideal for scenarios requiring additional protection in the contact area.

4.Type D:

• • Contact Arrangement: Contacts on both sides.
  • Reinforcement Tape: One part of the reinforcement tape adheres to the contacts, while the other part adheres to the insulation.
  • Application: Suitable for applications needing both mechanical support and flexibility.

5.Type E:

• • Reinforcement Tape: No reinforcement tape.
  • Application: Used in lightweight applications where mechanical support is not required.

6.Type F:

• • Reinforcement Tape: One end has reinforcement tape, while the other end does not, and the reinforcement tape is fully adhered to the insulation on the back of the contacts.
  • Application: Used in scenarios where one end requires mechanical support, and the other requires more flexibility.

7.Type G:

• • Contact Arrangement: Contacts on the same side.
  • Reinforcement Tape: One part of the reinforcement tape adheres to the contacts, while the other part does not adhere to the insulation.
  • Application: Suitable for applications requiring partial flexibility and partial stability.

Key Features of FFC Cables

FFC cables have several notable features:

1. Flexibility: FFC cables are highly flexible, allowing them to bend and fold easily. This makes them ideal for connections in applications where movement or bending is frequent, such as in printers connecting the print head or in mobile cameras.
2. Flat Design: The flat shape of FFC cables minimizes the space they occupy, making them perfect for use in devices with limited internal space, such as laptops, tablets, and smartphones.
3. Multiple Conductor Arrangement: The conductors in FFC cables are arranged in parallel, allowing for simultaneous transmission of multiple signals, which is essential for connecting complex circuits.
4. Lightweight: FFC cables are lighter than traditional round cables, which helps reduce the overall weight of the device, especially in portable electronics.
5. Customizability: FFC cables can be customized in terms of length, number of conductors, pitch, and termination methods, providing great flexibility in design.

Applications of FFC Cables

FFC cables are used in a variety of electronic devices, primarily in the following areas:

• Consumer Electronics: FFC cables are used to connect internal modules such as displays, keyboards, and batteries in devices like smartphones, tablets, laptops, and LCD screens.
• Home Appliances: FFC cables are used in printers, scanners, televisions, and audio systems for connecting moving parts or modules.
• Automotive Electronics: FFC cables are used in car navigation systems, infotainment systems, and dashboards to connect displays and control modules.
• Medical Devices: FFC cables are used in ultrasound machines, electrocardiographs, and other medical devices that require lightweight, flexible connections.

Advantages of FFC Cables

FFC cables offer several advantages:

1. Space Efficiency: Their flat and compact design allows FFC cables to make complex electrical connections in confined spaces.
2. High Flexibility: The flexibility of FFC cables makes them suitable for dynamic environments where frequent movement or bending occurs, reducing the risk of breakage or damage due to mechanical stress.
3. Ease of Installation: FFC cables are often equipped with connectors, making installation simple and reducing the complexity associated with traditional soldered connections.
4. Cost-Effectiveness: FFC cables are cost-effective due to their low material cost and simple manufacturing process, making them a good choice for large-scale applications.
5. High-Density Signal Transmission: FFC cables support the tight arrangement of multiple conductors, enabling high-density signal transmission in limited spaces, suitable for high-speed data transfer and complex circuits.

Conclusion

FFC cables, with their unique flexibility, lightweight nature, and efficient space utilization, play a critical role in modern electronic devices. By carefully selecting the appropriate pitch and type, designers can ensure optimal performance in specific applications, meeting the varied connection needs of different devices. Understanding the various characteristics and classifications of FFC cables is key to enhancing the overall performance and reliability of electronic systems.
