SCT2544 Series

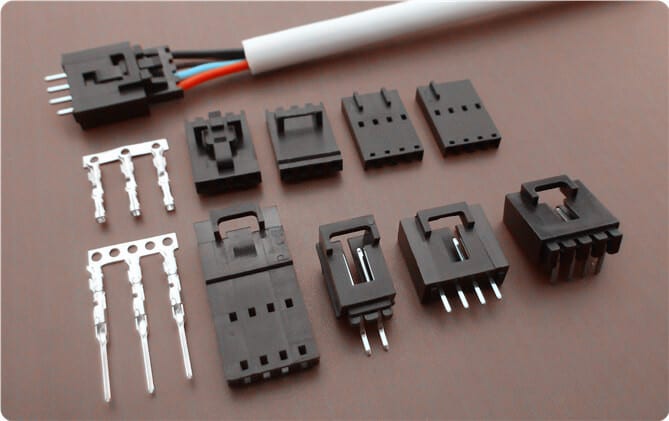

SCT2544 series are replacement of Molex SL™ Modular Connectors.Aeemblies are ideal for low-power and signal wire to board and wire to wire applications.
Specification
| Series | SCT2544 Series |
|---|---|
| Contact Pitch | 2.5mm |
| No.of Contacts | 2 to 15 positions |
| Current | 2.5A (AWG #22 to #26) |
| Compatible | Cross Molex 70066/70107 Connector Series |
Previous
Next
Select Components
Male Housing
Male Housing
Female Housing
Male Terminal
Female Terminal
Vertical Header
Right-Angle Header
SMD Right-Angle Header
SCT2544 SERIES CONNECTORS
| Items | Part No. | Photo | Spec. |
|---|---|---|---|
| Male Housing | SCT2544H-XXP | |
Drawing |
| Male Housing | SCT2544HA-XXP | |
Drawing |
| Male Housing | SCT2544HB-XXP |  |
Drawing |
| Male Housing | SCT2544HA-2xXXP | |
Drawing |
| Male Housing | SCT2544HB-2xXXP | |
Drawing |
| Male Housing | SCT2544HC-2xXXP | |
Drawing |
| Male Housing | SCT2544HD-2xXXP | |
Drawing |
| Female Housing | SCT2544FH-XXP | |
Drawing |
| Male Terminal | SCT2544MT | |
Drawing |
| Female Terminal | SCT2544FT | |
Drawing |
| SMD Right-angle Socket | SCT2544WR-S-XXP | |
Drawing |
| Right-angle Header | SCT2544WR-XXPC | |
Drawing |
| Right-angle Header | SCT2544WRA-2xXXP | |
Drawing |
| Vertical Header | SCT2544WV-XXP | |
Drawing |
| Vertical Header | SCT2544WV-2xXXPC | |
Drawing |
| Vertical Header | SCT2544WVA-2xXXP | |
Drawing |

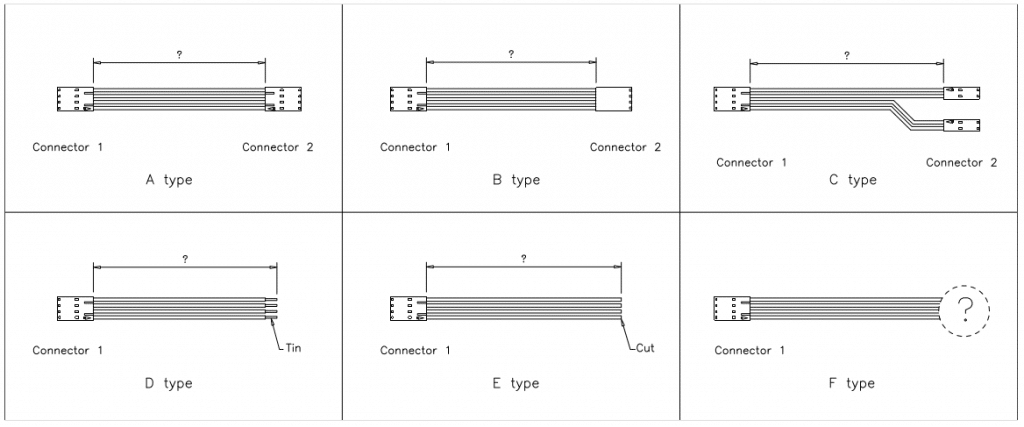

Cable Assemblies Refer
| Current Rating: | 2.5A |
| Voltage Rating: | 250V |
| Temperature Range: | -25°C~+85°C |
| Contact Resistance: | 20m Omega Max |
| Insulation Resistance: | 1000M Omega Min |
| Withstanding Voltage: | 1000V AC/minute |
