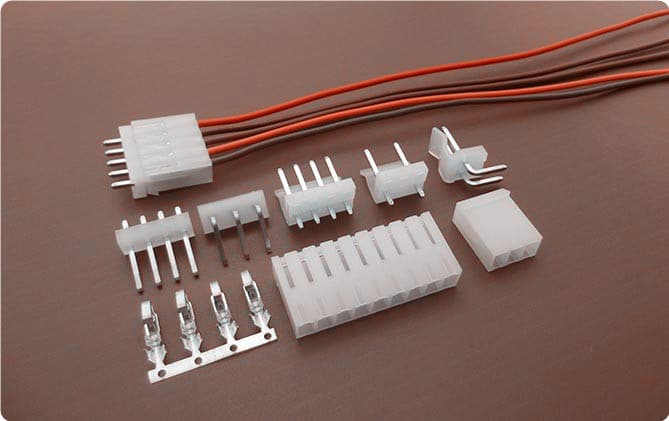

KK 3.96mm Pitch Connectors

SCT3960 Series

SCT3960 series are replacement of Molex KK® 396 Connector System. are ideal for low- to mid-power wire-to-board and board-to-board applications.

Specification

SeriesSCT3960 Series
Contact Pitch3.96mm
No.of Contacts2 to 15 positions
Current5A (AWG #18 to #24)
CompatibleCross Molex 2139/3069 Connector Series

Select Components

Housing

Housing without Flange

Terminal

Vertical Header

Right-Angle Header

SCT3960 SERIES CONNECTORS

Items Part No. Photo Spec.
Housing SCT3960H-xxCNA119  Drawing
Housing SCT3960HA-xxCNA119  Drawing
Terminal SCT3960TBS112  Drawing
Vertical Header SCT3960WV-xxC0NA102  Drawing
Right-angle Header SCT3960WR-xxCONA102  Drawing

Cable Assemblies Refer

Current Rating:5A
Voltage Rating:250V
Temperature Range:-25°C~+85°C
Contact Resistance:20m Omega Max
Insulation Resistance:1000M Omega Min
Withstanding Voltage:1500V AC/minute

Part No. Cross reference

SCONDAR P/NMolex 2139Engineer P/NMolex 2139Engineer P/NMolex 3069Engineer P/NMolex 41695Engineer P/N
3960H-02P095030212139-2A095070212139-2C099302003069-G020950802041695-N-A02
3960H-03P095030312139-3A09507031 2139-3C099303003069-G030950803041695-N-A03
3960H-04P095030412139-4A09507041 2139-4C099304003069-G040950804041695-N-A04
3960H-05P095030512139-5A09507051 2139-5C099305003069-G050950805041695-N-A05
3960H-06P095030612139-6A09507061 2139-6C099306003069-G060950806041695-N-A06
3960H-07P095030712139-7A09507071 2139-7C099307003069-G070950807041695-N-A07
3960H-08P0950308A2139-8A09507081 2139-8C099308003069-G080950808041695-N-A08
3960H-09P095030912139-9A09507091 2139-9C099309003069-G090950809041695-N-A09
3960H-10P0950310A2139-10A09507101 2139-10C099310003069-G100950810041695-N-A10
3960H-11P095031112139-11A09507111 2139-11C099311003069-G110950811041695-N-A11
3960H-12P095031212139-12A09507121 2139-12C099312003069-G120950812041695-N-A12
3960H-13P095031312139-13A09507131 2139-13C099313003069-G130950813041695-N-A13
3960H-14P095031412139-14A09507141 2139-14C099314003069-G140950814041695-N-A14
3960H-15P095031512139-15A09507151 2139-15C099315003069-G150950815041695-N-A15
3960H-16P095031612139-16A09507161 2139-16C099316003069-G160950816041695-N-A16
3960H-17P095031712139-17A09507171 2139-17C099317003069-G170950817041695-N-A17
3960H-18P095031812139-18A09507181 2139-18C099318003069-G180950818041695-N-A18
3960H-19P095031912139-19A09507191 2139-19C099319003069-G190950819041695-N-A19
3960H-20P095032012139-20A09507201 2139-20C099320003069-G200950820041695-N-A20
3960H-21P095032112139-21A09507211 2139-21C099321003069-G210950821041695-N-A21
3960H-22P095032212139-22A09507221 2139-22C099322003069-G220950822041695-N-A22
3960H-23P095032312139-23A09507231 2139-23C099323003069-G230950823041695-N-A23
3960H-24P095032412139-24A09507241 2139-24C099324003069-G240950824041695-N-A24
SCONDAR P/NMolex 6838Engineer P/NMolex 7258Engineer P/NMolex 45570
SCT3960-TP085001896838-(P909)L085201247258-A(P909)455703000
SCT3960-TP085201126838-A(P909)085201257258-A(P909)L455703002
SCT3960-TP085201136838-A(P909)L085601237258-A(P558)455703004
SCT3960-TP085801116838-A(P561)L085601247258-A(P558)L455703050
SCT3960-TP085801876838-A(P558)086501217258-A(P561)455703052
SCT3960-TP085801896838-A(P558)L086501227258-A(P561)L455703054
SCONDAR P/N Molex 41791 Engineer P/N Molex 41791 Engineer P/N Molex 41791 Molex 41791
3960WV-02P 26604020 417910002 26614020 417910019 417910832 417910849
3960WV-03P 26604030 417910003 26614030 417910020 417910833 417910850
3960WV-04P 26604040 417910004 26614040 417910021 417910834 417910851
3960WV-05P 26604050 417910005 26614050 417910022 417910835 417910852
3960WV-06P 26604060 417910006 26614060 417910023 417910836 417910853
3960WV-07P 26604070 417910007 26614070 417910024 417910837 417910854
3960WV-08P 26604080 417910008 26614080 417910025 417910838 417910855
3960WV-09P 26604090 417910009 26614090 417910026 417910839 417910856
3960WV-10P 26604100 417910010 26614100 417910027 417910840 417910857
3960WV-11P 26604110 417910011 26614110 417910028 417910841 417910858
3960WV-12P 26604120 417910012 26614120 417910029 417910842 417910859
3960WV-13P 26604130 417910013 26614130 417910030 417910843 417910860
3960WV-14P 26604140 417910014 26614140 417910031 417910844 417910861
3960WV-15P 26604150 417910015 26614150 417910032 417910845 417910862
3960WV-16P 26604160 417910016 26614160 417910033 417910846 417910863
3960WV-17P 26604170 417910017 26614170 417910034 417910847 417910864
3960WV-18P 26604180 417910018 26614180 417910035 417910848 417910865
SCONDAR P/N Molex 3190 Engineer P/N
3960WV-02P 26192021 319002A
3960WV-03P 26192031 319003A
3960WV-04P 26192041 319004A
3960WV-05P 26192051 319005A
3960WV-06P 26192061 319006A
3960WV-07P 26192071 319007A
3960WV-08P 26192081 319008A
3960WV-09P 26192091 319009A
3960WV-10P 26192101 319010A
3960WV-11P 26192111 319011A
3960WV-12P 26192121 319012A
3960WV-13P 26192131 319013A
3960WV-14P 26192141 319014A
3960WV-15P 26192151 319015A
3960WV-16P 26192161 319016A
3960WV-17P 26192171 319017A
3960WV-18P 26192181
SCONDAR P/NMolex 41771Engineer P/NMolex 41771Engineer P/NMolex 3192Engineer P/N
SCT3960WVA-02P266020204177100022661202041771001926202021319202A
SCT3960WVA-03P266020304177100032661203041771002026202031319203A
SCT3960WVA-04P266020404177100042661204041771002126202041319204A
SCT3960WVA-05P266020504177100052661205041771002226202051319205A
SCT3960WVA-06P266020604177100062661206041771002326202061319206A
SCT3960WVA-07P266020704177100072661207041771002426202071319207A
SCT3960WVA-08P266020804177100082661208041771002526202081319208A
SCT3960WVA-09P266020904177100092661209041771002626202091319209A
SCT3960WVA-10P266041004177100102661210041771002726202101319210A
SCT3960WVA-11P266041104177100112661211041771002826202111319211A
SCT3960WVA-12P266041204177100122661212041771002926202121319212A
SCT3960WVA-13P266041304177100132661213041771003026202131319213A
SCT3960WVA-14P266041404177100142661214041771003126202141319214A
SCT3960WVA-15P266041504177100152661215041771003226202151319215A
SCT3960WVA-16P266041604177100162661216041771003326202161319216A
SCT3960WVA-17P266041704177100172661217041771003426202171319217A
SCT3960WVA-18P266041804177100182661218041771003526202181319218A



SCONDAR P/NMolex 41772Engineer P/NMolex 41772Engineer P/NMolex 41772Molex 41772
SCT3960WRA-02P2660302041772000226613020417720019417720463417720481
SCT3960WRA-03P2660303041772000326613030417720020417720464417720482
SCT3960WRA-04P2660304041772000426613040417720021417720465417720483
SCT3960WRA-05P2660305041772000526613050417720022417720466417720484
SCT3960WRA-06P2660306041772000626613060417720023417720467417720485
SCT3960WRA-07P2660307041772000726613070417720024417720468417720486
SCT3960WRA-08P2660308041772000826613080417720025417720469417720487
SCT3960WRA-09P2660309041772000926613090417720026417720470417720488
SCT3960WRA-10P2660310041772001026613100417720027417720471417720489
SCT3960WRA-11P2660311041772001126613110417720028417720472417720490
SCT3960WRA-12P2660312041772001226613120417720029417720473417720491
SCT3960WRA-13P2660313041772001326613130417720030417720474417720492
SCT3960WRA-14P2660314041772001426613140417720031417720475417720493
SCT3960WRA-15P2660315041772001526613150417720032417720476417720494
SCT3960WRA-16P2660316041772001626613160417720033417720477417720495
SCT3960WRA-17P2660317041772001726613170417720034417720478417720496
SCT3960WRA-18P2660318041772001826613180417720035417720479417720497
SCONDAR P/NMolex 41792Engineer P/NMolex 41792Engineer P/NMolex 41792Molex 41792
SCT3960WR-02P2660502041792000226615020417920019417920511417920528
SCT3960WR-03P2660503041792000326614030417920020417920512417920529
SCT3960WR-04P2660504041792000426614040417920021417920513417920530
SCT3960WR-05P2660505041792000526614050417920022417920514417920531
SCT3960WR-06P2660506041792000626614060417920023417920515417920532
SCT3960WR-07P2660507041792000726614070417920024417920516417920533
SCT3960WR-08P2660508041792000826614080417920025417920517417920534
SCT3960WR-09P2660509041792000926614090417920026417920518417920535
SCT3960WR-10P2660510041792001026614100417920027417920519417920536
SCT3960WR-11P2660511041792001126614110417920028417920520417920537
SCT3960WR-12P2660512041792001226614120417920029417920521417920538
SCT3960WR-13P2660513041792001326614130417920030417920522417920539
SCT3960WR-14P2660514041792001426614140417920031417920523417920540
SCT3960WR-15P2660515041792001526614150417920032417920524417920541
SCT3960WR-16P2660516041792001626614160417920033417920525417920542
SCT3960WR-17P2660517041792001726614170417920034417920526417920543
SCT3960WR-18P2660518041792001826614180417920035417920527417920544

Molex Disk Drive Power Connector 5.08mm Pitch

SCT5083 Series is Scondar’s Line of Reliable 5.08mm Pitch Wire-to-Wire Connectors Likened to the Molex Brand

Scondar offers SCT5083 Series, a replacement and cheaper alternative of the Molex 8981 (5.08mm pitch) wire-to-wire connector. Scondar SCT5083 comes in a complete package: The male housing, female/receptacle housing, female and male terminal, all manufactured with precision-fitting and durability ensuring accurate mating.

The Molex 8981 series is famed and often used for disk drive power applications such as hard disk, CD/DVD, Zip and other removable media drives. This connector is available in 2-4 positions, delivering 5.0A for AWG #16-24.

The components are designed to withstand high temperature of IR soldering process and vibrations with its housing made from high temperature material.

Features

Molded dimple for ease of mating and orientation identification

WIth a molded dimple, Scondar can offer reliable mating of connections. The dimple will serve as a visible mating guidance for its ease of assembly, and will prevent connection misorientation.

Spring-Type Mounting Ears

An optional snap-in mounting ears enables the connector to be configured to panel-mounted, feed-through types of connections.

Reliable Polarization Feature and Easy Harness Assembly

The 5.08mm pitch wire connector also offers harness design options for design flexibility according to your needs, and features Easy Harness Assembly to reduce time and cost during installation.

Color-coded housings and terminals

With options for color coding, you can easily identify and manage the connections when color matching of housing and wires are done. This can significantly help for easy installation and easy cable management.

Most HVAC applications typically utilize similarly-configured wire-to-wire connectors. With color coding, incorrect connector insertion and mismating can be prevented.

Rugged consumer and medical application

This can be used to applications subject to shock, vibration or rough handling that can dislodge terminals and cause signal interference.

Friction and positive-lock options

Built with friction and positive lock options, this connector provides high-retention force for a reliable connection in rugged environments.

Reliable TPA Feature

The variety of Terminal Position Assurance (TPA) types, not only facilitates correct mating, but also gives the insurance that terminals are fully locked in the correct position.

High Current Carrying Capabilities

The support for high voltage and current (300V/15A) features a more robust build than blanked terminals.

Accept both male and female terminals

The housing will accept both male and female terminals, and are polarized to eliminate and prevent mismating.

Facilitates heat dissipation and low engagement force

The different wire-to-wire connector types are equipped with RMF solutions for lower friction solution between the contacts, making insertion and removal of the device easier, while eliminating the need for complex mechanisms.

Applications

Automotive and Commercial Vehicle

  • Mechanical Chassis Optimization
  • Thermal Management
  • Thermal Simulation

Consumer

  • Air conditioner
  • Air purifier / dehumidifier
  • Copiers
  • Printers
  • Refrigerator
  • Washing Machine
  • Printed Electronics Design and Development
  • Printed Electronic Inks
  • Printed Electronic Substrates
  • Printed Electronics Manufacturing
  • Magnesium Thixomolding Capability

Appliances

  • Thermal Management
  • Thermal Simulation
  • RF Microwave Solutions
  • RF/Microwave Production Capabilities
  • Fitness Equipment
  • Microwave oven
  • Washing machine

Industrial

  • Copiers
  • Printers
  • Desktop computer and motherboard
  • Hard disk drive

Medical

  • Telecommunications
  • High-Speed Channel Design
  • Signal Integrity Analysis

Material and Packaging of Molex 5.08mm Pitch Wire-to-Wire Connector

Using a UV-Resistant Thermoplastic Material for Enhanced Connector Performance

The housing components are injection molded Nylon66,UL 94V-0. These are scientifically proven to resist UV-radiation than normal plastic, making sure the connectors are well-protected, reducing risk for early degradation and increased cycles/minute of the connector subjected to harsh environments.

Tape and Reel Packaging for SMT Components

Scondar uses a state-of-the-art tape and reel equipment to package a variety of components.

The tape and reel packaging strip has accurately sized cavities for the terminal height, width and depth, secured tightly, maintaining consistent position during transportation.

You can expect that your wire-to-wire connector package is undisturbed during the trip and has maintained its vitality even during your production stages, which is why a lot of our customers has raved about our product for both cheaply-priced and, at the same time, resembles the Molex 5.08mm pitch wire-to-wire product with an industry standard .093” pin and socket in performance and quality.

The complete package will include the following:

Female terminal: 10,000 pcs/reel, brass material and tin-plated finish
Male terminal: 10,000 pcs/reel, brass material and tin-plated finish
Female Housing (Nylon 66, UL94V-0 500): 1000pcs/bag
Male Housing (Nylon 66, UL94V-0 500): 1000pcs/bag

Get a Quick Quote
