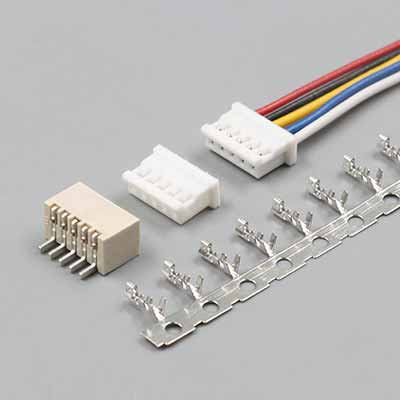

Pico-SPOX 1.5mm Pitch Connectors

SCT1500 Series

SCT1500 are replacement of Molex Pico-SPOX series 1.5mm pitch, wire to board connectors. Pico-SPOX is designed for compact products with good electrical and mechanical reliability for a wide range of applications.

Specification

SeriesSCT1500 Series
Contact Pitch1.5mm
No.of Contacts2 to 15 positions
Current3A (AWG #24 to #28)
CompatibleCross Molex Pico-SPOX Connector Series

Select Components

Current Rating:3A
Voltage Rating:350V
Temperature Range:-25°C~+85°C
Contact Resistance:20m Omega Max
Insulation Resistance:100M Omega Min
Withstanding Voltage:500V AC/minute

Molex Pico-SPOX Connectors: Precision in Miniature

In the world of miniature connectors, Pico-SPOX connectors shine as beacons of precision engineering. These connectors are revered for their unique features, diverse applications, and numerous advantages that make them the preferred choice for various industries. Let’s delve into what sets Pico-SPOX connectors apart.

Pico-SPOX connectors are designed to meet the demands of various applications with their impressive specifications: a current rating of 3A, voltage rating of 350V, wide temperature range from -25°C to +85°C, low contact resistance of 20mΩ max, high insulation resistance of 100MΩ min, and the ability to withstand voltage spikes up to 500V AC/minute, ensuring reliable electrical connections in challenging environments.

Features of Molex Pico-SPOX:

1. Miniature Design: Pico-SPOX connectors are known for their compact and lightweight design. Their miniature form factor is ideal for applications where space is at a premium, offering the utmost flexibility in circuit board layouts.

2. Precision Contacts: These connectors feature precision-machined contacts that ensure reliable and low-resistance electrical connections, delivering optimal signal integrity and minimizing power loss.

3. Secure Latching: Molex Pico-SPOX connectors incorporate a secure latching mechanism that guarantees stable connections, reducing the risk of accidental disconnections even in high-vibration environments.

4. Wide Temperature Range: Designed to perform under extreme conditions, these connectors operate reliably across a wide temperature range, making them suitable for both industrial and consumer electronics.

5. Diverse Configurations: With a variety of configurations available, including wire-to-board and wire-to-wire setups, Pico-SPOX connectors offer versatility to meet diverse connectivity needs.

Applications of Molex Pico-SPOX:

Pico-SPOX connectors find applications across various industries, including:

1. Consumer Electronics: These connectors are vital in the development of compact and feature-rich consumer electronic devices such as smartphones, tablets, and wearables, ensuring efficient and reliable connections.

2. Medical Devices: These connectors are used in critical medical devices, where precision and reliability are paramount for patient safety and accurate data transmission.

3. Industrial Automation: In industrial settings, these connectors facilitate seamless connectivity in automated systems, enhancing operational efficiency and reliability.

Advantages of Molex Pico-SPOX:

Opting for Pico-SPOX connectors offers several advantages:

– Precision: These connectors are engineered for precision, ensuring dependable electrical connections and signal integrity, critical in high-performance applications.

– Durability: Crafted from high-quality materials, Pico-SPOX connectors are built to withstand rigorous operating conditions, resulting in an extended lifespan and reduced maintenance costs.

– Versatility: With diverse configurations and compatibility with various wire sizes, Molex Pico-SPOX connectors provide versatility to address a wide array of connectivity requirements.

In summary, Pico-SPOX connectors, with their miniature design, precision contacts, secure latching, wide temperature range, and versatility, offer a dependable solution for your connectivity needs. Whether in consumer electronics, medical devices, or industrial automation, these connectors play a pivotal role in ensuring seamless and reliable connections. Pico-SPOX connectors exemplify precision in the world of miniature connectors, making them the top choice for applications where precision and reliability are non-negotiable.

SCT1500, crafted with high-quality materials and precision engineering, serves as a dependable and cost-effective alternative to Molex Pico-SPOX connectors. Explore our offerings and make the smart choice for your connectivity needs.
