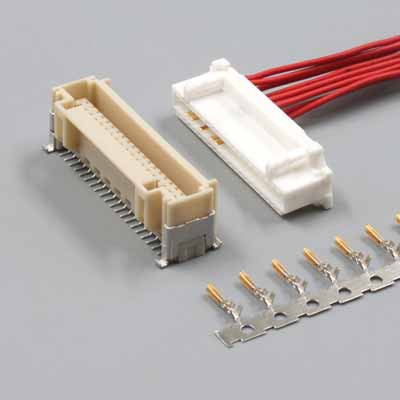

Duo-Clasp 1.25mm Pitch Connectors

SCT12510 Series

SCT12510 are replacement of Molex Duo-Clasp series 1.25mm pitch, wire to board connectors. Featuring a secure positive locking feature similar to Molex’s CLIK-Mate series connectors, the addition of gold plating also makes the Duo Clasp series connectors even more durable.

Specification

SeriesSCT12510 Series
Contact Pitch1.25mm
No.of Contacts20 30 40 positions
Current1.5A (AWG #26 to #28)
CompatibleCross Molex Duo-Clasp Connector Series

Select Components

Current Rating:1.5A
Voltage Rating:200V
Temperature Range:-40°C~+130°C
Contact Resistance:≤20m Omega Max
Insulation Resistance:≥1000M Omega Min
Withstanding Voltage:1000V AC/minute
