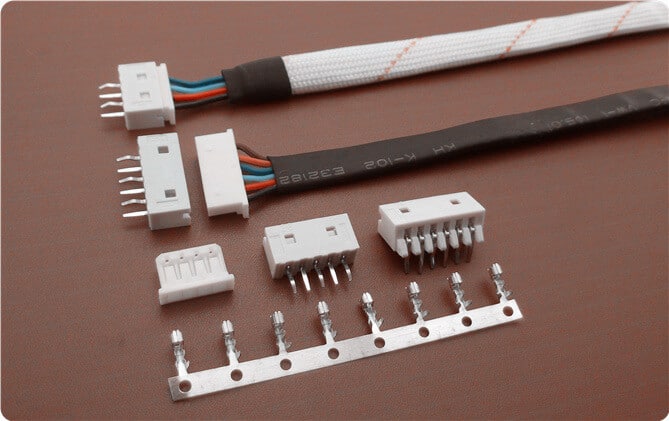

MicroBlade 2.0mm Pitch Connector

SCT2002 Series

SCT2002 series are replacement of Molex’s 2.0mm MicroBlade™ Connection System.Providing compact, flexible and economical solutions for 2.00mm pitch applications

Specification

SeriesSCT2002 Series
Contact Pitch2.0mm
No.of Contacts2 to 15 positions
Current2A (AWG #24 to #30)
CompatibleCross Molex 51004 Connector Series

Cable Assemblies Refer

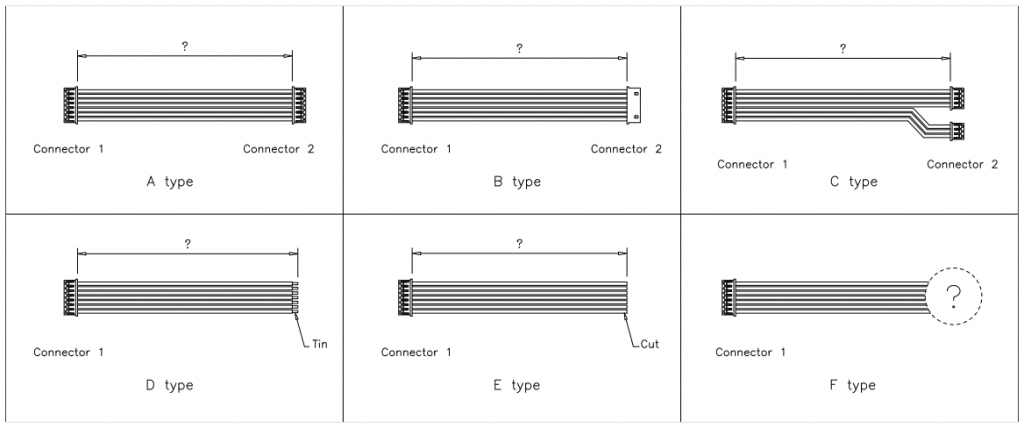

Molex MicroBlade Cable Diagram
Current Rating:2A
Voltage Rating:250V
Temperature Range:-25°C~+85°C
Contact Resistance:20m Omega Max
Insulation Resistance:1000M Omega Min
Withstanding Voltage:1000V AC/minute

Molex MicroBlade Connectors: The Power of Miniaturization

In the ever-evolving landscape of electrical connectors, Molex MicroBlade connectors emerge as a testament to the power of miniaturization. These connectors are a marvel of engineering, with unique features that enable a broad spectrum of applications and offer numerous advantages. Let’s delve into the distinctive qualities that set Molex MicroBlade connectors apart.

Molex MicroBlade connectors are designed to excel in diverse applications with their impressive specifications. They feature a current rating of 2A and a voltage rating of 250V, ensuring efficient electrical connections. These connectors operate reliably in temperatures ranging from -25°C to +85°C, guaranteeing functionality in various environments. With a low contact resistance of up to 20mΩ and high insulation resistance of at least 1000MΩ, they provide dependable electrical connections. Additionally, they can withstand voltage spikes up to 1000V AC/minute, making them a robust choice for a wide range of applications.

Features of Molex MicroBlade:

1. Ultra-Compact Design: Molex MicroBlade connectors are known for their exceptionally compact form, making them ideal for applications with space constraints. Their miniature size doesn’t compromise performance.

2. High Contact Density: Despite their small size, these connectors boast high contact density, enabling the transmission of multiple signals in a confined space, a feature crucial in modern electronics.

3. Robust Performance: These connectors are engineered for durability and consistent performance. They can withstand the rigors of demanding environments, ensuring reliability in critical applications.

4. Diverse Configurations: These connectors offer a range of configurations, including wire-to-wire and wire-to-board setups, catering to various connectivity needs.

Applications of Molex MicroBlade:

Molex MicroBlade connectors find applications across diverse industries, including:

1. Consumer Electronics: These connectors are integral to the design of compact consumer devices such as smartphones, tablets, and wearables, enabling seamless connectivity and enhancing the user experience.

2. Automotive Systems: In the automotive sector, MicroBlade connectors facilitate the interconnection of sensors, control units, and lighting systems, ensuring optimal vehicle performance and safety.

3. Medical Devices: The connectors are trusted in medical equipment, where precision and reliability are paramount, contributing to the advancement of healthcare technology.

Advantages of Molex MicroBlade:

Choosing Molex MicroBlade connectors offers a host of advantages:

– Space Efficiency: Their compact design maximizes space utilization, making them an ideal choice for applications with spatial limitations.

– High Signal Integrity: Despite their size, these connectors maintain high signal integrity, ensuring data and power transmission with minimal interference.

– Reliability: These connectors are built for long-term reliability, minimizing maintenance and replacement costs.

In summary, Molex MicroBlade connectors, with their ultra-compact design, high contact density, and robust performance, provide a powerful solution for connectivity needs. Whether in consumer electronics, automotive systems, or medical devices, these connectors excel, ensuring your critical connections remain strong and dependable, all within a minimal footprint.

SCT2002 is a cost-effective and dependable alternative to Molex MicroBlade connectors, offering a reliable solution for your connectivity needs. We welcome you to explore and select our quality solutions.
