SPOX 2.5mm Pitch Connectors

Home » Wire to Board Connector » SPOX 2.5mm Pitch Connectors

SCT2513 Series

SCT2513 series are replacement of Molex’s 2.5mm Mini-SPOX™ Wire-to-Board Connectors.offers an extremely wide variety of mating configurations.

Specification

Series	SCT2513 Series
Contact Pitch	2.5mm
No.of Contacts	2 to 16 positions
Current	2A (AWG #22 to #30)
Compatible	Cross Molex Mini-SPOX Connector Series

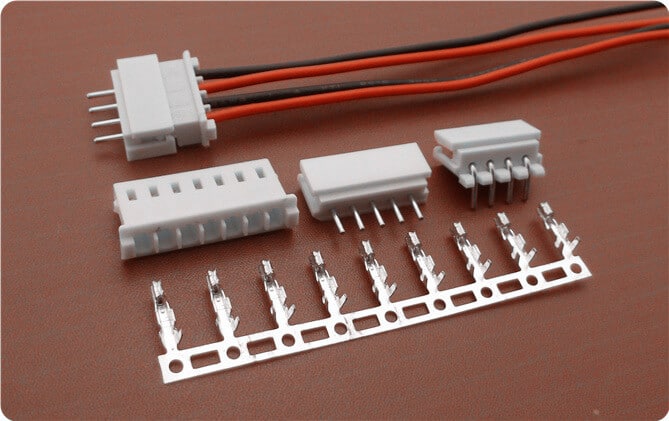

SCT2513 SERIES CONNECTORS

Items	Part No.	Spec.
Housing	SCT2513H-xxBBE119	Drawing
Terminal	SCT2513TPS109	Drawing
Vertical Header	SCT2513WV-xxB0BE119	Drawing
Right-angle Header	SCT2513WR-xxB0BE119	Drawing

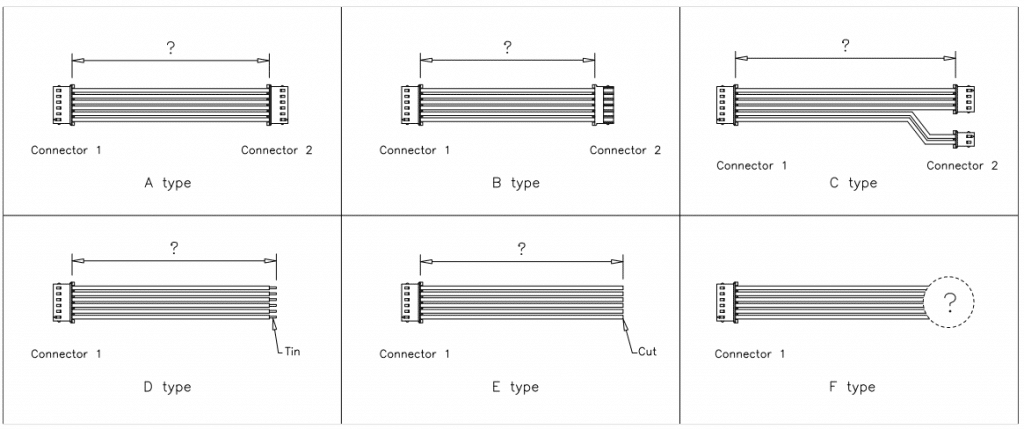

Cable Assemblies Refer

General Specification

Current Rating:	2A
Voltage Rating:	250V
Temperature Range:	-25°C~+85°C
Contact Resistance:	20m Omega Max
Insulation Resistance:	1000M Omega Min
Withstanding Voltage:	800V AC/minute
