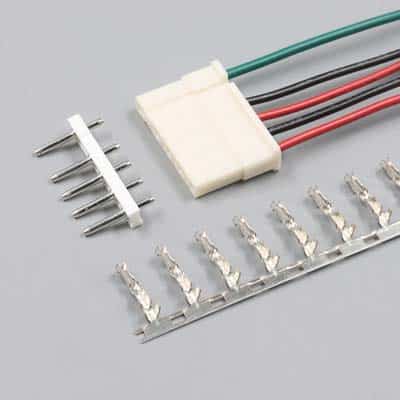

JST V 7.5mm Pitch Connectors

SCT7501 Series

SCT7501 are replacement of JST V series 7.5mm pitch, wire to board connectors. The V connector has a design to prevent wrong connections. One of the contacts has a distance of 7.5mm from the adjacent contact, while the rest of the contacts have a distance of 5.0mm.

Specification

SeriesSCT7501 Series
Contact Pitch7.5mm
No.of Contacts2 to 6 positions
Current7A (AWG #20 to #26)
CompatibleCross JST V Connector Series

Select Components

Current Rating:7A
Voltage Rating:250V
Temperature Range:-25°C ~ +85°C
Contact Resistance:20m Omega Max
Insulation Resistance:1000M Omega Min
Withstanding Voltage:1500V AC/minute

Introducing JST V Connectors: Where Versatility Meets Reliability

JST V connectors are engineered to excel in various applications, offering a current rating of 7A and a voltage rating of 250V. These connectors operate reliably in a wide temperature range from -25°C to +85°C, with a low maximum contact resistance of 20mΩ ensuring efficient electrical conductivity. They also feature exceptional insulation resistance, measuring a minimum of 1000MΩ, and can withstand voltages of up to 1500V AC per minute, making them a dependable choice for diverse electrical connection needs.

Features of JST V:

1. Versatile Circuit Options: The JST V connector series offers a wide range of circuit options, accommodating two to six circuits. Whether you need a simple point-to-point connection or a more complex multi-circuit solution, the connectors provide the versatility required for various applications.

2. Reverse Connection Prevention: These connectors incorporate a smart design to ensure safety and reliability. A single contact position is strategically positioned 7.5 mm away from the adjacent position, while other positions maintain a 5.0 mm pitch. This ingenious layout effectively prevents the risk of reverse connection between the receptacle and header, reducing the chances of errors during assembly and enhancing connection security.

Applications of JST V:

– Consumer Electronics: JST V connectors are ideal for a wide range of consumer electronic devices, including smartphones, tablets, and laptops. Their versatility and reverse connection prevention make them a valuable choice in these applications.

– Automotive: In the automotive industry, where precision and safety are paramount, the connectors are used in various electrical systems, preventing assembly errors and ensuring robust connections.

– Industrial Automation: Industrial automation equipment relies on JST V connectors for dependable connections in settings with high vibration and movement. The reverse connection prevention feature adds an extra layer of reliability.

Advantages of JST V:

– Enhanced Safety: The unique layout of the connectors minimizes the possibility of reverse connections, reducing errors during assembly and enhancing safety in various applications.

– Versatility: With options for two to six circuits, JST V connectors are adaptable to a wide array of applications, simplifying component selection.

– Space Efficiency: The compact design of these connectors is space-efficient, making them suitable for applications with limited PCB space.

– Reliable Locking Mechanism: These connectors feature a dependable locking mechanism, ensuring stable and secure connections even in demanding environments.

Elevate your connections with the connectors, designed to combine versatility and reliability, and suitable for a broad spectrum of applications.

Certainly, feel free to choose SCT7501 as it is a reliable and cost-effective alternative to the JST V connector. We look forward to providing you with outstanding connectivity solutions. If you have any questions or need assistance, please don’t hesitate to contact us.
