SPOX 5.08mm Pitch Connectors

SCT5082 Series

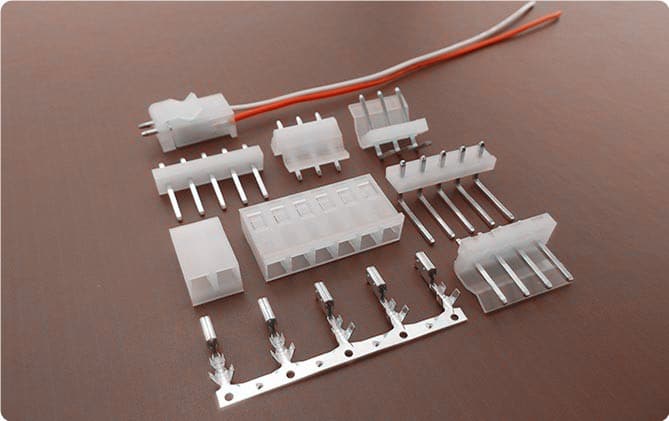

SCT5082 series are replacement of Molex 5.08mm Pitch SPOX Wire-to-Board Connectors.Box style terminal,Friction locks,Polarization keys features.


Series SCT5082 Series
Contact Pitch 5.08mm
No.of Contacts 2 to 8 positions
Current 5A (AWG #18 to #22)
Compatible Cross Molex 5197/5281 Connector Series


Items Part No. Photo Spec.
Housing SCT5082H-xxxWT115 Drawing
Terminal SCT5082T Drawing
Current Rating: 5A
Voltage Rating: 250V
Temperature Range: -25°C~+85°C
Contact Resistance: 15m Omega Max
Insulation Resistance: 1000M Omega Min
Withstanding Voltage: 1500V AC/minute

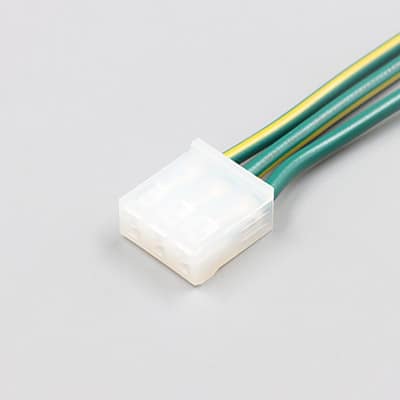

Cable Assemblies Refer
