XH 2.5mm Pitch Connectors

SCT2501 Series

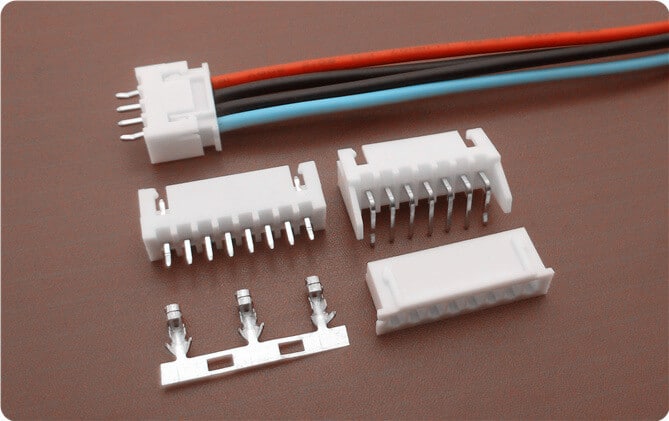

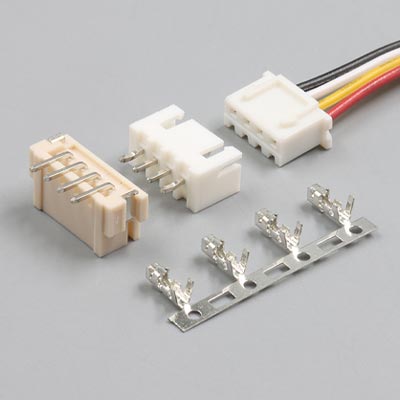

SCT2501 Series are replaced of JST-XH connector. 2.5mm pitch, a field widely uses on fields with high reliability and versatility performance.the mounting height of 9.8mm.


SeriesSCT2501 Series
Contact Pitch2.5mm
No.of Contacts2 to 16 positions
Current3A (AWG #22 to #28)
CompatibleCross JST XH Connector Series

Cable Assemblies Refer

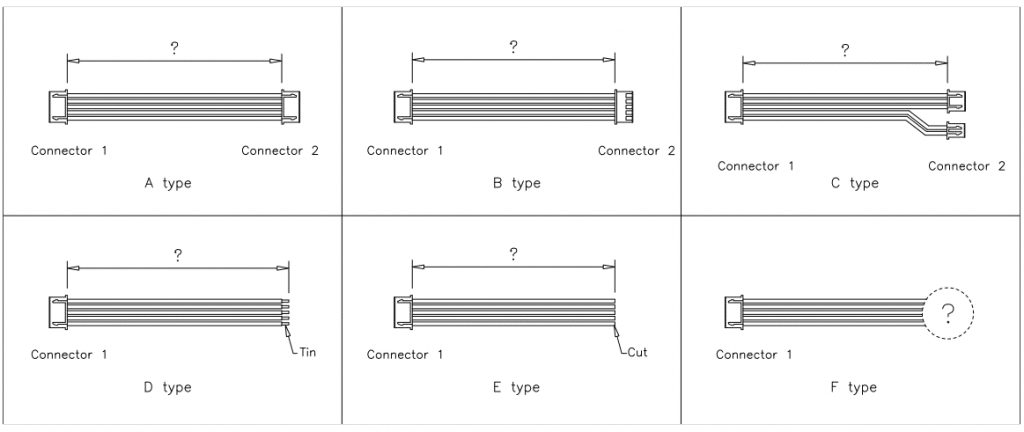

JST XH Cable Diagram
Current Rating:3A
Voltage Rating:250V
Temperature Range:-25°C~+85°C
Contact Resistance:20m Omega Max
Insulation Resistance:1000M Omega Min
Withstanding Voltage:1000V AC/minute

The SCT2501 series is Scondar’s reliable 2.5mm pitch wire-to-board connector series and is an alternative to JST XH.

The JST XH connector boasts impressive performance specifications, including a current rating of 3A and a voltage rating of 250V. It operates effectively within a temperature range spanning from -25°C to +85°C. With exceptionally low contact resistance, measuring a maximum of 20 milliohms, and insulation resistance exceeding 1000 megaohms, it ensures reliable electrical connections. Additionally, it demonstrates remarkable voltage-withstanding capabilities, handling 1000V AC for a minute without issue. These outstanding parameters establish the JST XH connector as the ideal choice for dependable connections across a wide range of applications.

Features of JST XH Connector:

1. Precision Engineering:

JST XH Connectors are meticulously crafted to ensure precise and secure connections. Their robust design can withstand the rigors of various environments.

2. Wide Voltage and Current Range:

These connectors are built to handle a broad range of voltage and current requirements, making them suitable for a variety of electronic devices and applications.

3. Secure Locking Mechanism:

The XH series features a locking mechanism that provides a secure and vibration-resistant connection, minimizing the risk of accidental disconnection.

4. Polarization:

The connectors offer polarization options to prevent misalignment during assembly, ensuring proper connection every time.

5. Diverse Sizes and Configurations:

With various pin counts and configurations available, these connectors cater to a wide range of design needs, from compact electronics to complex systems.

Applications of JST XH Connector:

1. Consumer Electronics:

JST XH Connectors are commonly found in consumer electronics like televisions, audio systems, and gaming consoles, ensuring reliable connections for seamless user experiences.

2. Computer Hardware:

They play a crucial role in connecting components within computers, such as motherboards, hard drives, and power supplies, providing stable and efficient data transfer.

3. Automotive Electronics:

XH connectors are used in automotive applications, including engine control units (ECUs), infotainment systems, and sensors, where reliability and durability are paramount.

4. Industrial Equipment:

These connectors find applications in industrial automation, robotics, and machinery, ensuring dependable connections in harsh environments.

5. Medical Devices:

JST XH Connectors are employed in various medical equipment, including diagnostic devices and patient monitoring systems, where precision and reliability are critical.

6. Renewable Energy:

They are used in solar inverters and wind turbine systems, providing efficient power connections in renewable energy applications.

Advantages of JST XH Connector:

– High Reliability: The folded beam contact technology of the JST XH connector ensures reliable electrical connections, reducing the risk of connection failures, making it suitable for critical applications.

– Compact Design: The connector’s small and low-profile design is ideal for space-constrained applications while delivering high performance.

– Versatility: The interchangeability and multipurpose design of the connector make it suitable for various projects and systems.

– Easy Installation: The boss on the connector’s header simplifies the installation and alignment process, improving work efficiency.

– Wide Range of Applications: The connector is widely used in multiple industries and fields, providing a reliable connection solution for various projects.

These features, applications, and advantages make the JST XH connector a powerful tool that can meet various connection needs and deliver exceptional performance.

SCT2501 connector offers an economical and reliable solution as a replacement for JST XH connectors. It not only delivers excellent performance but is also suitable for a wide range of applications. Whether you require dependable electrical connections or seek a high-quality connectivity solution within your budget, SCT2501 is the ideal choice.
