SCT0801T

Specification

Part NameTerminal
Pitch0.8mm
SeriesSCT0801
CompatibleSSUH-003T-P0.15

Part No. Cross Reference

SCONDAR P/NJST P/N
SCT0801TPS110SSUH-003T-P0.15

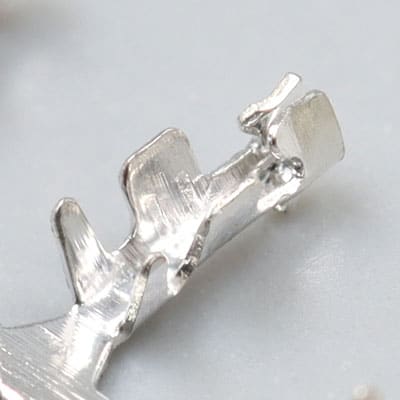

JST SUH Crimp Contact SSUH-003T-P0.15

JST SUH crimp contact SSUH-003T-P0.15 features a contact resistance of 20mΩ (Max) and a withstanding voltage of 200VAC for 1 minute. It offers excellent insulation resistance of at least 100MΩ, with a voltage rating of 30V AC/DC and a current rating of 0.5A AC/DC. The contact is constructed with tin-plated phosphor bronze material measuring 0.12mm in thickness. It is compatible with applicable wire sizes ranging from AWG#32 to 36# with a maximum outer diameter of 0.6mm. Operating effectively in a temperature range of -25℃ to +85℃, this crimp contact ensures reliable electrical connections.

SCT0801TPS110: A Cost-Effective Alternative

SCT0801TPS110 serves as an economical and dependable alternative to the JST SUH terminal SSUH-003T-P0.15. This replacement terminal offers reliable electrical connections and cost-effective performance. It is designed to provide seamless compatibility and is suitable for a wide range of applications. Whether you require dependable connectivity for your industrial, automotive, or electronics projects, SCT0801TPS110 ensures secure and stable connections while offering an affordable solution.

Enhanced Flexibility with Alternative Housing

SSUH-003T-P0.15 is designed to be used with JST SUH housing, but it can also be used in conjunction with our alternative housing series, SCT0801H-xxFBE110, providing flexibility in your connectivity solutions. This compatibility ensures that you have versatile options for your projects, all while maintaining reliable and secure connections.

Of course, we also provide other JST  SUH parts like idc housing, crimp housing, vertical header and right-angle header. You can return to the previous page to select the connector that suits your project needs, or directly consult us for your detailed needs. Our engineers will provide you with enthusiastic and professional service.
