SUH 0.8mm Pitch Connector

SCT0801 Series

SUR connector that has been designed for 0.8mm pitch wire-to-board insulation displacement connector. This connector adopted the first crimping method in a minimum 0.8mm pitch of the wire-to-board type connector. Housing lance method provides the good workability and a constriction contact method provides the excellent contact reliability.

Specification

SeriesSCT0801 Series
Contact Pitch0.8mm
No.of Contacts2 to 20 positions
Current0.5A (AWG #32,#36)
CompatibleCross JST SUH Connector Series

Select Components

SMD Vertical Header

SMD Right-Angle Header

Current Rating: 0.5A
Voltage Rating: 30V
Temperature Range: -25℃~ +85℃
Contact Resistance: 20m Omega Max
Insulation Resistance: 100M Omega Min
Withstanding Voltage: 200V AC/minute

SCT0801 SERIES CONNECTORS

ItemsPart No.PhotoSpec.
HousingSCT0801H-xxFBE110 Drawing

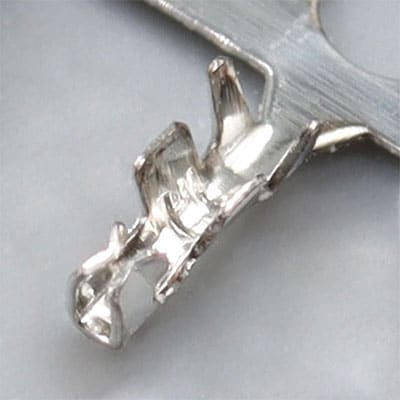

TerminalSCT0801TPS110 Drawing
Vertical SMT SocketSCT0801WVS-xxA1xx110 Drawing
Right-angle SMT SocketSCT0801WRS-xxA1xx110 Drawing
Cable AssembliesCustomsCustoms
