Part NameTerminal
CompatibleSPUD Series
JST SPUD-001T-P0.5 SPUD-002T-P0.5 PUD crimp contact diagram

Part No. Cross Reference

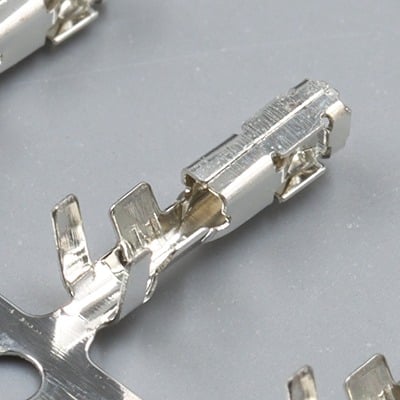

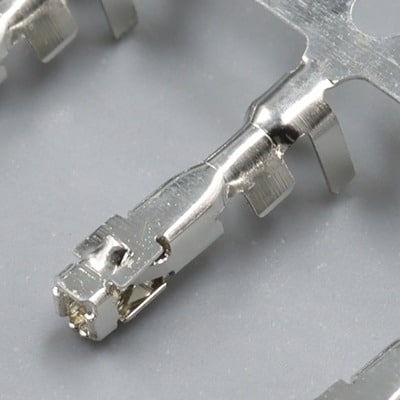

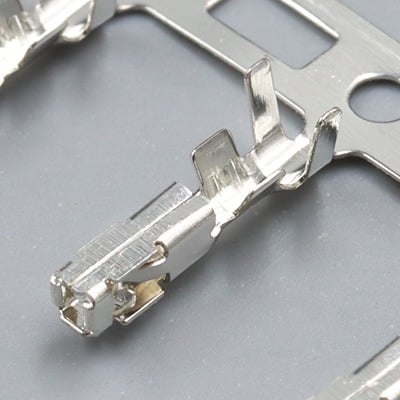

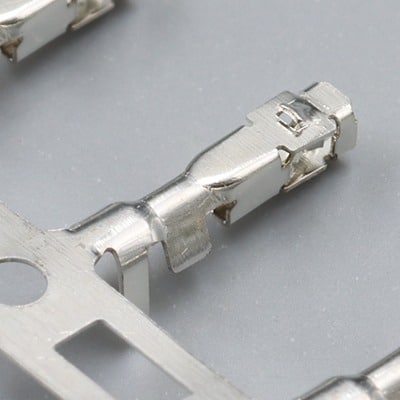

JST SPUD-001T-P0.5 and SPUD-002T-P0.5 – Enhancing Connectivity with JST PUD Connectors

JST SPUD-001T-P0.5 and SPUD-002T-P0.5 are versatile crimp contacts designed for the JST PUD Connector series, tailored to meet various connectivity needs. With the following features and advantages, these crimp contacts offer a reliable and efficient solution:

Key Features of JST SPUD-001T-P0.5 and SPUD-002T-P0.5:

1. Current Rating: These crimp contacts are rated for a maximum current of 3A, making them suitable for a wide range of low to moderate power applications.

2. Voltage Rating: With a voltage rating of 250V AC/DC, they provide robust insulation against electrical surges and maintain secure connections.

3. Insulation Resistance: Boasting an impressive insulation resistance of 1000MΩ or more, these contacts ensure minimal electrical leakage, enhancing overall system performance.

4. Contact Resistance: Their low contact resistance of 20mΩ or less promotes efficient power transfer and reduces energy loss.

5. Withstanding Voltage: These crimp contacts can withstand a voltage of 1500VAC, safeguarding against electrical breakdown during operation.

6. Temperature Tolerance: Designed to perform reliably in diverse environments, they offer an operational temperature range from -25°C to +85°C.

Material and Compatibility:

– Wire Range: They accommodate wire sizes ranging from 22AWG to 28AWG, providing flexibility for various wire gauges.

– Material: Constructed from high-quality phosphor bronze with a thickness of 0.15mm, these crimp contacts offer excellent conductivity and durability.

– Finish: The tin-plated finish not only ensures corrosion resistance but also facilitates soldering and crimping processes.

– Quantity: Packaged conveniently with 8,000 pieces per reel, these crimp contacts are suitable for both small-scale and large-scale projects.

Applications and Advantages of JST SPUD-001T-P0.5 and SPUD-002T-P0.5:

These crimp contacts are a perfect fit for the JST PUD Connector series, enhancing connectivity in a wide range of applications, including automotive, industrial, and consumer electronics. Their exceptional insulation and voltage ratings make them ideal for use in power and signal transmission systems.

Their compatibility with different wire gauges and their resistance to temperature variations ensure that they are adaptable to various environmental conditions.

In summary, JST SPUD-001T-P0.5 and SPUD-002T-P0.5 crimp contacts provide a reliable and efficient solution for electrical connections, making them a valuable component in a variety of industries. Their ability to handle different wire sizes, withstand voltage fluctuations, and perform in extreme temperatures positions them as a dependable choice for engineers and manufacturers seeking high-quality connectivity solutions.

SCT2020TLPS162 provides an excellent substitute for JST SPUD-001T-P0.5 and SPUD-002T-P0.5 crimp contacts, offering a cost-effective solution for various applications. These connectors are designed to maintain a secure and reliable electrical connection within your assemblies. Whether you need to create wire-to-board or wire-to-wire connections, SCT2020TLPS162 offers a dependable alternative to the original JST components, ensuring the integrity of your electrical systems. Trust in its quality and compatibility for your interconnection needs.
