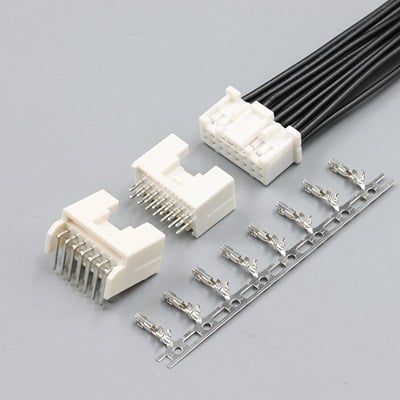

PUD 2.0mm Pitch Connectors

SCT2020 Series

SCT2020 are replacement of JST PUD series 2.00mm pitch connectors. Both the advantages of low insertion force and stable electrical connection performance are guaranteed.

Specification

SeriesSCT2020 Series
Contact Pitch2.0mm
No.of Contacts2*4 to 2*20 positions
Current3A (AWG #22 to #28)
CompatibleCross JST PUD Connector Series

Select Components

Current Rating:3A
Voltage Rating:250V
Temperature Range:-25°C~+85°C
Contact Resistance:20m Omega Max
Insulation Resistance:1000M Omega Min
Withstanding Voltage:1500V AC/minute

JST PUD Connectors: Elevating Connectivity Excellence

JST PUD connectors are engineered to deliver reliable performance with a current rating of 3A and a voltage rating of 250V, ensuring efficient electrical connections. These connectors operate effectively in a temperature range from -25°C to +85°C, featuring low contact resistance (20mΩ max), high insulation resistance (1000MΩ min), and the capability to withstand voltage spikes up to 1500V AC/minute, making them a dependable choice for various applications.

In the ever-evolving landscape of connectivity solutions, JST PUD connectors stand out as a testament to innovation and performance. These connectors have redefined the way we establish electrical connections, offering an array of features, versatile applications, and compelling advantages. This article delves into what makes these connectors exceptional in the world of connectivity.

Features:

1. Compact Design: JST PUD connectors are celebrated for their compact and space-saving design. Their small form factor allows for efficient utilization of space, making them ideal for applications with limited room.

2. High Contact Density: These connectors boast an impressive contact density, ensuring efficient power and data transmission even in challenging environments. Their densely packed contacts maximize space utilization, making them an excellent choice for applications with spatial constraints.

3. Secure Locking Mechanism: At the core of JST PUD connectors is a secure locking mechanism that guarantees stable and reliable connections. This robust locking system ensures that connections remain intact, even in environments prone to vibrations and movement.

4. Durable Build: Crafted from top-tier materials, JST PUD connectors are engineered to withstand wear and tear, ensuring a long lifespan and minimal maintenance.

Applications:

JST PUD connectors find their applications across various industries, including:

1. Automotive Systems: These connectors play a pivotal role in automotive applications, connecting sensors, lighting systems, control units, and more. Their secure connections ensure the safety and optimal performance of vehicles.

2. Consumer Electronics: JST 2.0 mm connectors are integral to consumer electronic devices such as smartphones, tablets, and laptops. They enhance user experiences through reliable and efficient connectivity.

3. Industrial Machinery: In industrial settings, these connectors facilitate connectivity in manufacturing processes, contributing to the seamless operation of automated systems.

Advantages:

Choosing the connectors offers numerous advantages:

1. Reliability: JST PUD connectors are celebrated for their unwavering reliability. They consistently perform, even in challenging environments, minimizing downtime and ensuring operational efficiency.

2. Ease of Installation: Their user-friendly design and secure locking mechanism simplify installation and maintenance, reducing labor costs and minimizing downtime.

3. Versatility: JST PUD connectors are available in various configurations to cater to specific connectivity needs, offering flexibility and adaptability.

In conclusion, these connectors represent a pinnacle of innovation and performance in the realm of connectivity solutions. Their compact design, high contact density, secure locking mechanism, and durability make them the preferred choice in automotive, consumer electronics, and industrial automation industries. JST PUD connectors are the key to elevating connectivity excellence, ensuring your critical connections remain secure, efficient, and dependable.

SCONDAR SCT2020 serves as a reliable alternative to JST PUD connectors, offering a dependable choice for your connectivity needs. We welcome you to explore and select this trusted solution.
