Dupont 2.5mm Pitch Connectors

SCT2503 Series

SCT2503 Series are replaced by Dupont 2.5mm series connectors.

Specification

Series SCT2503 Series
Contact Pitch 2.5mm
No.of Contacts 2 to 16 positions
Current 3A (AWG #22 to #28)
Compatible Cross Dupont2.5 Connector Series

Select Components

HOUSING

Terminal

Vertical Header

Right-angle Header

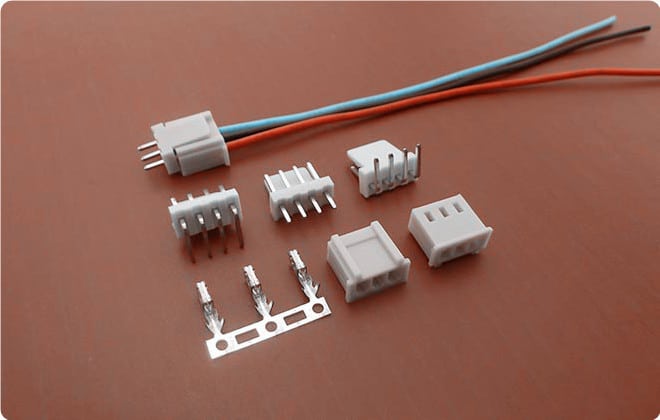

SCT2503 SERIES CONNECTORS

Items Part No. Photo Spec.
Housing SCT2503H-xxP Drawing
Terminal SCT2503T Drawing
Vertical Header SCT2503WV-xxP Drawing
Right-angle Header SCT2503WR-xxP Drawing

Cable Assemblies Refer

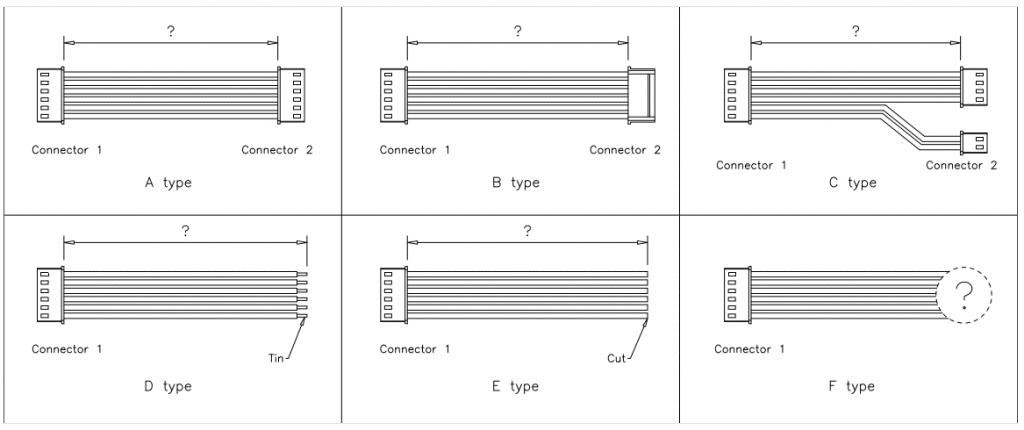

Dupont2.5 connector cable assemblies
Current Rating: 3A
Voltage Rating: 250V
Temperature Range: -25°C~+85°C
Contact Resistance: 20m Omega Max
Insulation Resistance: 1000M Omega Min
Withstanding Voltage: 1000V AC/minute
