DF13 1.25mm Pitch Connectors

SCT1252 Series

SCT2501 Series are replaced of JST-XH connector. 2.5mm pitch, a field widely uses on fields with high reliability and versatility performance.the mounting height of 9.8mm.

Specification

Series	SCT1252 Series
Contact Pitch	1.25mm
No.of Contacts	2 to 15, 25, 210, 215, 220 positions
Current	1A (AWG #28 to #32)
Compatible	Cross Hirose DF13 Connector Series

Hirose DF13 Series connectors

Ask for a quote

ASK FREE SAMPLES

Specification (PDF)

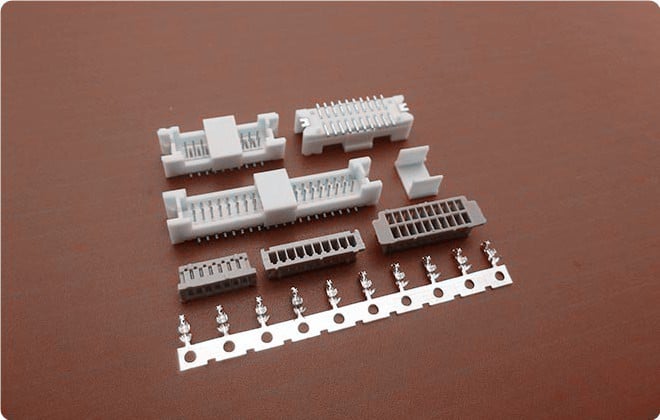

SCT1252 SERIES CONNECTORS

Items	Part No.	Photo	Spec.
Housing	SCT1252H-xxP		Drawing

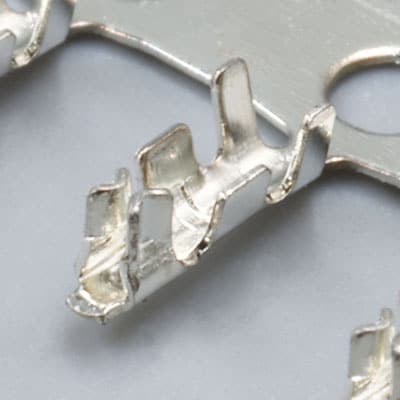

Terminal	SCT1252T		Drawing
Vertical Header	SCT1252WV-xxP		Drawing
SMD Vertical Socket	SCT1252WV-SF-xxP		Drawing
SMD Vertical Socket	SCT1252WV-SF-2XNP		Drawing

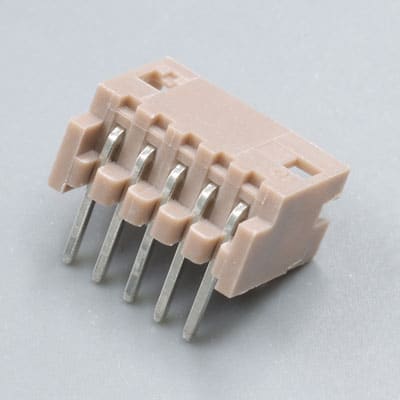

Right-angle Header	SCT1252WR-xxP		Drawing
SMD Right-angle Socket	SCT1252WR-SF-xxP		Drawing

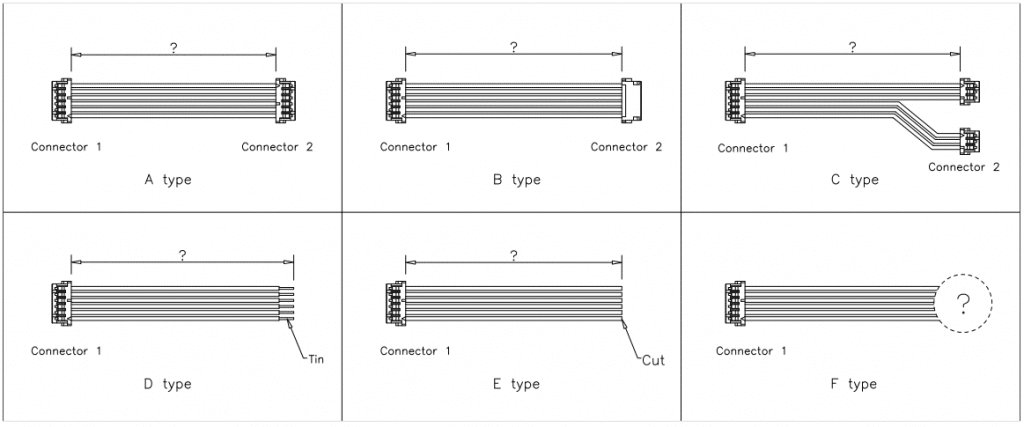

Cable Assemblies Refer

DF13 Cable assemblies

General Specifaction

Item	Spec.
Part No.	SCT1252
Compatible:	Hirose DF13 series connector
Pitch - Mating Interface	1.25mm
Circuits	2-15 or 25,210,215,220
Applicable wire:	AWG#28-#32 (Max.OD: 1.0mm)
Current Rating:	1A
Voltage Rating:	125V
Temperature Range:	-40°C~+85°C
Contact Resistance:	20m Omega Max
Insulation Resistance:	1000M Omega Min
Withstanding Voltage:	500V AC/minute
