MLX 6.2mm Pitch Power Connectors

SCT63080 Seires

SCT63080 series are compatible with Molex MLX 6.2mm pitch power connectors.

Specification

Series SCT63080 Series
Contact Pitch 6.3mm
No.of Contacts 2 to 15 positions
Current 13A (AWG #18 to #22)
Compatible Cross Molex MLX Connector Series
Current Rating: 13A
Voltage Rating: 300V
Temperature Range: -25°C~+85°C
Contact Resistance: 10m Omega Max
Insulation Resistance: 1000M Omega Min
Withstanding Voltage: 1500V AC/minute

Molex MLX 6.35mm Pitch Power Connector

SCT63080 Series is Scondar’s Line of Reliable 6.35mm Pitch Wire-to-Wire Power Connectors Likened to the Specialized MLX Molex Brand

There are two industry standard connector lines sharing the spotlight for proven performance and versatility. These are the KK family and MLX family connectors, widely used for power and signal distribution applications in nearly every electronics market. Scondar offers both KK and MLX connectors.

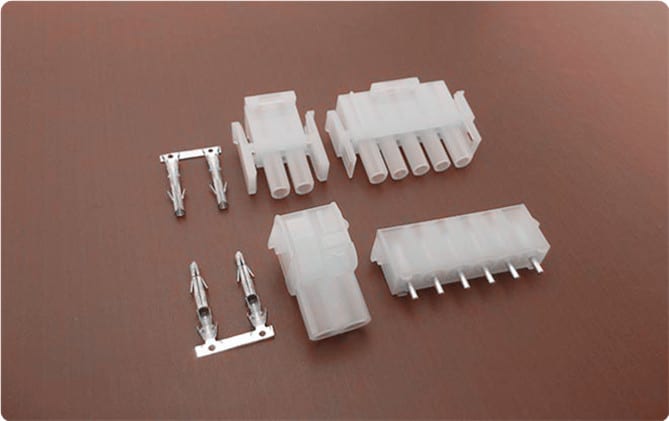

Scondar’s SCT6308 Series stands as a replacement and cheaper alternative of the Molex MLX series 6.35mm pitch for both wire-to-wire and wire-to-board applications. It has a 2.13mm diameter plug and cap which interchangeable, intermountable and intermateable with other industry standard connectors. The SCT6308 (MLX connector) comes in a complete package which includes the:

-male housing
-female/receptacle housing
-female and male terminal, all manufactured with precision-fitting and durability ensuring accurate mating.

The SCT6308 is compatible with AWG 18-22 wire and can handle 13 amps and 300 volts, depending upon the design characteristics.

Features

Intermateable, intermountable and interchangeable plug and cap

Highly flexible and resilient, Scondar’s MLX connectors are compatible with other standard versions of 6.35mm pitch wire-to-wire connectors.

Reliable TPA Feature

The variety of Terminal Position Assurance (TPA) types, not only facilitates correct mating, but also gives the insurance that terminals are fully locked in the correct position.

Friction and positive-lock options

Built with friction and positive lock options, this connector provides high-retention force for a reliable connection in rugged environments.

Glow-Wire Capable

In addition to its 94V0 and V2 ratings, the MLX connector material is designed to retard fire or fire tendencies whenever the wires will be overloaded. This meets safety and environmental requirements.

Well-Designed Crimping Feature

The crimps are well engineered to be air-tight, preventing oxygen and moisture from reaching the metals, causing corrosion. Thus, the connector can be easily removed from the head without holding the wires.

Application

The MLX series is commonly found in most home appliances, servers and power supplies, data telecommunications, market motors, gas valves for hvac applications as well as LED lighting and industrial controllers.

Consumer

  • Air conditioner
  • Air purifier / dehumidifier
  • Copiers
  • Fitness Equipment
  • Microwave oven
  • Printers
  • Refrigerator
  • Washing Machine
  • Data/Computing
  • Copiers
  • Medical
  • Medical equipment

Material and Packaging of Molex MLX 6.35mm Pitch Wire-to-Wire Connector

Using a UV-Resistant Thermoplastic Material for Enhanced Connector Performance

The housing components are injection molded Nylon66,UL 94V-0. These are scientifically proven to resist UV-radiation than normal plastic, making sure the connectors are well-protected, reducing risk for early degradation and increased cycles/minute of the connector subjected to harsh environments.

Tape and Reel Packaging for SMT Components

Scondar uses a state-of-the-art tape and reel equipment to package a variety of components.

The tape and reel packaging strip has accurately sized cavities for the terminal height, width and depth, secured tightly, maintaining consistent position during transportation.

You can expect that your wire-to-wire connector package is undisturbed during the trip and has maintained its vitality even during your production stages, which is why a lot of our customers has raved about our product for both cheaply-priced and, at the same time, resembles the Molex MLX 6.35 pitch wire-to-wire product in performance and quality.

The complete package will include the following:

Female terminal: 10,000 pcs/reel, brass material and tin-plated finish
Male terminal: 10,000 pcs/reel, brass material and tin-plated finish
Female Housing (Nylon 66, UL94V-0 500): 1000pcs/bag
Male Housing (Nylon 66, UL94V-0 500): 1000pcs/bag
