SCT2502 Series

SCT2502 Series are replace of JST XA connector. 2.5mm pitch, compare to XH connector, it has secure locking device prevents accidental disconnection.

Specification

SeriesSCT2502 Series
Contact Pitch2.5mm
No.of Contacts2 to 16 positions
Current3A (AWG #22 to #28)
CompatibleCross Jst XH Connector Series

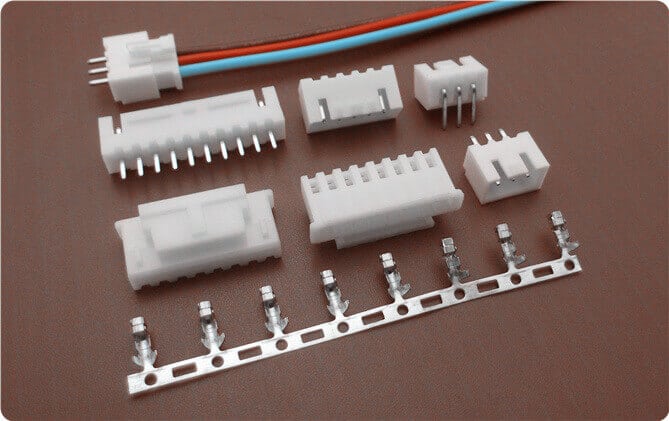

JST-XA-connector
Ask for a quote
ASK FREE SAMPLES

SCT2502 SERIES CONNECTORS

ItemsPart No.PhotoSpec.
HousingSCT2502H-XXP Drawing
TerminalSCT2501T Drawing
Vertical HeaderSCT2502WV-XXP Drawing
Right-angle HeaderSCT2502WR-XXP Drawing

Cable Assemblies Refer

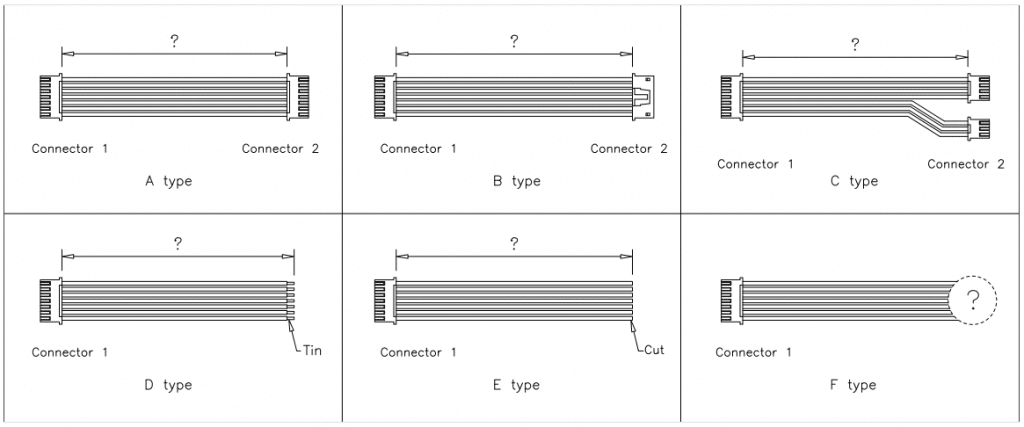

JST XA Connector cable assemblies
Current Rating:3A
Voltage Rating:250V
Temperature Range:-25°C~+85°C
Contact Resistance:20m Omega Max
Insulation Resistance:1000M Omega Min
Withstanding Voltage:1000V AC/minute
