SSH-003T-P0.2-H

SCT1001T

Specification

Part Name Terminal
Pitch 1.0mm
Series SCT1001
Compatible SSH-003T-P0.2-H

Part No. Cross Reference

SCONDAR P/NJST P/N
SCT1001TPS104SSH-003T-P0.2-H

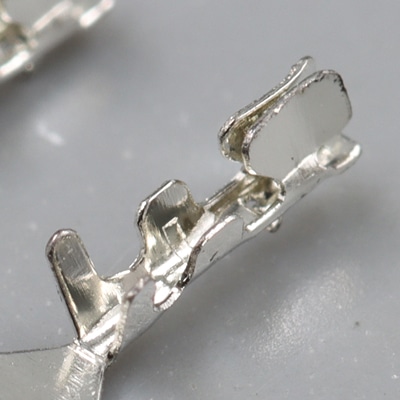

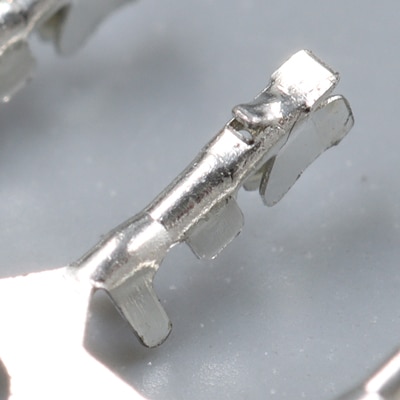

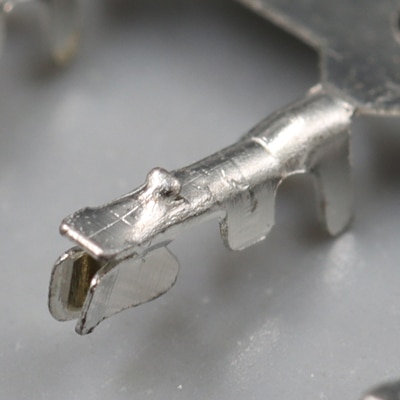

JST SH Crimp Contact SSH-003T-P0.2-H

The JST SH crimp contact SSH-003T-P0.2-H is designed with precision and performance in mind. It features a low contact resistance of 20mΩ (Max) and can withstand voltages of up to 500VAC for 1 minute. With excellent insulation resistance of at least 100MΩ, this contact is rated for a voltage of 50V AC/DC and a current of 1A AC/DC. Constructed with high-quality tin-plated phosphor bronze material, the contact has a thickness of 0.12mm. It is compatible with wire sizes ranging from AWG#28 to 32# with a maximum outer diameter of 0.6mm. Operating effectively in a temperature range of -25℃ to +85℃, this crimp contact ensures secure and reliable electrical connections.

SCT1001T: An Affordable Alternative
The SCT1001T offers a cost-effective and dependable alternative to the JST SH terminal SSH-003T-P0.2-H. This replacement terminal guarantees reliable electrical connections and cost-effective performance, making it an ideal choice for various applications. Whether you need secure connectivity for industrial, automotive, or electronics projects, the SCT1001T ensures stable and dependable connections while providing an affordable solution.

Enhanced Flexibility with Alternative Housing
The SSH-003T-P0.2-H is designed to be used with JST SH housing, and it’s also compatible with our alternative housing series, the SCT1001H. This compatibility provides you with versatile options for your projects while maintaining the reliability and security of your connections.

Explore More JST SH Components
In addition to the SSH-003T-P0.2-H contact, we offer various other JST SH components, including crimp housinghousing without flangeSMD vertical headers, and SMD right-angle headers. You can conveniently navigate our product selection to find the connectors that best suit your project’s requirements. If you have specific needs or questions, our team of engineers is ready to provide you with enthusiastic and professional assistance.
