PHD 2mm Pitch Connectors

SCT2004 Series

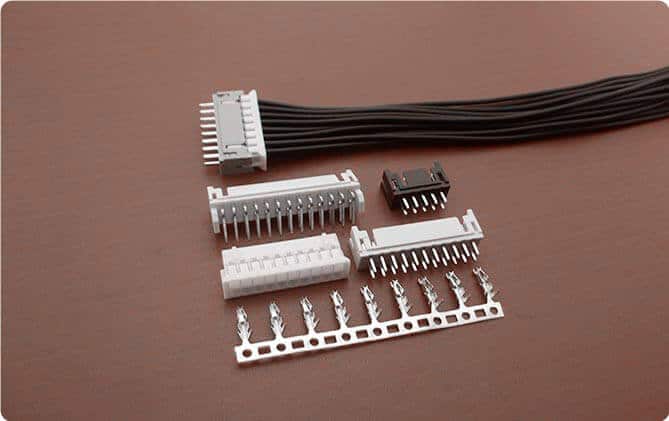

SCT2004 series are replacement of JST PHD connectors. 2.0mm pitch, Dual row version compare to PH connector, The box contact supplies stable contact performance.

Specification

Series SCT2004 Series
Contact Pitch 2.0mm
No.of Contacts 2*4 to 2*17 positions
Current 2A (AWG #24 to #28)
Compatible Cross Jst PHD Connector Series

Select Components

Cable Assemblies Refer

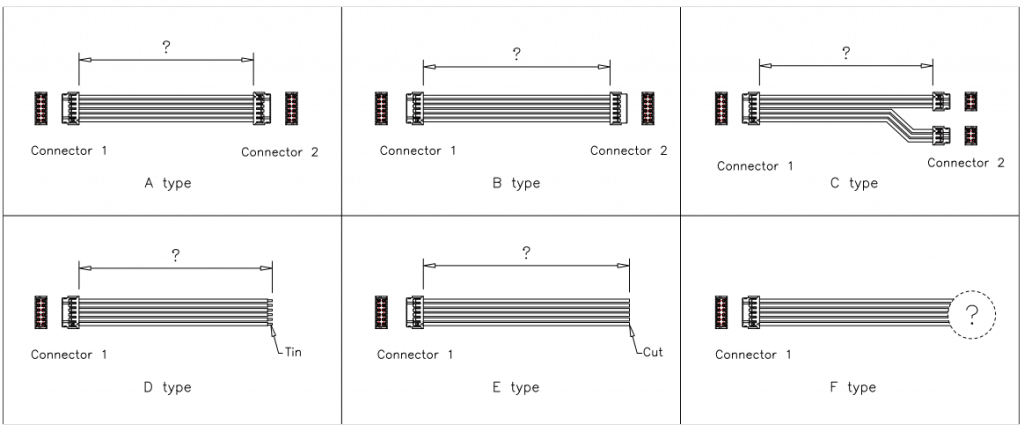

JST PHD Cable Diagram
Current Rating:2A
Voltage Rating:250V
Temperature Range:-25°C~+85°C
Contact Resistance:20m Omega Max
Insulation Resistance:1000M Omega Min
Withstanding Voltage:800V AC/minute

JST PHD Connectors: Precision in Connectivity

In the ever-evolving landscape of electronics and technology, JST PHD connectors have carved a niche for themselves as the epitome of precision and reliability. These connectors are a testament to innovation, offering a myriad of features, versatile applications, and numerous advantages. Let’s delve into what makes these connectors the go-to choice for all your connectivity needs.

JST PHD connectors are designed to offer efficient electrical connections with a current rating of 2A and a voltage rating of 250V. These connectors operate reliably in a temperature range from -25°C to +85°C, featuring low contact resistance (20mΩ max), high insulation resistance (1000MΩ min), and the capability to withstand voltage spikes up to 800V AC/minute, making them a dependable choice for various applications.

Features:

– Compact Design: JST PHD connectors are renowned for their compact and space-saving design. Their small form factor maximizes space utilization, making them ideal for applications with spatial constraints.

– High Contact Density: These connectors boast a remarkable contact density, ensuring efficient power and data transmission even in demanding environments.

– Secure Locking Mechanism: JST PHD connectors incorporate a robust locking system that guarantees secure and stable connections, even in environments prone to high levels of vibration.

– Versatile Configurations: These connectors are available in a wide range of configurations, including wire-to-wire and wire-to-board setups. This versatility caters to a diverse set of connectivity needs.

– Durable Build: Crafted from top-quality materials, the connectors are engineered to withstand wear and tear, resulting in an extended lifespan and reduced maintenance costs.

Applications:

The versatility of JST PHD connectors finds applications in various industries, including:

– Electronics Manufacturing: In the realm of electronics manufacturing, JST 2.0 mm double row connectors excel by facilitating the interconnection of circuit boards, sensors, and other critical components, ensuring precision and unwavering reliability.

– Consumer Electronics: These connectors are integral to the design of consumer electronic devices such as smartphones, tablets, and laptops, contributing to their sleek and efficient functionality, ultimately enhancing the user experience.

– Industrial Automation: In industrial settings, JST PHD connectors play a pivotal role by ensuring seamless connectivity in manufacturing processes, where reliability is paramount.

Advantages:

Choosing JST PHD connectors bestows a multitude of advantages:

– Unparalleled Reliability: JST dual row 2.0 mm pitch connectors have garnered a reputation for unmatched reliability. They minimize downtime and ensure consistent performance even in the harshest operating conditions.

– Simplicity of Installation: Thanks to their user-friendly design and secure locking mechanism, the installation process becomes straightforward, translating to reduced labor costs and minimized installation time.

– Robust Construction: Fashioned from top-tier materials, JST PHD connectors are engineered to withstand wear and tear, resulting in an extended lifespan and reduced maintenance expenditure.

In summary, JST PHD connectors, with their high contact density, secure locking mechanism, and adaptability, provide an advanced solution for connectivity needs. Their unwavering reliability, user-friendliness, and durability make them the ideal choice across a myriad of applications, ensuring your vital connections remain secure and dependable. These connectors are precision in connectivity, setting a high standard in the world of electronic interconnections.

SCT2004 serves as a reliable alternative to JST PHD connectors, providing a cost-effective and efficient solution for your connectivity needs.
