PH 2mm Pitch Connectors

SCT2001 Series

SCT2001 series are replacement of JST PH connector. 2.0mm pitch, It’s widely use wire to board connectors. Fully shrouded header, crimp style.

Specification

SeriesSCT2001 Series
Contact Pitch2.0mm
No.of Contacts2 to 16 positions
Current2A (AWG #22 to #28)
CompatibleCross Jst PH Connector Series

Cable Assemblies Refer

Current Rating:2A
Voltage Rating:250V
Temperature Range:-25°C~+85°C
Contact Resistance:20m Omega Max
Insulation Resistance:1000M Omega Min
Withstanding Voltage:800V AC/minute

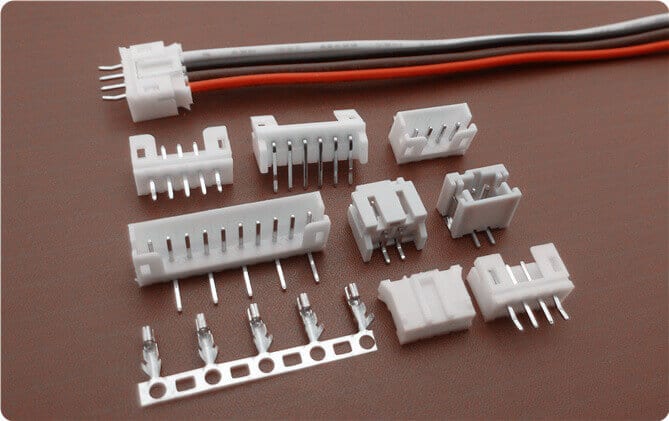

JST PH connector 2.0mm Pitch

2.0 mm JST PH Connector

  • The 2.0 mm JST PH connector is a low- profile and compact component delivering dependable service in requirements for high density connection to printed circuit boards.
  • Designed harsh environments which are frequently subjected to heat and vibration such as in heavy equipment vehicles and batteries
  • Delivers up to a current rating of 2.0 A and 250 V, applicable for American Wire Gauge (AWG) #24, #25, #26, #27, #28, #30, #31, #32.
  • Enclosing this connector is a crimp style lock designed by Scondar and a special configuration which prevents users from inverted insertion.

JST PH Connector Offers Design Flexibility in a Variety of Configurations

This is offered in different models and in various dimensions, with top or side entry configurations which might suit your specific needs.

Top entry configuration consumes a minimum of 8 mm x 4.5 mm mounting height and width, respectively; while side entry configuration consumes a minimum of 4.8 mm x 9.6 mm mounting height and width, respectively.

Overmolded Shell Feature Designed for High Density, High-Speed Harness

Manufactured with higher infill housing, the PH 2.0mm connector is suitable for high density and crowded applications, withstanding higher strain and mechanical stress.

A Variety of models to choose from

In addition to the above flexibility in configurations of the JST PH 2.0 mm pitch connector, Scondar also offers this connector with different number of circuits ranging from 2 to 16 which would suit your specific needs.

An Added Layer of Product Durability and Connector Reliability

No alloy was used in fastening the wires to the board, but through the use a crimping method, which makes it more flexible and mechanically stronger.

The crimps are well engineered to be air-tight, preventing oxygen and moisture from reaching the metals, causing corrosion. Thus, the connector can be easily removed from the head without holding the wires.

Furthermore, it prevents the cables from being easily disconnected due to entangled routing, heavy loads or vibration.

Robust and Ruggedized Terminal Enhancements

Reliable electrical connection, even under conditions of low current and low voltage, is guaranteed with its two point contact design.

Surface Mount Option with Strong Solder Tabs

The two solder tabs assure that retention of header to PCB connection and act as a strain relief for the SMT solder tails minimizing the chance of solder joints breakage.

Optimized Safety Feature for Electrical Shock Hazard

With its improved product enhancement, the PH connector has the capability of withstanding voltage of 500 V AC per minute, which means to say that the insulation is sufficient to protect the user from electrical shock, overheating and fire.

Savvy Material and Finish

The header contact is made up of copper alloy, tin plated over a phosphor bronze material.

The JST PH housing is made of Nylon66 UL94V-0 natural ivory. These housings are available with or without protrusions.

The wafer is made up of Nylon66/46 UL94V-0.

The solder tabs are made up of brass, copper undercoated or tin-plated. These two solder tabs assure that retention of header to PCB connection and act as a strain relief for the SMT solder tails minimizing the chance of solder joints breakage.

Vast Temperature Range with Relatively Low Insulation and Contact resistance

There’s a dimple at the center of the contact which ensures positive contact and low contact resistance at all times. Insulation resistance and contact resistance are of 100 Mega ohm per minute minimum and 20 Mega ohm maximum, respectively.

The temperature range for JST PH connector is -25 degrees centigrade to +85 degrees centigrade. This range is based on the rise of temperature with increasing current.

Applicable in Chassis Wiring and Power Transmission Wiring

The 2.0 mm Pitch Connector can be used for AC and DC operations with a rated current of 1.0 amperes and 50 Volts. It is applicable in both chassis wiring and power transmission wiring.

Fully Shrouded Header

The PH pin header of the connector is wrapped with a thin plastic guide box around it good for preventing cable connection mishaps and it also provides good guidance for the mating connector.

Twin U-slot section

Twin U-slot section or twinaxial cable has a pair of insulated conductors where the conductors are run parallel with one another. This is commonly used in high speed balanced-mode multiplexed transmission in large computer systems, in which the signals are carried by both conductors in a U-shaped configuration. This ensures reliable connection and provides greater noise immunity.

Item Packaging

The housing and wafer package are available as 1000 Pcs per bag.

For terminal purpose the available package offers 15,000 pcs per bag.

For wire harness, you can ask for custom materials with 1000 Pcs/bag.

2.0 mm pitch serves as the best choice for densely crowded electronics systems for its small, square-edged configuration, ruggedized and shock resistant feature.

Caters Power, Signal and Grounding Contact Needs

JST PH connector can either stand as power contacts, signal contacts or both as power and signal contacts or a signal and grounding contact. The wiring harness interconnects the PCB to various components that sends signals and power to other electronic devices.

Safe and Reliable

2.0 mm pitch connectors ensures safety, system protection and performance with its bonded metallic conduits and multiple grounding points preventing fire hazards, component damage, overheating and possible electrocution.

ROHS Compliant

PH connector series does not contain restricted chemicals in concentrations not complying with ROHS standards. Thus, for its components, the products can be worked upon at high temperatures required by lead-free soldering.

Automotive, Heavy Duty Military and Marine

PH 2.0mm connectors are for not only suitable for densely packed equipment requiring weight reduction and downsizing but also for automotive connections, built to be robust in tough and harsh conditions.

Popularity in Battery Connections

JST PH 2mm pitch connector series are also popular in batteries such as in rechargeable battery packs, battery balancers, battery eliminator circuits. Battery connections rely on the ability of the current to pass reliable and solid current. This prevents overheating in the circuit and voltage drop.
