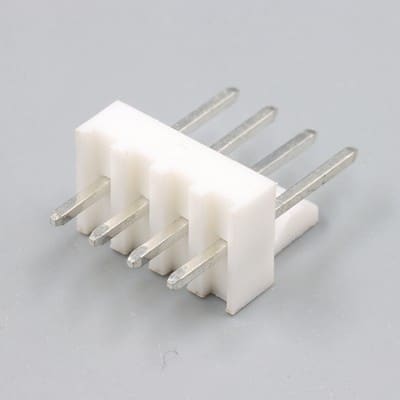

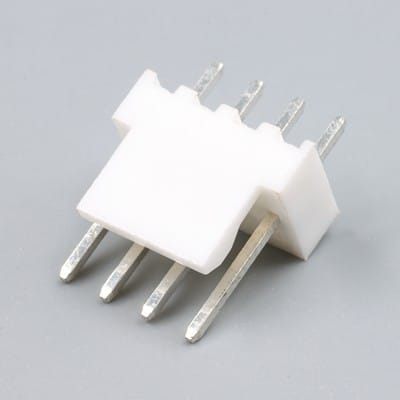

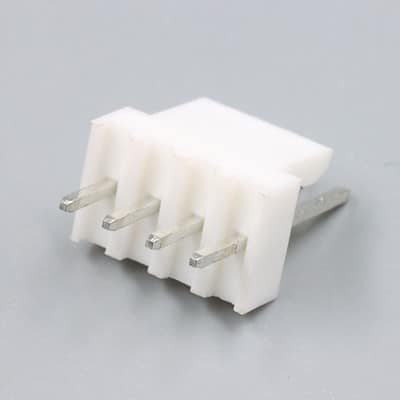

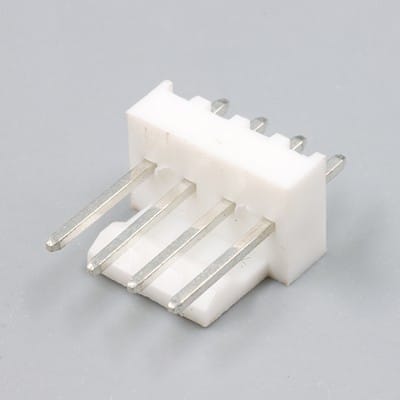

SCT2548WV
Specification
| Part Name | Vertical Header |
| Pitch | 2.54mm |
| Series | SCT2548 |
| Compatible | TE MTA-100 647050 Series |
Part No. Cross Reference
| SCONDAR P/N | TE P/N | TE P/N | Circuits |
|---|---|---|---|
| SCT2548WV-02C0WT | 3-647050-2 | 3-647295-2 | 2 |
| SCT2548WV-03C0WT | 3-647050-3 | 3-647295-3 | 3 |
| SCT2548WV-04C0WT | 3-647050-4 | 3-647295-4 | 4 |
| SCT2548WV-05C0WT | 3-647050-5 | 3-647295-5 | 5 |
| SCT2548WV-06C0WT | 3-647050-6 | 3-647295-6 | 6 |
| SCT2548WV-07C0WT | 3-647050-7 | 3-647295-7 | 7 |
| SCT2548WV-08C0WT | 3-647050-8 | 3-647295-8 | 8 |
| SCT2548WV-09C0WT | 3-647050-9 | 3-647295-9 | 9 |
| SCT2548WV-10C0WT | 4-647050-0 | 4-647295-0 | 10 |
| SCT2548WV-11C0WT | 4-647050-1 | 4-647295-1 | 11 |
| SCT2548WV-12C0WT | 4-647050-2 | 4-647295-2 | 12 |
| SCT2548WV-13C0WT | – | – | 13 |
| SCT2548WV-14C0WT | – | – | 14 |
| SCT2548WV-15C0WT | – | – | 15 |
| SCT2548WV-16C0WT | – | – | 16 |
| SCT2548WV-17C0WT | – | – | 17 |
| SCT2548WV-18C0WT | – | – | 18 |
| SCT2548WV-19C0WT | – | – | 19 |
| SCT2548WV-20C0WT | – | – | 20 |
| SCT2548WV-21C0WT | – | – | 21 |
| SCT2548WV-22C0WT | – | – | 22 |
| SCT2548WV-23C0WT | – | – | 23 |
| SCT2548WV-24C0WT | – | – | 24 |
