SCT2548HIVA
Specification

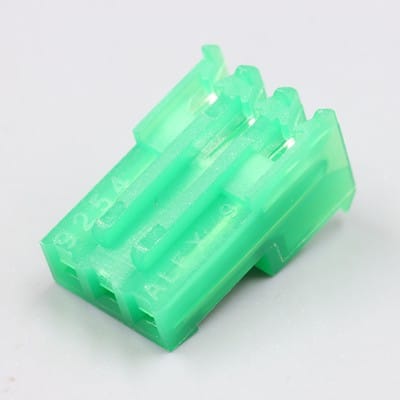

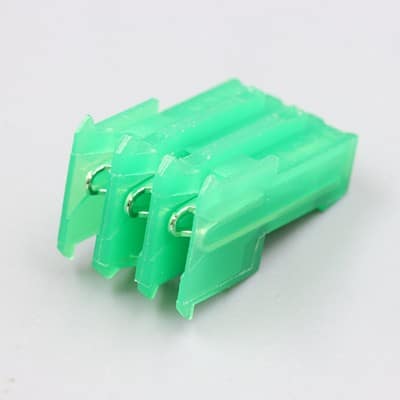

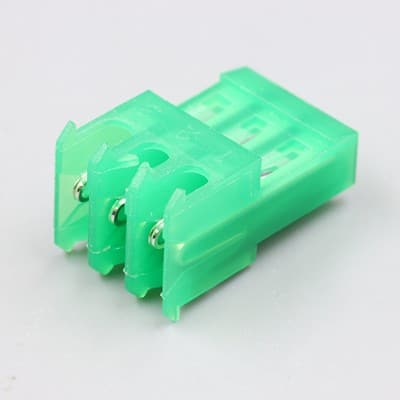

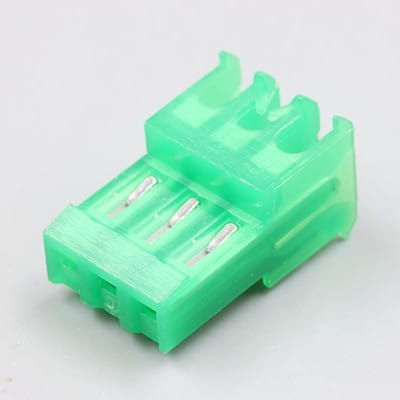

| Part Name | Feed Thru IDC Housing |
| Pitch | 2.54mm |
| Series | SCT2548 |
| Compatible | TE MTA-100 640620 Series |
Part No. Cross Reference
| SCONDAR P/N | TE P/N | TE P/N | TE P/N | TE P/N | Circuits |
|---|---|---|---|---|---|
| SCT2548HIVA-02Cxx | 3-640620-2 | 3-640621-2 | 3-640622-2 | 3-640623-2 | 2 |
| SCT2548HIVA-03Cxx | 3-640620-3 | 3-640621-3 | 3-640622-3 | 3-640623-3 | 3 |
| SCT2548HIVA-04Cxx | 3-640620-4 | 3-640621-4 | 3-640622-4 | 3-640623-4 | 4 |
| SCT2548HIVA-05Cxx | 3-640620-5 | 3-640621-5 | 3-640622-5 | 3-640623-5 | 5 |
| SCT2548HIVA-06Cxx | 3-640620-6 | 3-640621-6 | 3-640622-6 | 3-640623-6 | 6 |
| SCT2548HIVA-07Cxx | 3-640620-7 | 3-640621-7 | 3-640622-7 | 3-640623-7 | 7 |
| SCT2548HIVA-08Cxx | 3-640620-8 | 3-640621-8 | 3-640622-8 | 3-640623-8 | 8 |
| SCT2548HIVA-09Cxx | 3-640620-9 | 3-640621-9 | 3-640622-9 | 3-640623-9 | 9 |
| SCT2548HIVA-10Cxx | 4-640620-0 | 4-640621-0 | 4-640622-0 | 4-640623-0 | 10 |
| SCT2548HIVA-11Cxx | 4-640620-1 | 4-640621-1 | 4-640622-1 | 4-640623-1 | 11 |
| SCT2548HIVA-12Cxx | 4-640620-2 | 4-640621-2 | 4-640622-2 | 4-640623-2 | 12 |
| SCT2548HIVA-13Cxx | 4-640620-3 | 4-640621-3 | 4-640622-3 | 4-640623-3 | 13 |
| SCT2548HIVA-14Cxx | 4-640620-4 | 4-640621-4 | 4-640622-4 | 4-640623-4 | 14 |
| SCT2548HIVA-15Cxx | 4-640620-5 | 4-640621-5 | 4-640622-5 | 4-640623-5 | 15 |
| SCT2548HIVA-16Cxx | 4-640620-6 | 4-640621-6 | 4-640622-6 | 4-640623-6 | 16 |
| SCT2548HIVA-17Cxx | 4-640620-7 | 4-640621-7 | 4-640622-7 | 4-640623-7 | 17 |
| SCT2548HIVA-18Cxx | 4-640620-8 | 4-640621-8 | 4-640622-8 | 4-640623-8 | 18 |
| SCT2548HIVA-19Cxx | 4-640620-9 | 4-640621-9 | 4-640622-9 | 4-640623-9 | 19 |
| SCT2548HIVA-20Cxx | 5-640620-0 | 5-640621-0 | 5-640622-0 | 5-640623-0 | 20 |
| SCT2548HIVA-21Cxx | 5-640620-1 | 5-640621-1 | 5-640622-1 | 5-640623-1 | 21 |
| SCT2548HIVA-22Cxx | 5-640620-2 | 5-640621-2 | 5-640622-2 | 5-640623-2 | 22 |
| SCT2548HIVA-23Cxx | 5-640620-3 | 5-640621-3 | 5-640622-3 | 5-640623-3 | 23 |
| SCT2548HIVA-24Cxx | 5-640620-4 | 5-640621-4 | 5-640622-4 | 5-640623-4 | 24 |
| – | 5-640620-5 | 5-640621-5 | 5-640622-5 | 5-640623-5 | 25 |
| – | 5-640620-6 | 5-640621-6 | 5-640622-6 | 5-640623-6 | 26 |
| – | 5-640620-7 | 5-640621-7 | 5-640622-7 | 5-640623-7 | 27 |
| – | 5-640620-8 | 5-640621-8 | 5-640622-8 | 5-640623-8 | 28 |
