IL-S 2.0mm Pitch Connectors

Home » Wire to Board Connectors » IL-S 2.0mm Pitch Connectors

SCT2005 Series

SCT2005 Series are compatible with JAE IL-S 2.0mm pitch series connector.

Specification

Series SCT2005 Series
Contact Pitch 2.0mm
No.of Contacts 2 to 16 positions
Current 3A (AWG #22 to #28)
Compatible Cross JAE IL-S Connector Series

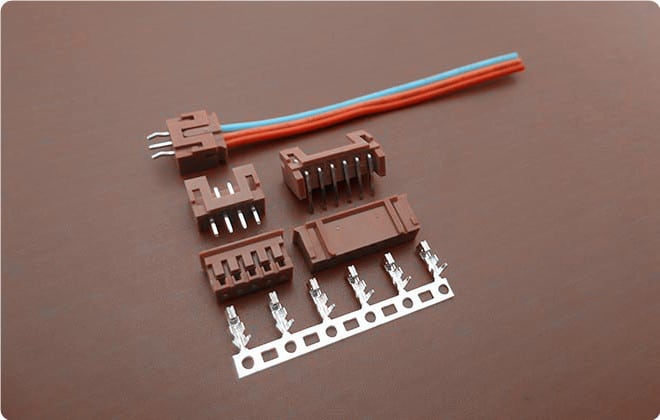

JAE IL-S connector
Ask for a quote
ASK FREE SAMPLES

Specification (PDF)

Select Components

JAE IL-S 2.0 female terminal
JAE IL-S 2.0 vertical header
JAE IL-S 2.0 right angle header

RECEPTACLE HOUSING

TERMINAL

VERTICAL HEADER

RIGHT-ANGLE HEADER

SCT2005 SERIES CONNECTORS

Items Part No. Photo Spec.
Housing SCT2005H-xxBBR131 Drawing
Terminal SCT2005TPS131 Drawing
Vertical Header SCT2005WV-xxB2BR131 Drawing
right-angle Header SCT2005WR-xxB2BR131 Drawing

Cable Assemblies Refer

SCT2005
Current Rating: 3A
Voltage Rating: 250V
Temperature Range: -25°C~+85°C
Contact Resistance: 20m Omega Max
Insulation Resistance: 1000M Omega Min
Withstanding Voltage: 1000V AC/minute
