SSHL

SCT1258T

Specification

Part Name Terminal
Pitch 1.25mm
Series SCT1258
Compatible SSHL Series

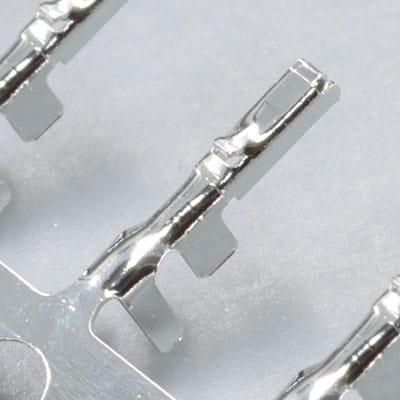

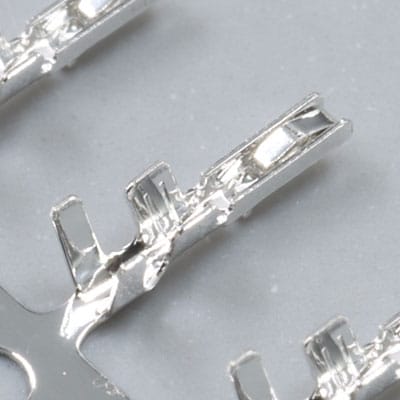

JST GH Crimp Contact SSHL-002T-P0.2 Diagram

Part No. Cross Reference

SCONDAR P/NJST P/N
SCT1258TPS101SSHL-002T-P0.2

SSHL-002T-P0.2: The JST GH Crimp Contact for Reliable Connections

In the world of electrical connectors, reliability and performance are of utmost importance. JST GH connectors are trusted for their quality, and the SSHL-002T-P0.2 crimp contact is no exception. Designed for use with JST GH GHR series housing, this component ensures secure and dependable connections in a wide range of applications. Let’s explore its key specifications and features.

Specifications of SSHL-002T-P0.2:

– Current Rating: With a robust current rating of 1A AC/DC, SSHL-002T-P0.2 delivers a steady and consistent flow of electricity, making it suitable for various applications.
– Voltage Rating: It is rated for 150V AC/DC, providing a safe operating range for your electrical systems.
– Insulation Resistance: SSHL-002T-P0.2 boasts a minimum insulation resistance of 100MΩ, minimizing the risk of electrical leakage or interference, and ensuring your connections remain stable.
– Contact Resistance: The contact resistance is capped at a maximum of 20mΩ, assuring efficient electrical conduction and reliable performance.
– Withstanding Voltage: This crimp contact can withstand a voltage of up to 500VAC for a minimum of time, demonstrating its durability and safety under varying conditions.
– Operating Temperature: Designed to operate effectively in a wide temperature range from -40°C to +85°C, this crimp contact can handle extreme as well as standard environmental conditions.

Material Composition of SSHL-002T-P0.2:

– Wire Range: SSHL-002T-P0.2 accommodates wire sizes ranging from 26AWG to 30AWG.
– Insulation O.D: It can handle wires with a maximum insulation outer diameter of 0.9mm.
– Material: The contact is constructed from phosphor bronze, known for its excellent electrical conductivity, and is plated with a layer of tin to enhance performance and corrosion resistance.

Versatile and Reliable Connections:

SSHL-002T-P0.2 is engineered to provide secure and reliable wire-to-board connections, specifically designed for compatibility with JST GH GHR series housing, like GHR-02V-S, GHR-03V-S, GHR-04V-S, GHR-05V-S, GHR-06V-S and so on. These connectors adhere to high standards and are built to ensure safety and performance, making them suitable for a wide range of applications.

In conclusion, SSHL-002T-P0.2 is your trusted partner for reliable connections, capable of withstanding challenging conditions while ensuring your electrical systems perform at their best. Whether you need dependable connectivity for industrial, automotive, or electronics projects, this JST GH crimp contact guarantees reliability and peace of mind.

SCT1258TPS101 serves as an economical and reliable replacement for SSHL-002T-P0.2 crimp contacts from JST GH connectors. Additionally, explore our alternative SCT1258H series of JST GH housing options for even more versatile connectivity solutions.
