FI-X 1.0mm Pitch Connectors

SCT1005 Series

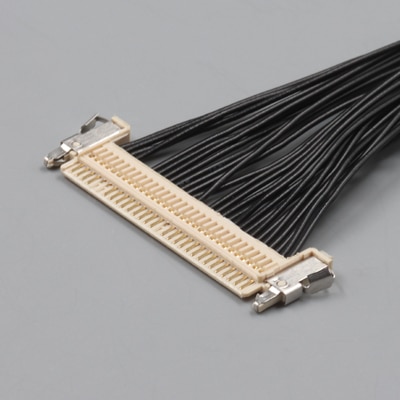

SCT1005 Series are replaced by JAE FI-X connector 1mm pitch for the interface of LCD. Board-to-Cable for high-density packaging. Low-profile SMT type receptacle 1.0mm high on the board.


SeriesSCT1005 Series
Contact Pitch1.0mm
No.of Contacts20, 30 positions
Current0.5A (AWG #30 to #32)
CompatibleCross JAE FI-X Connector Series

Select Components

Part No.SCT1005
Compatible:JAE FI-X series connector
Pitch – Mating Interface1.0mm
Applicable wire:AWG#30-#32 (Max.OD:0.6mm)
Current Rating:0.5A
Voltage Rating:200V
Temperature Range:-40°C~+85°C
Contact Resistance:20m Omega Max
Insulation Resistance:100M Omega Min
Withstanding Voltage:500V AC/minute

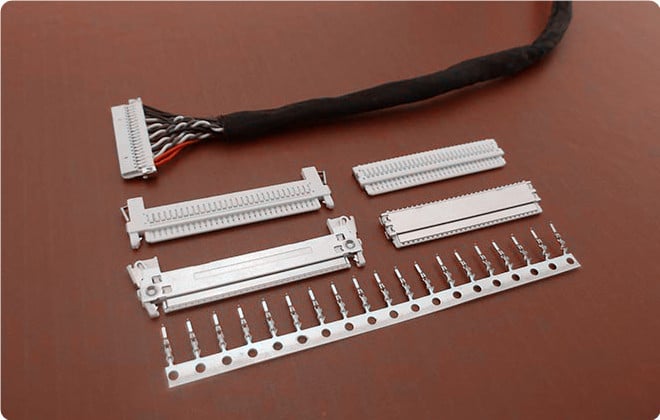

JAE FI-X Series connectors, meticulously engineered for thin LCD interface applications with a focus on high-speed differential transmissions.

The JAE FI-X Series connectors offer impressive electrical specifications, including compatibility with thin wires in the range of AWG#30-#32 with a maximum outer diameter of 0.6mm. These connectors provide a current rating of 0.5A and a voltage rating of 200V, making them suitable for various applications. With a wide temperature range from -40°C to +85°C, they can perform reliably in diverse environments. Additionally, they feature a contact resistance of 20mΩ max and insulation resistance of 100MΩ min, along with withstanding voltage of 500V AC per minute, ensuring dependable electrical connections.

These connectors are the perfect choice for compact notebook PCs and various other applications where compact size and minimal weight are crucial considerations. Explore their remarkable features, applications, and advantages:

Features of JAE FI-X:

– High-Speed Differential Transmission: The FI-X Series connectors are fully compatible with high-speed differential transmission, offering high-level impedance matching within the range of 90 to 100 ohms. This ensures reliable data transmission in demanding applications.

– Enhanced Grounding: These connectors significantly improve the ground condition, directly affecting electromagnetic interference (EMI) characteristics. Achieve superior signal integrity and reduced interference for enhanced performance.

– Space-Saving Design: The bottom-type structure of these connectors provides a remarkably low profile with a connector height of just 1.5mm (0.059″) and 1mm (0.039″) height above the PCB. This space-saving design is essential for compact and lightweight devices.

– Impedance Matching: The connectors feature a 1mm (0.039″) contact pitch with built-in impedance matching. This ensures consistent signal quality in applications that require precise impedance control.

– Stable Grounding: The FPC (Flexible Printed Circuit) design provides stable grounding to the PCB, further enhancing signal reliability and reducing the risk of interference.

– Versatile Cable Compatibility: These connectors are compatible with a variety of cables, including thin wire coaxial cables and flex circuitry. This versatility allows for flexible design options in various applications.

– Secure Connections: The friction lock housing feature ensures secure and dependable connections, even in applications subject to vibrations and movement.

Applications of JAE FI-X:

– Compact Notebook PCs: The FI-X Series connectors are an ideal choice for compact laptops, ensuring high-speed data transmission and reliable performance.

– LCD Interfaces: Designed specifically for thin LCD interface applications, these connectors support the demands of modern display technologies.

– High-Speed Data Transmission: Any application requiring high-speed differential transmission can benefit from these connectors, ensuring data integrity and high performance.

– EMI-Sensitive Environments: The enhanced grounding and reduced EMI characteristics make these connectors suitable for applications where electromagnetic interference is a concern.

Advantages of JAE FI-X:

– Reliable Performance: High-speed differential transmission, impedance matching, and stable grounding guarantee reliable and consistent performance.

– Space Efficiency: The low-profile design and compact dimensions save space and weight, making them suitable for slim and lightweight devices.

– Versatile Design: The versatility in cable compatibility and impedance control allows for adaptable design options in various applications.

Elevate your applications with the JAE FI-X Series connectors, ensuring high-speed data transmission, reduced interference, and space-efficient designs for compact electronic devices.

SCT1005 serves as a cost-effective and reliable alternative to the JAE FI-X Series connectors. This versatile replacement offers compatibility with high-speed differential transmissions, providing consistent signal integrity. It’s an ideal choice for applications that demand high-speed data transmission in a space-efficient and lightweight design, ensuring reliable performance and reduced electromagnetic interference. Make the switch to SCT1005 for a dependable and cost-efficient solution in your compact electronic devices.
