AMP CT 2.0mm Pitch Connectors

Home » Wire to Board Connector » AMP CT 2.0mm Pitch Connectors

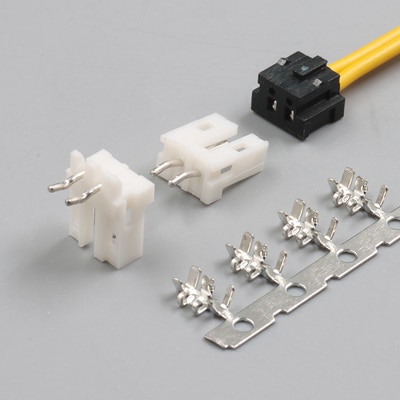

SCT2007 Series

SCT2007 Series are replaced by AMP 2.0mm pitch wire to board series connectors.

Specification

Series	SCT2007 Series
Contact Pitch	2.0mm
No.of Contacts	2 to 16 positions
Current	1A (AWG #22 to #26)
Compatible	Cross AMP2.0 Connector Series

SCT2007 SERIES CONNECTORS

Items	Part No.	Spec.
Housing	SCT2007H-xxBWT112	Drawing
Terminal	SCT2007TPS112	Drawing
Vertical Header	SCT2007WV-xxB0WT602	Drawing
Right-angle Header	SCT2007WR-XXB0WT602	Drawing

Cable Assemblies Refer

General Specification

Current Rating:	3A
Voltage Rating:	250V
Temperature Range:	-25°C~+85°C
Contact Resistance:	20m Omega Max
Insulation Resistance:	1000M Omega Min
Withstanding Voltage:	1000V AC/minute
