100G-NPBX

FFC/FPC Connector, SMT(Surface Mount), Right angle, Bottom Contact Style, ZIF Receptacle

Series1.00mm G Type Series
Contact Pitch1.00mm
No.of Contacts04 to 40 positions
Height2.00mm
PackageReel,Tube

Specification

Voltage Rating:50V AC/DC
Current Rating:0.5A AC/DC
Withstand voltage:500V AC/minute
Contact resistance:30mΩ MAX
Insulation resistance:500MΩ MIN
Working temperature:-25℃~+85℃
Applicable FPC/FFC:1.00mm
MATERIAL
Housing:LCP UL94-V0
Contact:Phosphor bronze Tin-plated

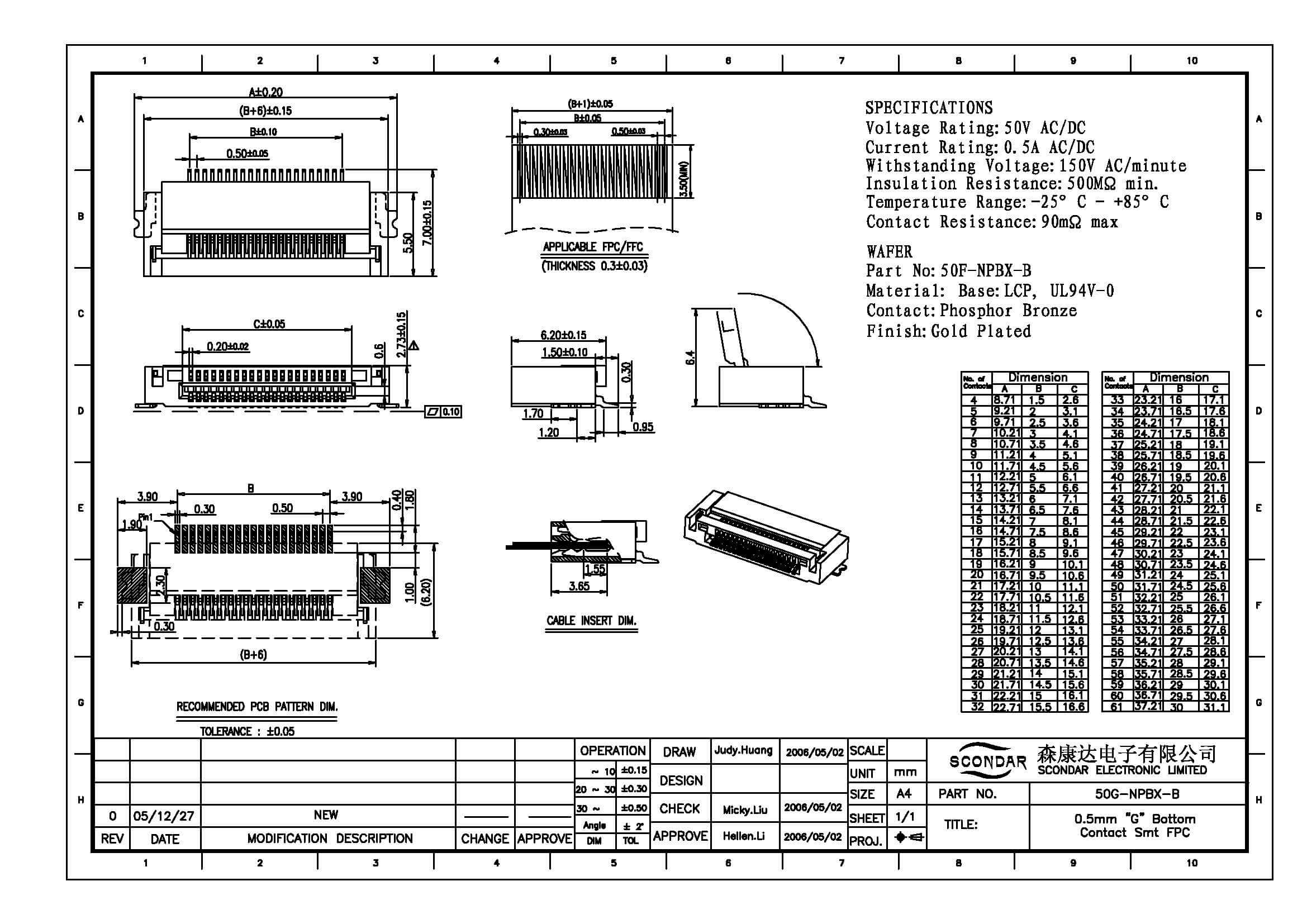

Drawing

Part No.

FPC
