100B-NPLB

FFC/FPC Connector, SMT(Surface Mount), Vertical, ZIF Receptacle

Series 1.00mm B Type Series
Contact Pitch 1.00mm
No.of Contacts 03 to 40 positions
Height 2.80mm
Package Reel,Tube

Specification

Voltage Rating: 50V AC/DC
Current Rating: 0.5A AC/DC
Withstand voltage: 500V AC/minute
Contact resistance: 30mΩ MAX
Insulation resistance: 800MΩ MIN
Working temperature: -25℃~+85℃
Applicable FPC/FFC: 1.00mm
MATERIAL
Housing: LCP UL94-V0
Contact: Phosphor bronze Tin-plated

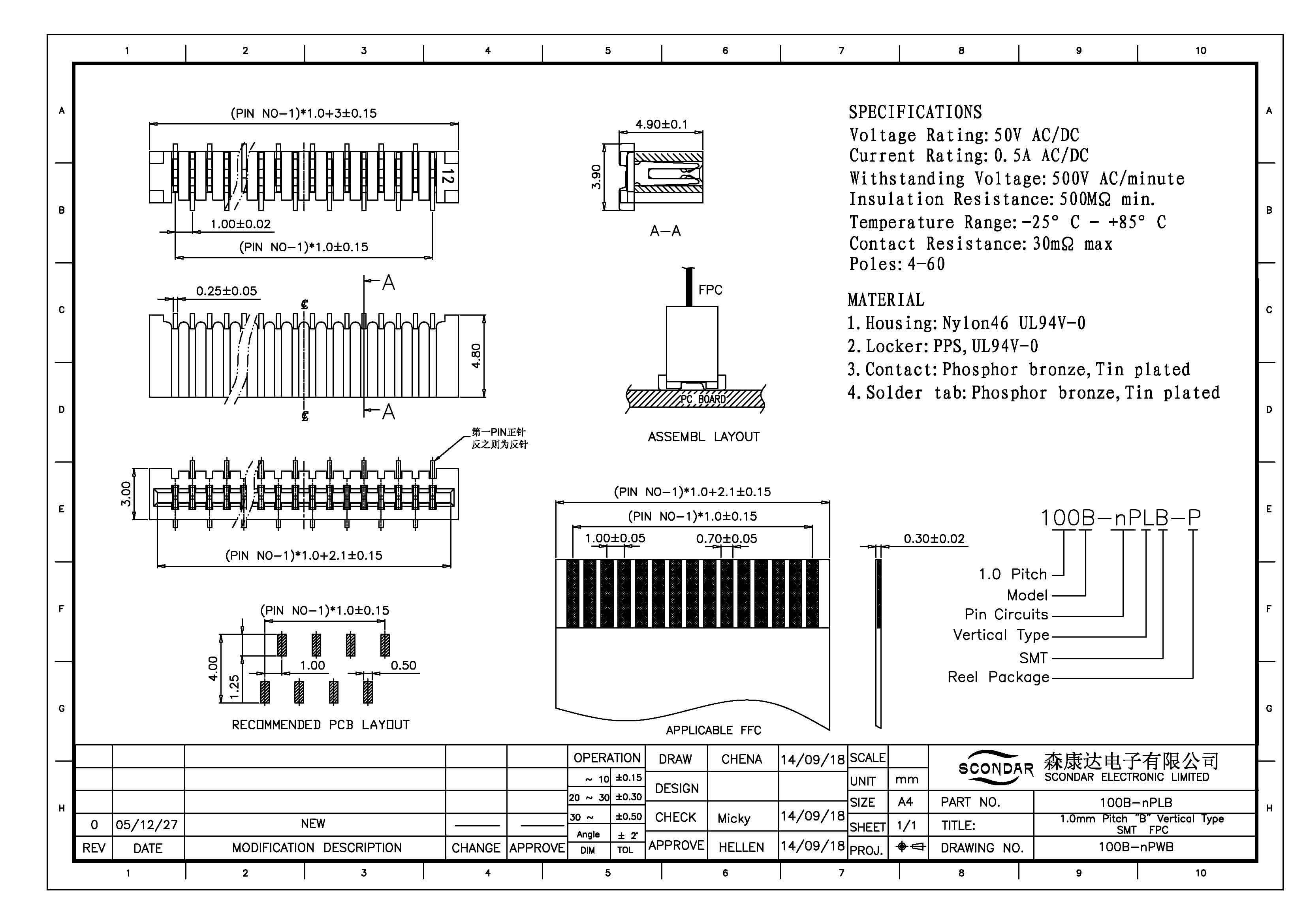

Drawing

Part No.

FPC
