SZN 1.5mm Pitch Connectors

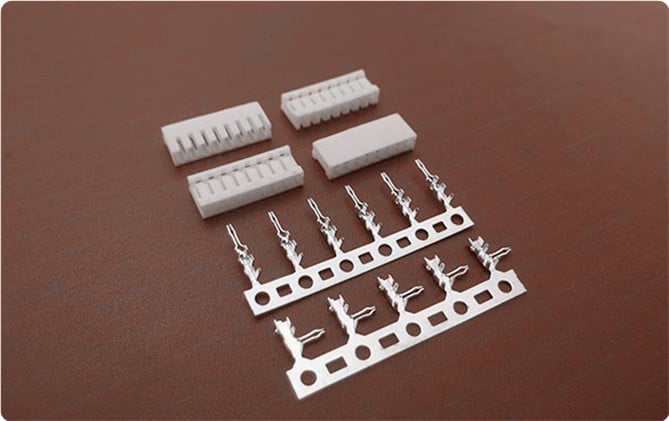

SCT1502 Series

SCT1502 series are compatible with JST SZN Series Board-In connectors.

Specification

SeriesSCT1502 Series
Contact Pitch1.5mm
No.of Contacts2 to 15 positions
Current1A (AWG #26 to #30)
CompatibleCross JST SZN Connector Series

Select Components

ItemSpec.
Part No.SCT1502
Compatible:JST SZN series connector
Pitch – Mating Interface1.5mm
Circuits2-15
Applicable wire:AWG#26-#30 (Max.OD:1.3mm)
Current Rating:1A
Voltage Rating:50V
Temperature Range:-25°C~+85°C
Contact Resistance:20m Omega Max
Insulation Resistance:500M Omega Min
Withstanding Voltage:500V AC/minute

JST SZN series, a solution that redefines connectivity with its slim, low-profile design.

The JST SZN connectors are designed to accommodate a range of wire sizes from AWG#26 to #30, with a maximum outer diameter of 1.3mm. These connectors offer a current rating of 1A and a voltage rating of 50V, making them suitable for various low-power applications. Operating within a temperature range of -25°C to +85°C, they maintain a maximum contact resistance of 20mΩ and a minimum insulation resistance of 500MΩ. These connectors are capable of withstanding voltages of up to 500V AC per minute, ensuring reliable electrical connections across a range of environments and conditions.

With a mere 4.25mm mounting height and a svelte 2.4mm thickness, these board-in connectors are ideal for direct soldering onto printed circuit boards. The contact’s resilient solder tail ensures straightforward assembly, while housing lances simplify contact insertion. Let’s explore the exceptional features, diverse applications, and inherent advantages of the JST SZN series:

Features of JST SZN:

– Slim Low-Profile Design: The connectors stand out with their slim and low-profile design, making them an ideal choice for applications with limited space constraints.

– Housing Lances: These connectors are equipped with housing lances that facilitate the insertion of contacts, simplifying the assembly process.

– Easy Mounting: With straightforward mounting onto printed circuit boards, the connectors ensure hassle-free integration into your projects.

– Rugged Contact Construction: The rugged contact construction enhances the durability and longevity of these connectors, ensuring they can withstand demanding conditions.

Applications of JST SZN:

– Consumer Electronics: The connectoris well-suited for various consumer electronic products where compact and reliable connections are a priority.

– Industrial Applications: These connectors find their place in industrial equipment and automation systems, guaranteeing dependable connections for seamless operations.

– Telecommunications: Ideal for use in network devices and infrastructure, the JST SZN connectors ensure stable and efficient connections.

– Medical Devices: Precision and reliability are crucial in medical equipment, making the connectors a suitable choice for patient-care devices and healthcare IT.

Advantages of JST SZN:

– Space Optimization: The slim, low-profile design allows for effective space utilization in applications with spatial restrictions.

– Easy Integration: These connectors are designed for easy mounting on printed circuit boards, simplifying the assembly process.

– Reliability: With rugged contact construction, the connectors provide a reliable and long-lasting solution for your connectivity needs.

Experience the benefits of the JST SZN series connectors, designed to streamline your assembly process, optimize space, and ensure robust and dependable connections across a diverse range of applications.

SCT1502 presents an economical and reliable alternative to the JST SZN series, offering similar features and performance. These connectors are designed for space-optimized, low-profile connectivity and can seamlessly replace their JST counterparts. With a focus on cost-efficiency and robust connections, SCT1502 ensures dependable performance in various applications.
