SCN 2.5mm Pitch Connectors

SCT2517 Series

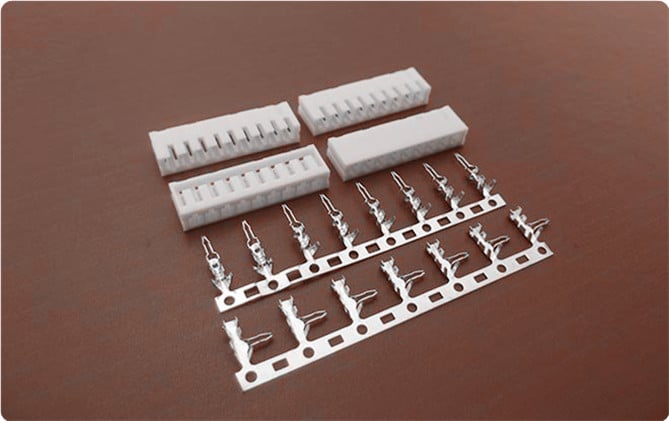

SCT2517 Series are compatible with JST SCN connectors. Features a 2.5 mm pitch multi-circuit board-in connector designed for high-density mounting on printed circuit boards, offering efficient and economical solutions for consumer electronics and more.

Specification

SeriesSCT2517 Series
Contact Pitch2.5mm
No.of Contacts2 to 16 positions
Current3A (AWG #26 to #30)
CompitableCross JST SCN Connector Series
Current Rating:2A
Voltage Rating:250V
Temperature Range:-25°C~+85°C
Contact Resistance:20m Omega Max
Insulation Resistance:800M Omega Min
Withstanding Voltage:800V AC/minute

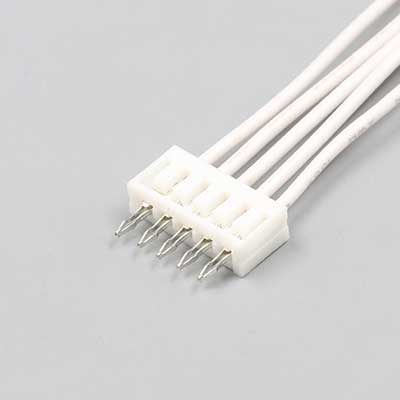

JST SCN: Empowering High-Density PCB Mounting

The JST SCN connector boasts a robust set of specifications, including a current rating of 2A and a voltage rating of 250V. It operates effectively within a temperature range of -25°C to +85°C, with contact resistance capped at 20mΩ. The connector offers excellent insulation resistance, with a minimum of 800MΩ, and can withstand voltage of up to 800V AC per minute, ensuring reliable and efficient electrical connections in various applications.

Features of JST SCN:

1. Efficient 2.5mm Pitch: The connector offers a 2.5mm pitch, making it an ideal solution for high-density mounting on printed circuit boards.

2. User-Friendly Contact Insertion: Easily insert contacts into the housing, streamlining the assembly process.

3. Secure PCB Mounting: This connector system ensures a secure and reliable mounting on printed circuit boards, reducing the risk of disconnections or malfunctions.

4. Versatile Contacts: The connector provides two types of contacts, adding flexibility to various electronic product applications.

Applications of JST SCN Connector:

JST SCN is a versatile connector system that caters to a broad spectrum of consumer-oriented electronic products. These applications include VCRs, car stereo systems, audio products, and numerous other electronic devices, making it a flexible solution for diverse connectivity needs.

Advantages of JST SCN:

– High-Density Mounting: The connector excels in high-density PCB mounting, allowing efficient use of space on electronic boards.

– Easy Assembly: With user-friendly contact insertion, the assembly process becomes more straightforward and time-efficient.

– Reliable Connections: The connector system ensures secure mounting on PCBs, reducing the risk of disconnections or performance issues in electronic products.

SCT2517 presents an economically efficient alternative to the JST SCN connector, offering reliable performance in various electrical applications. This cost-effective solution maintains the quality and specifications required for your connections, ensuring a seamless transition for your projects. Upgrade your connections with SCT2517 for dependable and budget-conscious electrical solutions.
