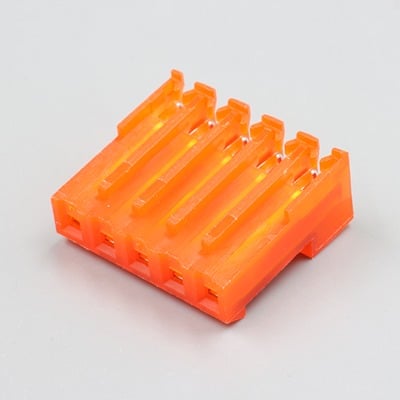

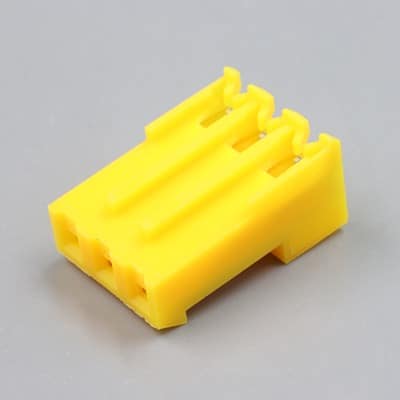

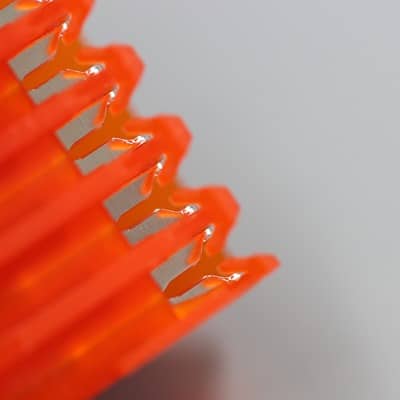

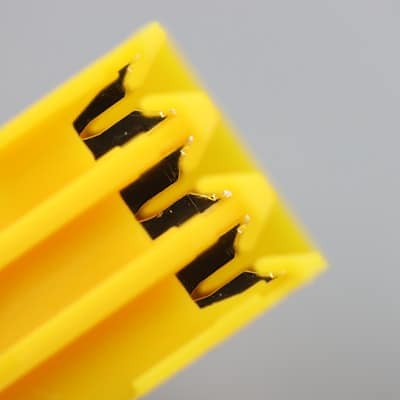

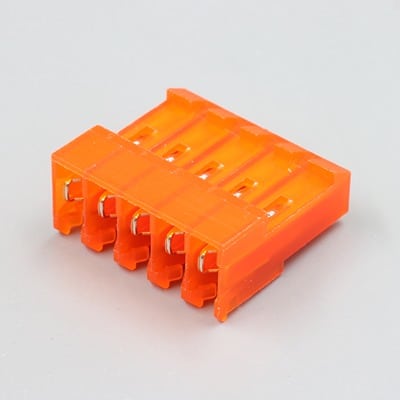

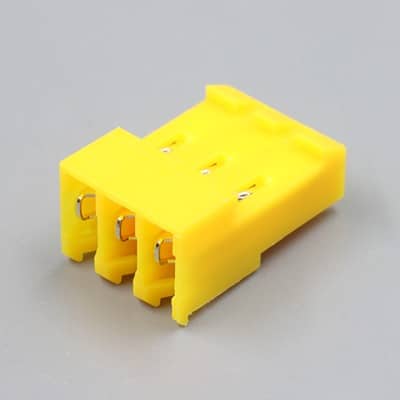

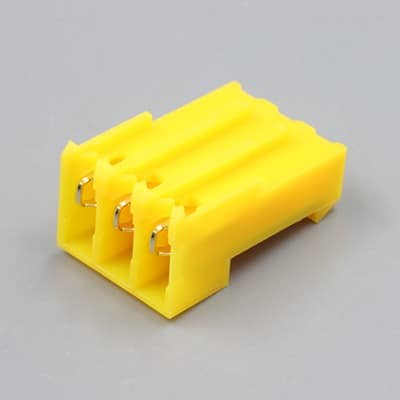

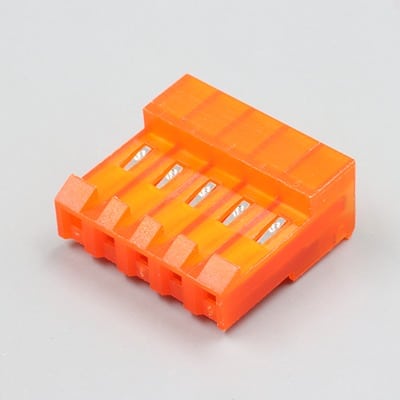

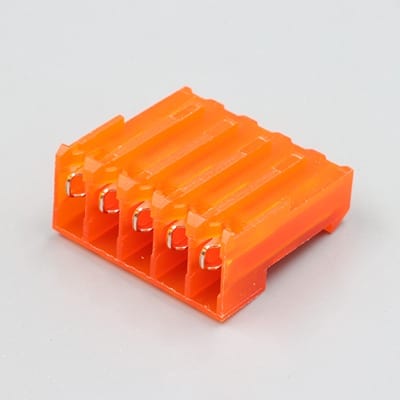

SCT3963HIRA
Specification
| Part Name | Closed End IDC Housing |
| Pitch | 3.96mm |
| Series | SCT3963 |
| Compatible | TE MTA-156 640426 Series |
Part No. Cross Reference
| SCONDAR P/N | TE P/N | TE P/N | TE P/N | TE P/N | Circuits |
|---|---|---|---|---|---|
| SCT3963HIRA-02Cxx | 3-640426-2 | 3-640427-2 | 3-640428-2 | 3-640429-2 | 2 |
| SCT3963HIRA-03Cxx | 3-640426-3 | 3-640427-3 | 3-640428-3 | 3-640429-3 | 3 |
| SCT3963HIRA-04Cxx | 3-640426-4 | 3-640427-4 | 3-640428-4 | 3-640429-4 | 4 |
| SCT3963HIRA-05Cxx | 3-640426-5 | 3-640427-5 | 3-640428-5 | 3-640429-5 | 5 |
| SCT3963HIRA-06Cxx | 3-640426-6 | 3-640427-6 | 3-640428-6 | 3-640429-6 | 6 |
| SCT3963HIRA-07Cxx | 3-640426-7 | 3-640427-7 | 3-640428-7 | 3-640429-7 | 7 |
| SCT3963HIRA-08Cxx | 3-640426-8 | 3-640427-8 | 3-640428-8 | 3-640429-8 | 8 |
| SCT3963HIRA-09Cxx | 3-640426-9 | 3-640427-9 | 3-640428-9 | 3-640429-9 | 9 |
| SCT3963HIRA-10Cxx | 4-640426-0 | 4-640427-0 | 4-640428-0 | 4-640429-0 | 10 |
| SCT3963HIRA-11Cxx | 4-640426-1 | 4-640427-1 | 4-640428-1 | 4-640429-1 | 11 |
| SCT3963HIRA-12Cxx | 4-640426-2 | 4-640427-2 | 4-640428-2 | 4-640429-2 | 12 |
| SCT3963HIRA-13Cxx | 4-640426-3 | 4-640427-3 | 4-640428-3 | 4-640429-3 | 13 |
| SCT3963HIRA-14Cxx | 4-640426-4 | 4-640427-4 | 4-640428-4 | 4-640429-4 | 14 |
| SCT3963HIRA-15Cxx | 4-640426-5 | 4-640427-5 | 4-640428-5 | 4-640429-5 | 15 |
| SCT3963HIRA-16Cxx | 4-640426-6 | 4-640427-6 | 4-640428-6 | 4-640429-6 | 16 |
| SCT3963HIRA-17Cxx | 4-640426-7 | 4-640427-7 | 4-640428-7 | 4-640429-7 | 17 |
| SCT3963HIRA-18Cxx | 4-640426-8 | 4-640427-8 | 4-640428-8 | 4-640429-8 | 18 |
| – | 4-640426-9 | 4-640427-9 | 4-640428-9 | 4-640429-9 | 19 |
| – | 5-640426-0 | 5-640427-0 | 5-640428-0 | 5-640429-0 | 20 |
| – | 5-640426-1 | 5-640427-1 | 5-640428-1 | 5-640429-1 | 21 |
| – | 5-640426-2 | 5-640427-2 | 5-640428-2 | 5-640429-2 | 22 |
| – | 5-640426-3 | 5-640427-3 | 5-640428-3 | 5-640429-3 | 23 |
| – | 5-640426-4 | 5-640427-4 | 5-640428-4 | 5-640429-4 | 24 |
| SCONDAR P/N | TE P/N | TE P/N | TE P/N | TE P/N | Circuits |
|---|---|---|---|---|---|
| SCT3963HIRA-02Cxx | 3-640430-2 | 3-640472-2 | 3-640473-2 | 3-640474-2 | 2 |
| SCT3963HIRA-03Cxx | 3-640430-3 | 3-640472-3 | 3-640473-3 | 3-640474-3 | 3 |
| SCT3963HIRA-04Cxx | 3-640430-4 | 3-640472-4 | 3-640473-4 | 3-640474-4 | 4 |
| SCT3963HIRA-05Cxx | 3-640430-5 | 3-640472-5 | 3-640473-5 | 3-640474-5 | 5 |
| SCT3963HIRA-06Cxx | 3-640430-6 | 3-640472-6 | 3-640473-6 | 3-640474-6 | 6 |
| SCT3963HIRA-07Cxx | 3-640430-7 | 3-640472-7 | 3-640473-7 | 3-640474-7 | 7 |
| SCT3963HIRA-08Cxx | 3-640430-8 | 3-640472-8 | 3-640473-8 | 3-640474-8 | 8 |
| SCT3963HIRA-09Cxx | 3-640430-9 | 3-640472-9 | 3-640473-9 | 3-640474-9 | 9 |
| SCT3963HIRA-10Cxx | 4-640430-0 | 4-640472-0 | 4-640473-0 | 4-640474-0 | 10 |
| SCT3963HIRA-11Cxx | 4-640430-1 | 4-640472-1 | 4-640473-1 | 4-640474-1 | 11 |
| SCT3963HIRA-12Cxx | 4-640430-2 | 4-640472-2 | 4-640473-2 | 4-640474-2 | 12 |
| SCT3963HIRA-13Cxx | 4-640430-3 | 4-640472-3 | 4-640473-3 | 4-640474-3 | 13 |
| SCT3963HIRA-14Cxx | 4-640430-4 | 4-640472-4 | 4-640473-4 | 4-640474-4 | 14 |
| SCT3963HIRA-15Cxx | 4-640430-5 | 4-640472-5 | 4-640473-5 | 4-640474-5 | 15 |
| SCT3963HIRA-16Cxx | 4-640430-6 | 4-640472-6 | 4-640473-6 | 4-640474-6 | 16 |
| SCT3963HIRA-17Cxx | 4-640430-7 | 4-640472-7 | 4-640473-7 | 4-640474-7 | 17 |
| SCT3963HIRA-18Cxx | 4-640430-8 | 4-640472-8 | 4-640473-8 | 4-640474-8 | 18 |
| – | 4-640430-9 | 4-640472-9 | 4-640473-9 | 4-640474-9 | 19 |
| – | 5-640430-0 | 5-640472-0 | 5-640473-0 | 5-640474-0 | 20 |
| – | 5-640430-1 | 5-640472-1 | 5-640473-1 | 5-640474-1 | 21 |
| – | 5-640430-2 | 5-640472-2 | 5-640473-2 | 5-640474-2 | 22 |
| – | 5-640430-3 | 5-640472-3 | 5-640473-3 | 5-640474-3 | 23 |
| – | 5-640430-4 | 5-640472-4 | 5-640473-4 | 5-640474-4 | 24 |
