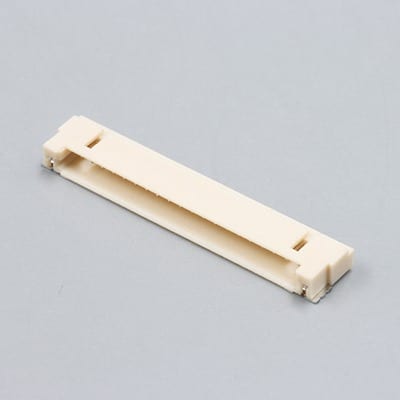

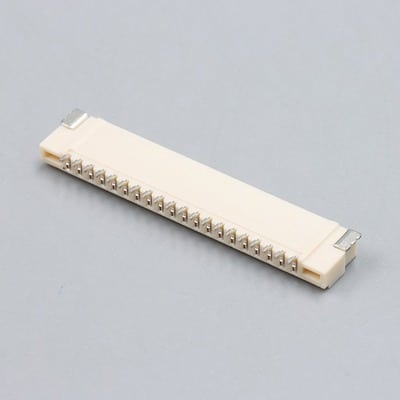

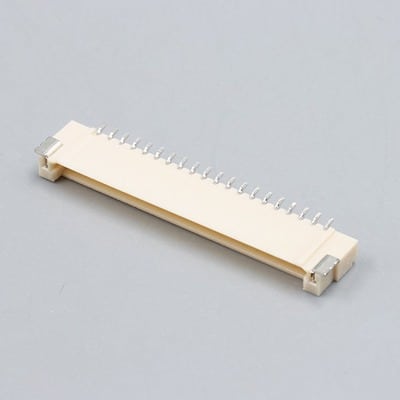

SCT1253WRSF
Specification
| Part Name | SMD Right-Angle Header with Boss |
| Pitch | 1.25mm |
| Series | SCT1253 |
| Compatible | DF14-xxP-1.25H(22) Series |
Part No. Cross Reference
| SCONDAR P/N | Hirose P/N | Hirose P/N | Hirose P/N | Hirose P/N | Circuits |
|---|---|---|---|---|---|
| SCT1253WRSF-02ExWT101 | DF14-2P-1.25H(22) | CL0538-0021-4-22 | DF14-2P-1.25H(35) | CL0538-0021-4-35 | 2 |
| SCT1253WRSF-03ExWT101 | DF14-3P-1.25H(22) | CL0538-0022-7-22 | DF14-3P-1.25H(35) | CL0538-0035-7-35 | 3 |
| SCT1253WRSF-04ExWT101 | DF14-4P-1.25H(22) | CL0538-0023-0-22 | DF14-4P-1.25H(35) | CL0538-0023-0-35 | 4 |
| SCT1253WRSF-05ExWT101 | DF14-5P-1.25H(22) | CL0538-0024-2-22 | DF14-5P-1.25H(35) | CL0538-0024-2-35 | 5 |
| SCT1253WRSF-06ExWT101 | DF14-6P-1.25H(22) | CL0538-0025-5-22 | DF14-6P-1.25H(35) | CL0538-0025-5-35 | 6 |
| SCT1253WRSF-07ExWT101 | DF14-7P-1.25H(22) | CL0538-0026-8-22 | DF14-7P-1.25H(35) | CL0538-0026-8-35 | 7 |
| SCT1253WRSF-08ExWT101 | DF14-8P-1.25H(22) | CL0538-0027-0-22 | DF14-8P-1.25H(35) | CL0538-0027-0-35 | 8 |
| SCT1253WRSF-09ExWT101 | DF14-9P-1.25H(22) | CL0538-0028-3-22 | DF14-9P-1.25H(35) | CL0538-0028-3-35 | 9 |
| SCT1253WRSF-10ExWT101 | DF14-10P-1.25H(22) | CL0538-0029-6-22 | DF14-10P-1.25H(35) | CL0538-0029-6-35 | 10 |
| SCT1253WRSF-11ExWT101 | DF14-11P-1.25H(22) | – | DF14-11P-1.25H(35) | – | 11 |
| SCT1253WRSF-12ExWT101 | DF14-12P-1.25H(22) | – | DF14-12P-1.25H(35) | – | 12 |
| SCT1253WRSF-13ExWT101 | DF14-13P-1.25H(22) | – | DF14-13P-1.25H(35) | – | 13 |
| SCT1253WRSF-14ExWT101 | DF14-14P-1.25H(22) | – | DF14-14P-1.25H(35) | – | 14 |
| SCT1253WRSF-15ExWT101 | DF14-15P-1.25H(22) | CL0538-0084-4-22 | DF14-15P-1.25H(35) | CL0538-0084-4-35 | 15 |
| SCT1253WRSF-20ExWT101 | DF14-20P-1.25H(22) | CL0538-0089-8-22 | DF14-20P-1.25H(35) | CL0538-0089-8-35 | 20 |
| SCT1253WRSF-25ExWT101 | DF14-25P-1.25H(22) | CL0538-0094-8-22 | DF14-25P-1.25H(35) | CL0538-0094-8-35 | 25 |
| SCT1253WRSF-30ExWT101 | DF14-30P-1.25H(22) | CL0538-0020-1-22 | DF14-30P-1.25H(35) | CL0538-0020-1-35 | 30 |
