AMP 171822 2.54mm Pitch Connectors

SCT2545 Series

SCT2545 Series connectors are replaced of AMP 171822 2.54mm Pitch Connectors.

Specification

Series SCT2545 Series
Contact Pitch 2.54mm
No.of Contacts 2, 4 positions
Current 3A (AWG #20 to #26)
Compatible Cross AMP 171822 Connector Series

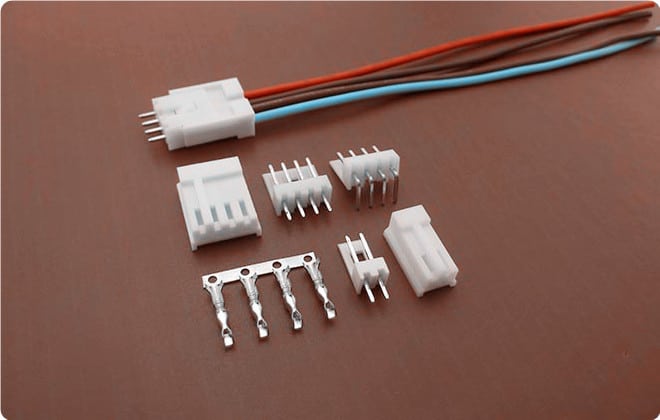

SCT2545 SERIES CONNECTORS

Items Part No. Photo Spec.
Housing SCT2545H-xxBWT102 Drawing
Terminal SCT2545TPS102 Drawing
Vertical Header SCT2545WV-xxB0WT102 Drawing
Right-angle Header SCT2545WR-xxB0WT102 Drawing
Current Rating: 3A
Voltage Rating: 250V
Temperature Range: -25°C~+85°C
Contact Resistance: 20m Omega Max
Insulation Resistance: 1000M Omega Min
Withstanding Voltage: 1000V AC/minute
