SCT-CPT017L200
Specification
| Name | 8-Pin to Dual 8-Pin (6+2) GPU Power Splitter Cable |
| Application | GPU / Graphics Card / PCIe Power Supply |
| Length | 200mm |
| Weight | 45g |

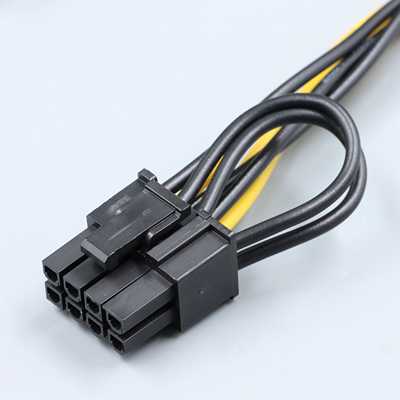

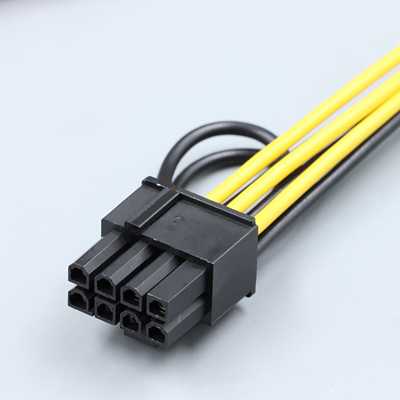

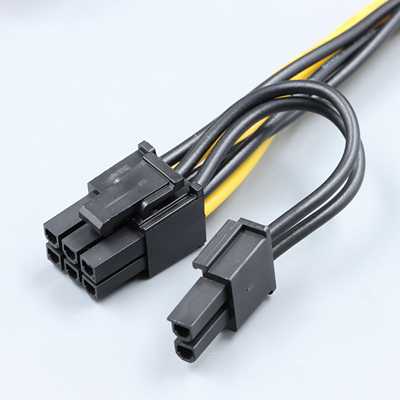

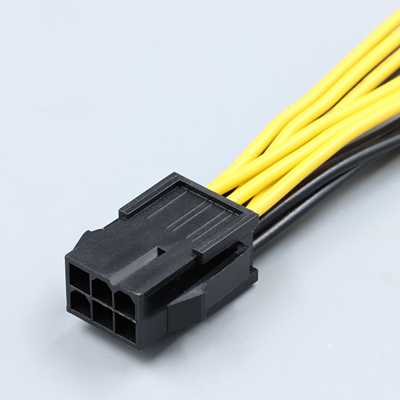

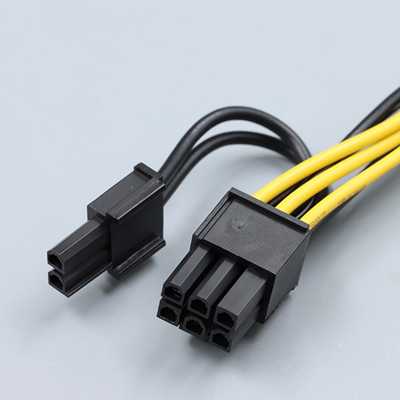

8-Pin Female to Dual 6+2-Pin Male GPU Power Cable – 20cm PCIe Splitter for Graphics Card Power Expansion
This 8-pin female to dual 6+2-pin male PCIe splitter cable is a high-efficiency solution for expanding power delivery to your graphics cards from a single PSU connector. Designed for performance-driven systems, this adapter allows you to power two GPUs or multi-input graphics cards using just one 8-pin output, making it ideal for high-end builds, mining rigs, and workstation environments.
Technical Specifications
Cable Length: 20cm
Wire Gauge: UL1007 18AWG
Conductor Material: Tinned Copper (41 strands x 0.16mm for flexibility and current stability)
Connectors:
Input: 8-pin PCIe Female
Output: Two 6+2-pin PCIe Male
Weight: 45g
Jacket Type: Durable PVC insulation with clean black finish
Key Features
Dual 6+2 Pin Output Design: Compatible with all standard and modular GPUs requiring 6-pin or 8-pin (6+2) connectors
Heavy-duty Tinned Copper Wires: Ensures excellent conductivity and long-term thermal stability
Compact Length: Ideal for clean cable routing inside tight PC cases
Flexible Deployment: Perfect for use with gaming PCs, render farms, AI workstations, and cryptocurrency mining rigs
Typical Applications
Connecting dual GPUs to a single 8-pin PCIe output
Supporting high-wattage graphics cards like NVIDIA RTX and AMD RX series
Adapting PSU configurations in custom or prebuilt systems
Enhancing airflow and power routing in compact enclosures
