SCT1010 Series
SCT1010 series are replacement of JST NSH Series 1.0mm pitch wire to board connectors. With safety locking device, low insertion force, easier assembly.
Specification
| Series | SCT1010 Series |
|---|---|
| Contact Pitch | 1.0mm |
| No.of Contacts | 2 to 20 positions |
| Current | 1.0A ((AWG #28 to #32)) |
| Compatible | JST NSH 1.0mm Connector |
Previous
Next
Select Components
Housing

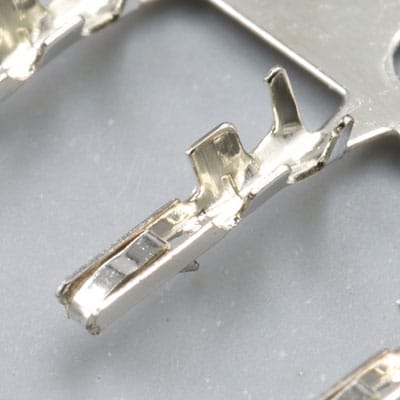

Terminal
SMD Vertical Header
SMD Right-Angle Header
Cable Assemblies Refer
| Current Rating: | 1A |
| Voltage Rating: | 50V |
| Temperature Range: | -25°C~+85°C |
| Contact Resistance: | 20m Omega Max |
| Insulation Resistance: | 100M Omega Min |
| Withstanding Voltage: | 500V AC/minute |
