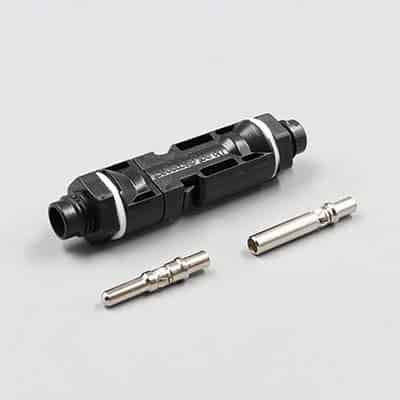

Panel Mount Connector 1000V 50A

SCTPZ-V150202641

Solar panel mount connector for connection to inverters, junction boxes. With closed barrel crimp contact, can withstand higher current. Mount directly by turning the bottom thread or use together with the nut. Alternative to MC4 bulkhead connector.

Specification

Series SCTPZ-V150202641
Rated Voltage 1000V
Rated Current 50A
Wiring Specification 2.5mm², 4mm², 6mm²

General Specification

Rated Voltage
1000V
Insulation Material
PPO
Conductor Material
Copper Tin Plating
Ambient Temperature
-40℃~ +95℃
Product Temperature Resistance
-40℃~ +135℃
Safety Level
DCII
Waterproof Grade
IP68
Contact Resistance
<=0.5mΩ
Connecting Systems
Multipoint Connections
Self Locking System
Embedded
Wiring Mode
Crimping
Wiring Specification
2.5mm², 4mm², 6mm²
Rated Current
50A(4mm²~6mm²)
Flame Retardant Grade
UL94-V0
Plastic Unmarked Tolerance
±0.5
Terminal Unmarked Tolerance
±0.2

Molex Disk Drive Power Connector 5.08mm Pitch

SCT5083 Series is Scondar’s Line of Reliable 5.08mm Pitch Wire-to-Wire Connectors Likened to the Molex Brand

Scondar offers SCT5083 Series, a replacement and cheaper alternative of the Molex 8981 (5.08mm pitch) wire-to-wire connector. Scondar SCT5083 comes in a complete package: The male housing, female/receptacle housing, female and male terminal, all manufactured with precision-fitting and durability ensuring accurate mating.

The Molex 8981 series is famed and often used for disk drive power applications such as hard disk, CD/DVD, Zip and other removable media drives. This connector is available in 2-4 positions, delivering 5.0A for AWG #16-24.

The components are designed to withstand high temperature of IR soldering process and vibrations with its housing made from high temperature material.

Features

Molded dimple for ease of mating and orientation identification

WIth a molded dimple, Scondar can offer reliable mating of connections. The dimple will serve as a visible mating guidance for its ease of assembly, and will prevent connection misorientation.

Spring-Type Mounting Ears

An optional snap-in mounting ears enables the connector to be configured to panel-mounted, feed-through types of connections.

Reliable Polarization Feature and Easy Harness Assembly

The 5.08mm pitch wire connector also offers harness design options for design flexibility according to your needs, and features Easy Harness Assembly to reduce time and cost during installation.

Color-coded housings and terminals

With options for color coding, you can easily identify and manage the connections when color matching of housing and wires are done. This can significantly help for easy installation and easy cable management.

Most HVAC applications typically utilize similarly-configured wire-to-wire connectors. With color coding, incorrect connector insertion and mismating can be prevented.

Rugged consumer and medical application

This can be used to applications subject to shock, vibration or rough handling that can dislodge terminals and cause signal interference.

Friction and positive-lock options

Built with friction and positive lock options, this connector provides high-retention force for a reliable connection in rugged environments.

Reliable TPA Feature

The variety of Terminal Position Assurance (TPA) types, not only facilitates correct mating, but also gives the insurance that terminals are fully locked in the correct position.

High Current Carrying Capabilities

The support for high voltage and current (300V/15A) features a more robust build than blanked terminals.

Accept both male and female terminals

The housing will accept both male and female terminals, and are polarized to eliminate and prevent mismating.

Facilitates heat dissipation and low engagement force

The different wire-to-wire connector types are equipped with RMF solutions for lower friction solution between the contacts, making insertion and removal of the device easier, while eliminating the need for complex mechanisms.

Applications

Automotive and Commercial Vehicle

  • Mechanical Chassis Optimization
  • Thermal Management
  • Thermal Simulation

Consumer

  • Air conditioner
  • Air purifier / dehumidifier
  • Copiers
  • Printers
  • Refrigerator
  • Washing Machine
  • Printed Electronics Design and Development
  • Printed Electronic Inks
  • Printed Electronic Substrates
  • Printed Electronics Manufacturing
  • Magnesium Thixomolding Capability

Appliances

  • Thermal Management
  • Thermal Simulation
  • RF Microwave Solutions
  • RF/Microwave Production Capabilities
  • Fitness Equipment
  • Microwave oven
  • Washing machine

Industrial

  • Copiers
  • Printers
  • Desktop computer and motherboard
  • Hard disk drive

Medical

  • Telecommunications
  • High-Speed Channel Design
  • Signal Integrity Analysis

Material and Packaging of Molex 5.08mm Pitch Wire-to-Wire Connector

Using a UV-Resistant Thermoplastic Material for Enhanced Connector Performance

The housing components are injection molded Nylon66,UL 94V-0. These are scientifically proven to resist UV-radiation than normal plastic, making sure the connectors are well-protected, reducing risk for early degradation and increased cycles/minute of the connector subjected to harsh environments.

Tape and Reel Packaging for SMT Components

Scondar uses a state-of-the-art tape and reel equipment to package a variety of components.

The tape and reel packaging strip has accurately sized cavities for the terminal height, width and depth, secured tightly, maintaining consistent position during transportation.

You can expect that your wire-to-wire connector package is undisturbed during the trip and has maintained its vitality even during your production stages, which is why a lot of our customers has raved about our product for both cheaply-priced and, at the same time, resembles the Molex 5.08mm pitch wire-to-wire product with an industry standard .093” pin and socket in performance and quality.

The complete package will include the following:

Female terminal: 10,000 pcs/reel, brass material and tin-plated finish
Male terminal: 10,000 pcs/reel, brass material and tin-plated finish
Female Housing (Nylon 66, UL94V-0 500): 1000pcs/bag
Male Housing (Nylon 66, UL94V-0 500): 1000pcs/bag
