1.25mm Pitch Connectors

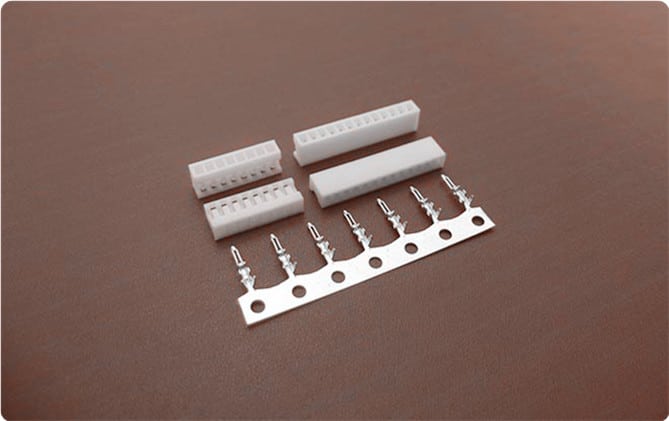

SCT1259 Series

SCT1259 are compatible with Molex 51022 series Board-in connectors.

Specification

Series SCT1259 Series
Contact Pitch 1.25mm
No.of Contacts 2 to 15 positions
Current 2A (AWG #28 to #32)
Compitable Cross Molex 51022 Series
Item Spec.
Part No. SCT1259
Compatible: Molex 51022 series connector
Pitch - Mating Interface 1.25mm
Circuits 2-15
Applicable wire: AWG#28-#32 (Max.OD:1.0mm)
Current Rating: 2A
Voltage Rating: 250V
Temperature Range: -25°C~+85°C
Contact Resistance: 20m Omega Max
Insulation Resistance: 100M Omega Min
Withstanding Voltage: 800V AC/minute
