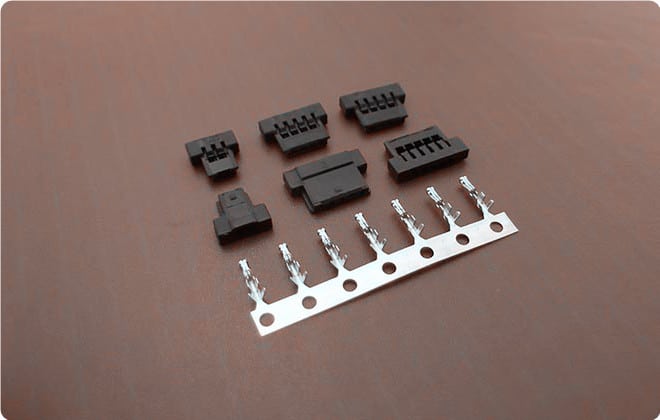

SCT1255 Series
SCT1255 Series are compatible with JAE FI-S series connector. Compact 1.25mm pitch wire to board connector designed for slim devices requiring secure internal connections.
Specification
| Series | SCT1255 Series |
|---|---|
| Contact Pitch | 1.25mm |
| No.of Contacts | 2 to 16 positions |
| Current | 1A (AWG #28 to #32) |
| Compatible | Cross JAE FI-S Connector Series |
Select Components
| Part No. | SCT1255 |
| Compatible: | JAE FI-S series connector |
| Pitch – Mating Interface | 1.25mm |
| Circuits | 2-16 |
| Applicable wire: | AWG#28-#32 (Max.OD:1.0mm) |
| Current Rating: | 1A |
| Voltage Rating: | 200V |
| Temperature Range: | -25°C~+85°C |
| Contact Resistance: | 40m Omega Max |
| Insulation Resistance: | 100M Omega Min |
| Withstanding Voltage: | 500V AC/minute |
JAE FI-S Series – 1.25mm Pitch Board-to-Cable Connector for Slim Internal Connections
The FI-S Series from JAE is a space-efficient, board-to-cable connector system designed specifically for internal connections in compact electronic devices. With its low-profile surface mount design and secure crimp plug, it offers both miniaturization and high reliability in internal wiring applications.
Key Features
Compact 1.25mm Pitch
Ideal for internal wiring of small and slim devices.
Single-row type optimized for ultra-thin applications.
Low-profile Board-Mount Receptacle
Surface mount type with only 1.8mm mounting height.
SMT terminal spacing: 1.25mm.
Stable Mounting and Assembly
Receptacle equipped with hold-down tabs to prevent float during reflow soldering.
Improves mechanical retention to the PCB.
Reliable Wire-to-Board Connection
Crimp-style plug for discrete wire termination.
Keying mechanism prevents mismating.
Friction lock ensures secure engagement.
Automation Friendly
Receptacles supplied in embossed tape for automated pick-and-place mounting.
Typical Applications
Digital cameras
Portable medical devices
Smart meters
Compact sensors and modules
Wearable electronics
Embedded control units
Advantages
Ultra-low profile design saves valuable board space.
Secure mating features reduce risk of connection failure.
SMT compatibility supports high-speed, automated assembly.
Keyed and locked to ensure user-friendly, error-free mating.
Ideal for thin, compact devices requiring robust internal connections.
The JAE FI-S Series is the ideal solution for engineers seeking a slim, secure, and reliable board-to-cable connection. Its space-conscious design and thoughtful features make it a trusted choice in today’s compact electronics.
