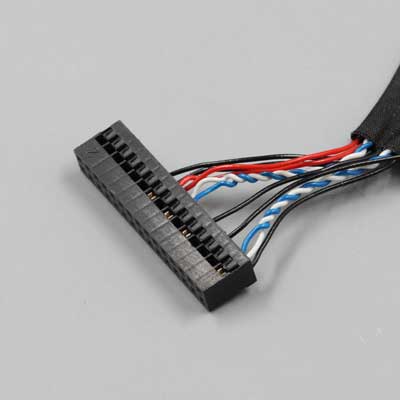

Dupont 2.0mm Pitch Connectors

Home » Wire to Board Connector » Dupont 2.0mm Pitch Connectors

SCT2015 Series

SCT2015 Series are replaced by Dupont 2.0mm pitch wire to board connectors.

Specification

Series	SCT2015 Series
Contact Pitch	2.0mm
No.of Contacts	2 to 25 22 to 225 positions
Current	1A (AWG #26 to #30)
Compatible	Cross Dupont2.0 Connector Series

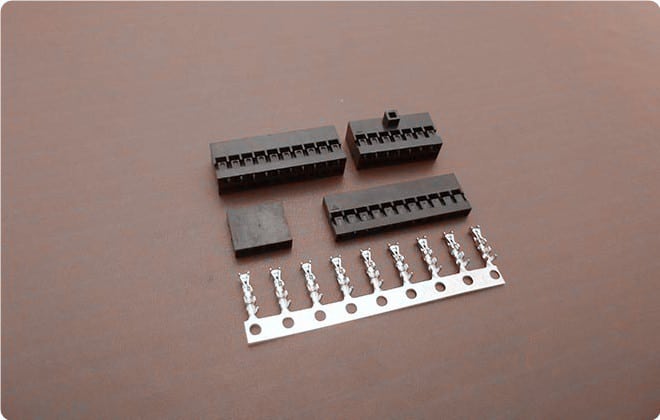

SCT2015 SERIES CONNECTORS

Items	Part No.	Spec.
Housing (single row)	SCT2015H-xxDBK116	Drawing
Housing (dual row)	SCT2015H-2xxDBK116	Drawing
Housing	SCT2015HN-2xxDBK116	Drawing
Terminal	SCT2015TPF112	Drawing

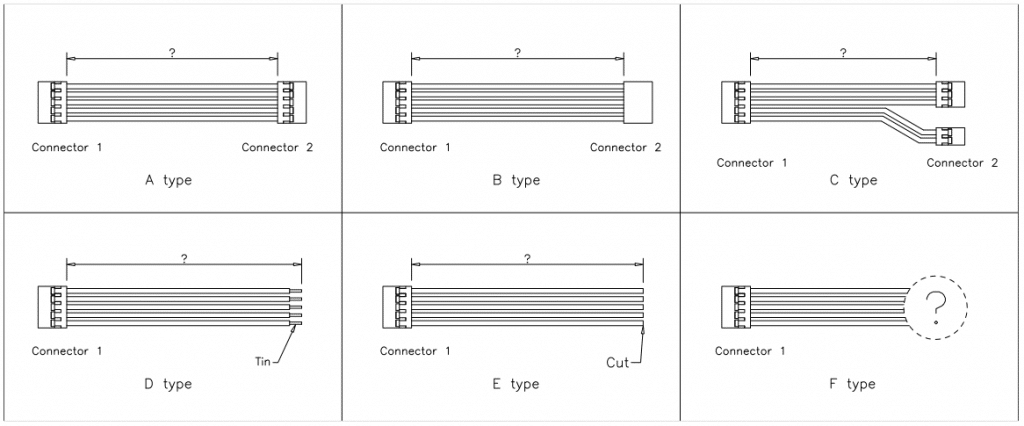

Cable Assemblies Refer

General Specification

Current Rating:	3A
Voltage Rating:	250V
Temperature Range:	-25°C~+85°C
Contact Resistance:	20m Omega Max
Insulation Resistance:	1000M Omega Min
Withstanding Voltage:	1000V AC/minute
