SCT63090 250# Connectors

SCT63090 Series

SCT63090 series connector 250# with the gold terminal, 2, 3, 4, 6 contacts.

Specification

Series SCT63090 Series
Contact Pitch 6mm, 9mm
No.of Contacts 2, 3, 4, 6 positions
Current 12A (AWG #14 to #18)
Compatible 250#
Current Rating: 12A
Voltage Rating: 250V
Temperature Range: -25°C~+85°C
Contact Resistance: 10m Omega Max
Insulation Resistance: 1000M Omega Min
Withstanding Voltage: 1500V AC/minute

250# Connector with the Gold Terminal

SCT63090 Series is Scondar’s Line of Reliable 6mm and 9mm Pitch Wire-to-Wire Connectors

Scondar offers SCT63090 Series connector #250 with the gold terminal, along with the complete package: The male housing, female/receptacle housing, female and male terminal, all manufactured with precision-fitting and durability ensuring accurate mating.

Scondar’s 6mm and 9mm Pitch connector is composed of the wide flat blade tab terminals, multi-configured modular housing and terminal position assurance inserts for modularity and design flexibility in many applications. Also, Scondar showcases other features such as positive lock and TPA secondary lock, single row system and spring style mounting ears. The SCT63090 is compatible with AWG 14-18 wire and can handle up to 12 amps and 250 volts.

Features

Superior Mating Reliability

Scondar features a molded dimple for ease of mating, orientation identification, and reliable mating of connections. The dimple will serve as a visible mating guidance to prevent connection misorientation.

Color Pairing and Matching

With options for color coding, you can easily identify and manage the connections when color matching of housing and wires are done. This can significantly help for easy installation and easy cable management.

Most HVAC applications typically utilize similarly-configured wire-to-wire connectors. With color coding, incorrect connector insertion and mismating can be prevented.

Reliable Polarization Feature and Easy Harness Assembly

The 6mm and 9mm pitch wire connector also offers harness design options for design flexibility according to your needs, and features an easy harness assembly to reduce time and cost during installation.

Reliable for Rugged Consumer Application

This can be used to applications subject to shock, vibration or rough handling that can dislodge terminals and cause signal interference.

Friction and positive-lock options

Built with friction and positive lock options, this connector provides high-retention force for a reliable connection in rugged environments.

High Current Carrying Capabilities

The support for high voltage and current (250V/12A) features a more robust build.

Reliable TPA Feature

The variety of Terminal Position Assurance (TPA) types, not only facilitates correct mating, but also gives the insurance that terminals are fully locked in the correct position.

Accept both male and female terminals

The housing will accept both male and female terminals, and are polarized to eliminate and prevent mismating.

Facilitates heat dissipation and low engagement force

The different wire-to-wire connector types are equipped with RMF solutions for lower friction solution between the contacts, making insertion and removal of the device easier, while eliminating the need for complex mechanisms.

Application

The system provides design flexibility and modularity for a variety of appliances such as White Goods/HVAC applications: refrigerators, washing machines, heating units, and ventilators.

  • Consumer
  • Air conditioner
  • Air purifier / dehumidifier
  • Copiers
  • Fitness Equipment
  • Microwave oven
  • Printers
  • Refrigerator
  • Washing Machine
  • Data/Computing
  • Copiers
  • Medical
  • Medical equipment

Material and Packaging of 250# connector with gold terminal

The housing components are injection molded Nylon66,UL 94V-0. These are scientifically proven to resist UV-radiation than normal plastic, making sure the connectors are well-protected, reducing risk for early degradation and increased cycles/minute of the connector subjected to harsh environments.

Tape and Reel Packaging for SMT Components

Scondar uses a state-of-the-art tape and reel equipment to package a variety of components.

The tape and reel packaging strip has accurately sized cavities for the terminal height, width and depth, secured tightly, maintaining consistent position during transportation.

You can expect that your wire-to-wire connector package is undisturbed during the trip and has maintained its vitality even during your production stages, which is why a lot of our customers has raved about our product for both cheaply-priced and has a quality performance.

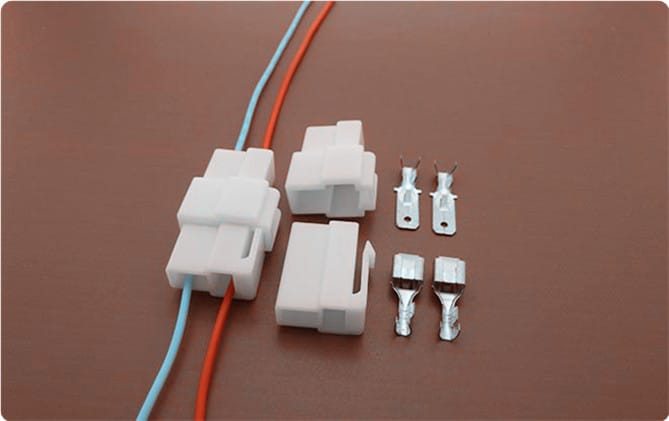

The complete package will include the following:

Female terminal: 10,000 pcs/reel, brass material and gold-plated finish
Male terminal: 10,000 pcs/reel, brass material and gold-plated finish
Female Housing (Nylon 66, UL94V-0 500): 1000pcs/bag
Male Housing (Nylon 66, UL94V-0 500): 1000pcs/bag
