FL 4.14mm Pitch Connectors

SCT4140 Series

SCT4140 Series are compatible with JST FL 4.14mm pitch series connector.

Specification

Series SCT4140 Series
Contact Pitch 4.14mm
No.of Contacts 1 to 9 positions
Current 10A (AWG #18 to #26)
Compatible Cross Jst FL Connector Series
Item Spec.
Part No. SCT4140
Compatible: JST FL series connector
Pitch - Mating Interface 4.14mm
Circuits 1-9
Applicable wire: AWG#18-#26 (Max.OD: 2.5mm)
Current Rating: 10A
Voltage Rating: 300V
Temperature Range: -25°C~+85°C
Contact Resistance: 15m Omega Max
Insulation Resistance: 1000M Omega Min
Withstanding Voltage: 1500V AC/minute

JST FL 4.14mm Pitch Wire-to-Wire Connector

SCT4140 Series is Scondar’s Line of Reliable 4.14mm Pitch Wire-to-Wire Power Connectors Likened to the JST FL Series Brands

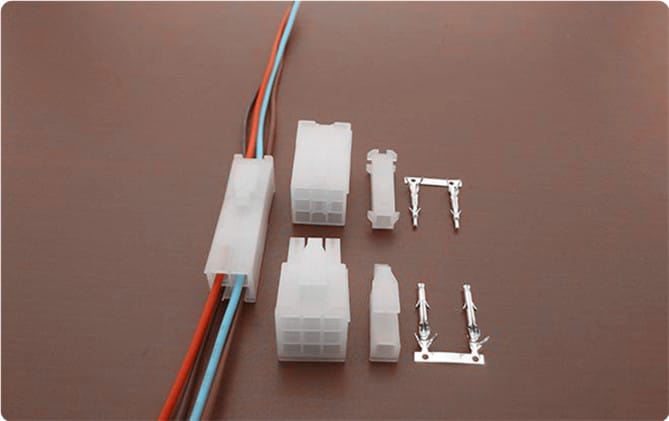

Scondar offers SCT4140 Series as a replacement and a cheaper alternative of JST FL 4.14mm pitch wire-to-wire connector in a complete package including the male housing, female/receptacle housing, female terminal and male terminal, all manufactured with precision-fitting and durability ensuring accurate mating in electronic devices.

The JST FL series is designed with a slim profile, but robust enough for industrial applications achieving maximum electrical performance with current ratings up to 10A max per contact, commonly found in household appliances, industrial controls and network systems.

Features

Wire-to-Wire and Wire-to-Panel Configurations

These wire-to-wire connectors are available in free hanging and panel mount configuration and crimped on wires.

Accommodates Both Pin and Socket

Produced with an added layer of versatility, the JST FL series can accept a combination of both pins and sockets in the same housing.

Fully Polarized Key Feature with Latching Orientation

Prevents mis-mating to facilitate assembly

Positive locking mechanism

To facilitate a secure connection without dropouts, a positive locking mechanism feature greatly enhances wire-to-wire mating connections.

Well-Designed Crimping Feature

The crimps are well engineered to be air-tight, preventing oxygen and moisture from reaching the metals, causing corrosion. Thus, the connector can be easily removed from the head without holding the wires.

Compact and Durable Design

Wrapping the connector body is a heat resistant resin allowing reflow soldering, preventing thermal shocks. The connector may also be available in either the normal or reverse configurations.

Splash Proof Design for an added layer of ruggedness

This feature is much needed for applications and fittings requiring protection and sealing.

Equipped with Reduced Mating Force (RMF) Solutions

The different wire-to-wire connector types are equipped with RMF solutions for lower friction solution between the contacts of the device and the socket, making insertion and removal of the device easier, while at the same time eliminating the need for the complex mechanisms such as in ZIF sockets.

Application

  • Vending machines
  • Medical equipment
  • Security systems
  • Industrial controls
  • HVAC equipment and other industrial/commercial
  • Household appliances
  • Indoor and outdoor lighting
  • Storage and networking systems

Material and Packaging of JST FL 4.14mm Pitch Wire-to-Wire Connector

Using a UV-Resistant Thermoplastic Material for Enhanced Connector Performance

The housing components are injection molded Nylon66,UL 94V-0. These thermoplastics are scientifically proven to resist UV-radiation than the normal plastics, ensuring that the connectors are well-protected, reducing the chances of early degradation and increased cycles/minute of the connector subjected to harsh environments.

Tape and Reel Packaging for SMT Components

Scondar uses a state-of-the-art tape and reel equipment to package a variety of components.

The tape and reel packaging strip has accurately sized cavities for the terminal height, width and depth, securing the them from the environment and maintaining consistent position during transportation.

You can expect that your wire-to-wire connector package is undisturbed during the trip and has maintained its vitality even during your production stages, which is why a lot of our customers has raved about our product for both cheaply-priced and, at the same time, resembles the JST FL 4.14mm pitch wire-to-wire product in performance and quality.

The complete package will include the following:

Female terminal: 10,000 pcs/reel, brass material and tin-plated finish
Male terminal: 10,000 pcs/reel, brass material and tin-plated finish
Female Housing (Nylon 66, UL94V-0 500): 1000pcs/bag
Male Housing (Nylon 66, UL94V-0 500): 1000pcs/bag
