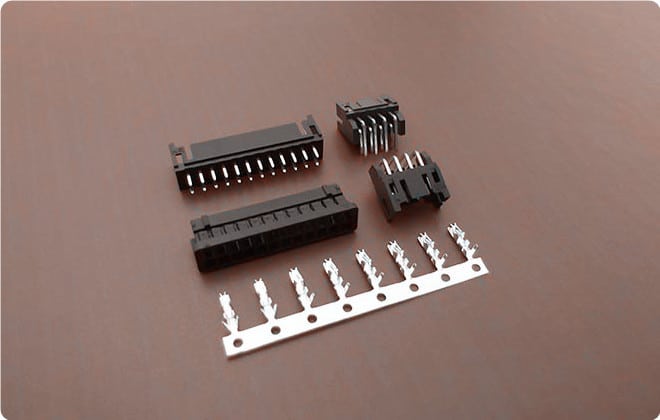

SCT2011 Series
SCT2011 Series are replaced by Hirose DF11 2.0mm pitch series wire to board connectors.
Specification
| Series | SCT2011 Series |
|---|---|
| Contact Pitch | 2.0mm |
| No.of Contacts | 2*2 to 2*15 positions |
| Current | 2A (AWG #22 to #28) |
| Compatible | Cross Hirose DF11 Connector Series |
SCT2011 SERIES CONNECTORS
| Items | Part No. | Photo | Spec. |
|---|---|---|---|
| Housing | SCT2011H-2xxBBK107 | Drawing | |
| Terminal | SCT2011TPS107 | Drawing | |
| Vertical Socket | SCT2011WV-2xxB0BK107 | Drawing | |
| SMD Vertical Socket | SCT2011WV-S-F-2xXXP | Drawing | |
| SMD Vertical Socket | SCT2011WVA-S-2xXXP | Drawing | |
| SMD Vertical Socket | SCT2011WVA-S-F-2xXXP | Drawing | |
| Right-angle Socket | SCT2011WR-2xXXP | Drawing |
Cable Assemblies Refer
| Current Rating: | 3A |
| Voltage Rating: | 250V |
| Temperature Range: | -25°C~+85°C |
| Contact Resistance: | 20m Omega Max |
| Insulation Resistance: | 1000M Omega Min |
| Withstanding Voltage: | 1000V AC/minute |
