2.54mm RC Drone Servo Extension Wire Harness: Custom Futaba/JR 3P Twisted Cable Assembly
In the fields of remote control (RC) models, drones, and robotics, the quality and precise customization of servo wire harnesses directly impact the stability and response speed of flight and steering systems. We specialize in providing high-quality 2.54mm pitch RC servo extension wire harness customization services that are fully compatible with Futaba and JR standards.
Servo Harnesses: Core Requirements and Specifications (2.54mm)
The servo wire is critical for connecting receivers to servos, ESCs (Electronic Speed Controllers), and other control units. Its core requirement is strong anti-interference capability and stable signal transmission.
-
2.54mm Pitch: This is the standard spacing for servo plugs and sockets, ensuring compatibility with most RC receivers and flight control boards on the market.
-
3P Core Configuration: The standard servo cable configuration is 3 cores, typically consisting of: Power (VCC, Red), Ground (GND, Black/Brown), and Signal (Signal, White/Yellow/Orange).
-
Futaba and JR Standards:
-
Futaba Compatible: Plug shape and wiring sequence are compatible with Futaba receivers.
-
JR Compatible: Plug shape and wiring sequence are compatible with JR receivers. Strict adherence to the customer’s required standard is essential during customization, as the wiring order (especially for signal and power) can differ slightly between JR and Futaba.
-
Twisted Cable Design: Enhancing Signal Anti-Interference
To cope with the complex electromagnetic environment of RC models and drones, the anti-interference ability of the wire harness is paramount.
-

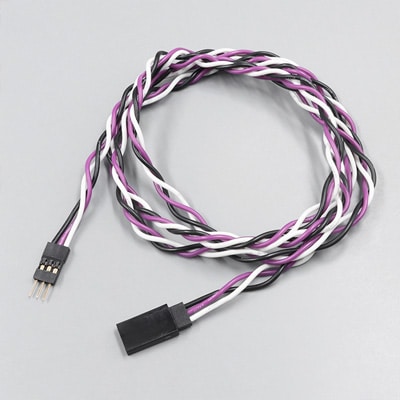

Twisted Core Wires: We utilize a twisted core wire design, where the three core wires are twisted together. This design effectively cancels out electromagnetic interference (EMI), reduces signal attenuation, and ensures accurate and fast transmission of control signals, which is particularly suitable for long extension cables.
-
Custom Lengths and Plug Types: We offer customization for various extension cable lengths, as well as processing for male (Plug) and female (Socket) connectors, facilitating easy device connection and expansion.
Factory Advantages: Professional Customization and Multi-Type Compatibility
As a professional wire harness processing factory, our strengths lie in comprehensive compatibility and high-standard production processes:
-
Fully Automated Precision Processing: We utilize automated equipment for terminal crimping and wire processing to ensure every servo extension cable meets consistent quality and electrical stability.
-
Compatibility with Various Connectors: Our processing capabilities cover a wide range, not limited to RC servo wires, but also including SM2.54, high-current XT series, and various Dupont ribbon cables. We offer processing customization and wholesale for various connector wire harnesses.
-
Free Sample Production: We offer free sample services to support customized batch production, including different colors (such as red, blue, black, white, purple) and various wire gauges.
Contact us today to customize your 2.54mm Futaba/JR servo extension wire harnesses and ensure the most stable and reliable signal connection for your drones and RC models!
