SCT2035 Series
Технические характеристики
| Серия | SCT2035 Series |
|---|---|
| Контактная площадка | 2,0 мм |
| Количество контактов | 2*4, 2*6, 2*8, 2*10, 2*12 positions |
| Текущий | 3A (AWG #20 - #24) |
| Совместимость | Cross JST CPT Connector Series |
Выберите компоненты
| Текущий рейтинг: | 3A |
| Номинальное напряжение: | 50V |
| Диапазон температур: | -40°C~+120°C |
| Сопротивление контактов: | 16m Omega Max |
| Сопротивление изоляции: | 100M Omega Min |
| Выдерживаемое напряжение: | 1000 В переменного тока в минуту |
A Low-Profile, Miniaturized PCB Connector Designed for Automotive Applications
As automotive electronics continue to evolve toward higher integration, reduced size, and improved reliability, conventional board-to-wire connectors increasingly face limitations in height, structure, and mounting efficiency.
Сайт JST CPT Series 2.0mm Pitch Wire-to-Board Connector was developed specifically to meet these challenges, offering a low-profile, surface-mount solution optimized for automotive PC board applications.
Design Concept: Optimized for Automotive Miniaturization
The CPT series achieves significant miniaturization and a low-profile form factor with a 2.0mm pitch, while maintaining reliable electrical and mechanical performance required in automotive environments.
Unlike conventional connector designs that incorporate spring elements on the female terminal, the CPT series introduces a spring structure on the male terminal, breaking traditional design concepts. This innovative approach enables a more compact structure and enhances contact stability under vibration and thermal stress.
Компактный дизайн
2.0mm pitch enables miniaturization and low-profile construction
Ideal for space-constrained automotive PCB layouts
Contributes to reduced module height and greater design flexibility
Innovative Terminal Construction
Spring structure integrated into the male terminal

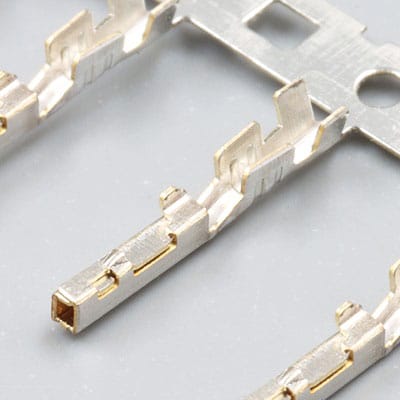

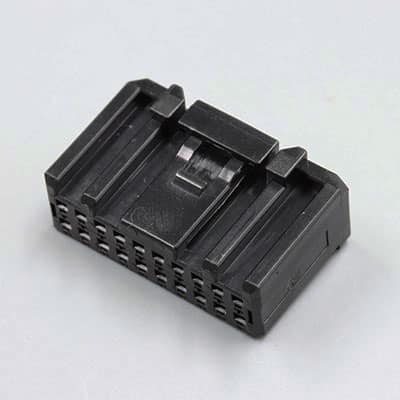

Female terminal adopts a simple box-type structure
Reduced structural complexity and improved assembly consistency
Stable electrical contact under vibration and repeated insertion

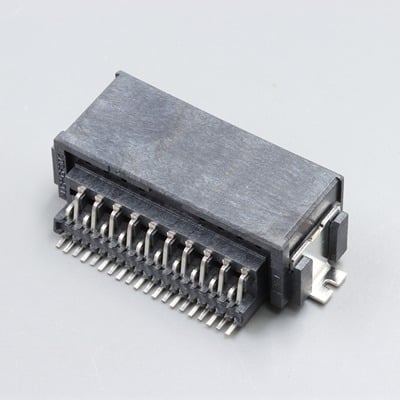

Surface-Mount Type Configuration
Designed for SMT reflow soldering processes
Compatible with automated assembly lines
Supports high-volume automotive electronics production
These specifications ensure stable electrical performance even under harsh automotive conditions, including temperature cycling, vibration, and long-term current load.
Low-profile and compact structure suitable for high-density PCB designs
Spring-on-male terminal design enhances contact reliability
Simplified female terminal structure improves manufacturing consistency
SMT mounting supports efficient automated production
Automotive-grade electrical and thermal performance

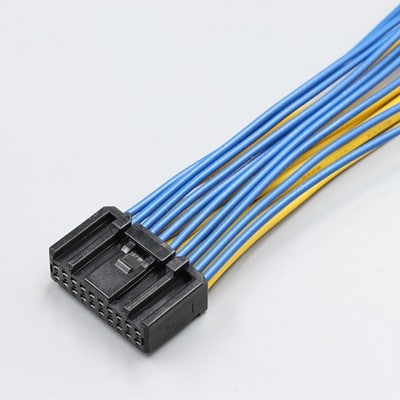

The JST CPT 2.0mm Pitch Wire-to-Board Connector is well suited for:
Automotive ECUs and control units
Vehicle sensor modules
In-vehicle display and infotainment systems
Automotive lighting and control modules
PCB wire-to-board connections with strict height limitations
Сайт JST CPT 2.0mm Pitch Wire-to-Board Connector is more than a smaller connector—it represents a structural innovation designed specifically for modern automotive electronics. By combining miniaturization, a low-profile design, and a reengineered terminal structure, it provides a reliable and efficient connection solution for demanding automotive applications.
