50A-NPBS

FFC/FPC Connector,SMT (Surface Mount), Right-angle, Top Contact Style, ZIF Receptacle

Series0.50mm A Type Series
Contact Pitch0.50mm
No.of Contacts04 to 60 positions
Height2.00mm
PackageReel,Tube

Specification

Voltage Rating:50V AC/DC
Current Rating:0.5A AC/DC
Withstand voltage:500V
Contact resistance:30mΩ MAX
Insulation resistance:500MΩ MIN
Working temperature:-25℃~+85℃
Applicable FPC/FFC:0.50mm
MATERIAL
Housing:LCP UL94-V0
Contact:Phosphor bronze Tin-plated

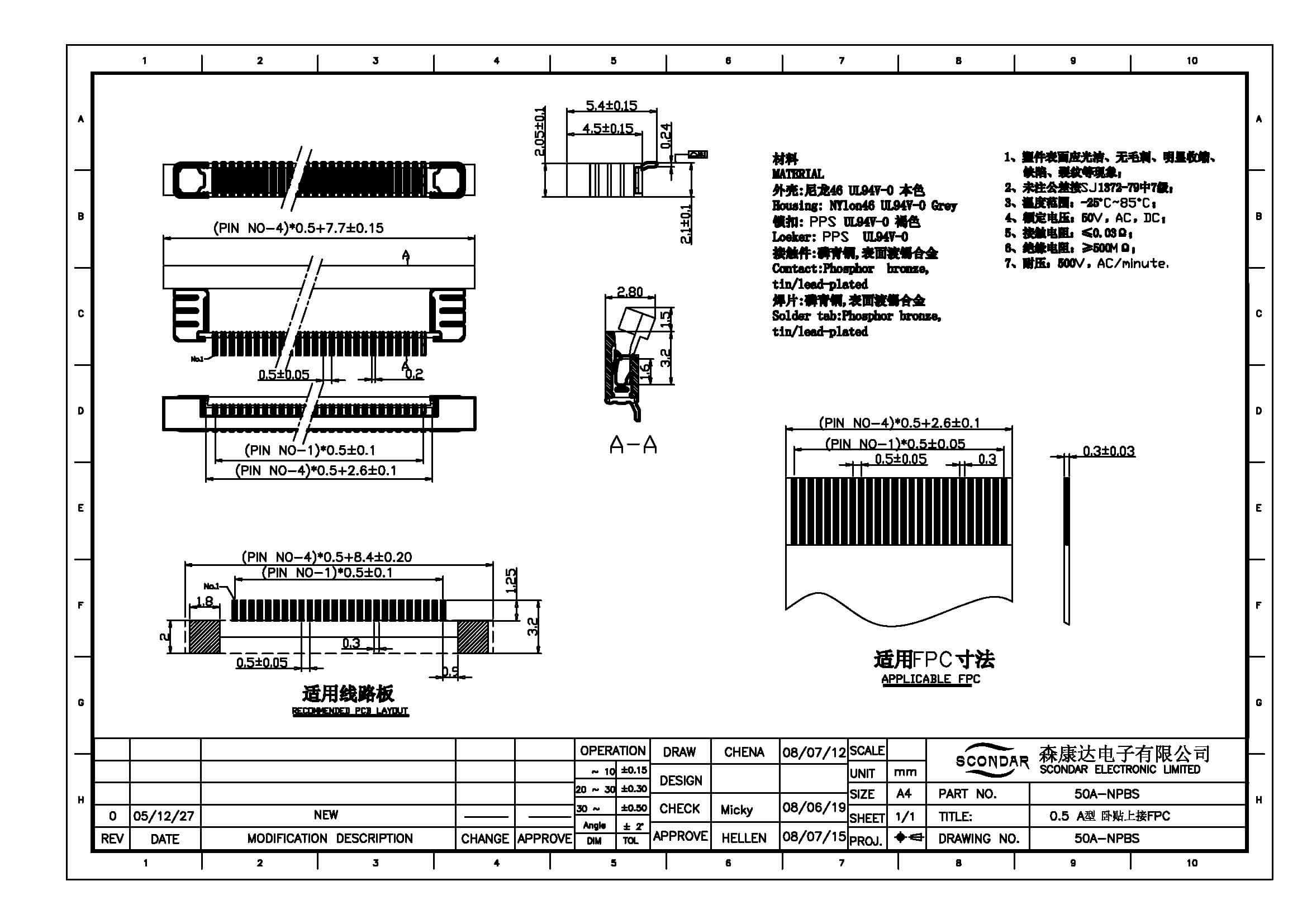

Drawing

Part No.

FPC
